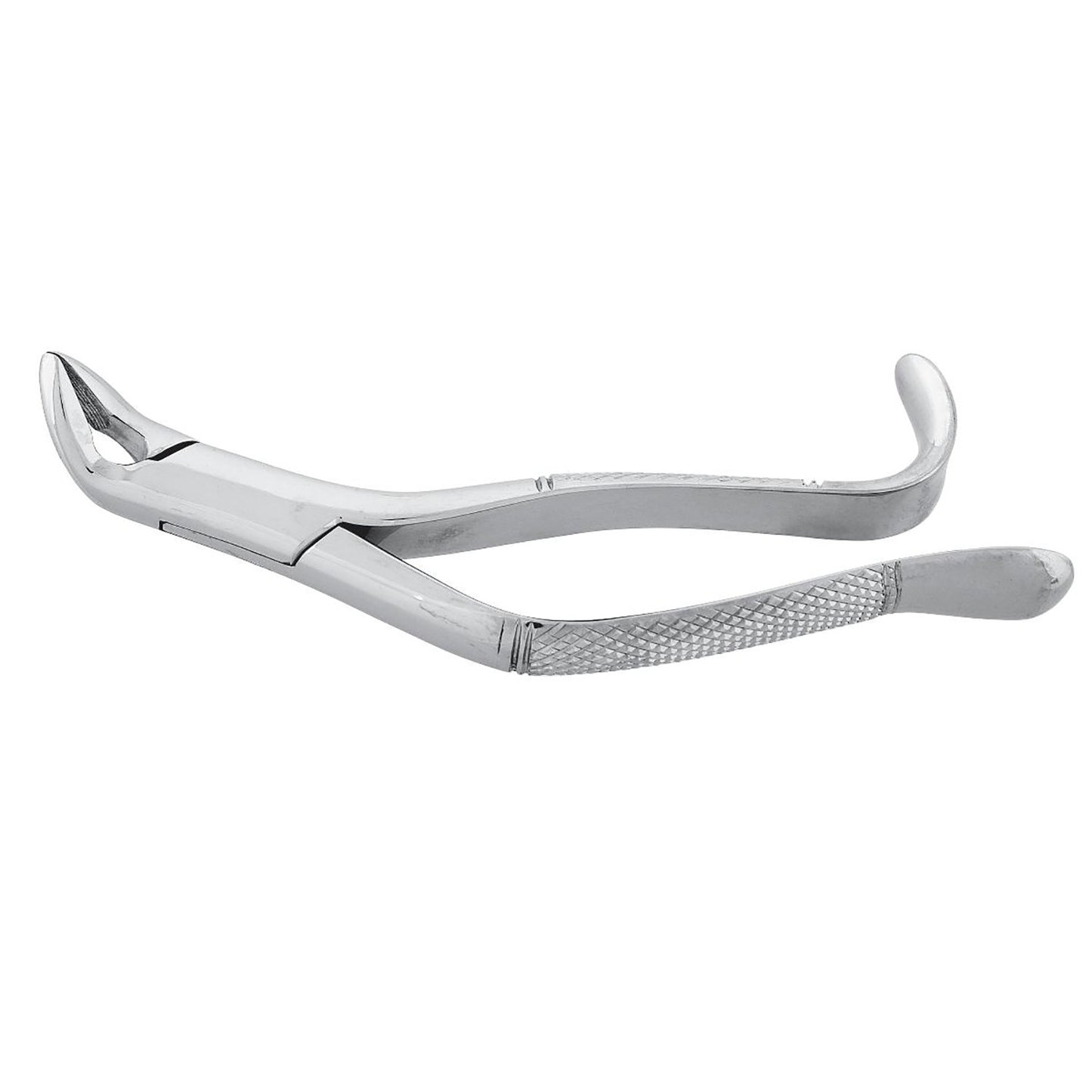

Extracting Forceps Curved 5" – German Stainless Steel Curved-Shank Dental Extraction Forceps for Upper Anterior, Canine, and Third Molar Access (PS-6921)

The Extracting Forceps Curved 5" (PS-6921) is a reusable German stainless steel dental extraction forceps, 125mm (5 inches) in overall length, with a curved shank — a smooth arc in the vertical plane running from the handle through the body of the instrument to the beaks — designed to align the beaks with the long axis of teeth that a straight-shanked or laterally angled forceps cannot reach without the shank or handle physically obstructing access to the posterior oral cavity or impinging on adjacent teeth and soft tissues. The vertical shank curvature is the defining design feature of this instrument and distinguishes it fundamentally from both straight extraction forceps (PS-6911, in which the shank and beaks are aligned along the same axis) and laterally angled forceps (PS-6914 and PS-6916, in which the beak is offset to the left or right in the horizontal plane): the curve of this instrument operates in the vertical/sagittal plane, bringing the beak into the correct position for teeth whose anatomy, depth, or location within the arch requires a curved approach path to achieve proper beak seating along the root. This geometry is most commonly associated with upper anterior and canine tooth extraction, and with the access requirements of upper third molar extraction, where the depth of the posterior oral cavity and the divergence of the wisdom tooth from the occlusal plane create access geometry that straight or laterally offset forceps addresses poorly. Manufactured from German stainless steel for the strength, corrosion resistance, and dimensional stability required of a reusable instrument that undergoes repeated steam autoclave sterilization. Used by dentists and oral surgeons in dental clinics, oral surgery units, and hospital dental departments. Sold as 1 piece, 125mm (5") curved configuration.

Shank Curvature in Extraction Forceps: Vertical Plane vs Lateral Offset

Dental extraction forceps achieve access to different teeth within the arch through two distinct geometric strategies that are important to understand clearly when selecting the correct instrument. Lateral offset — the angled-left (PS-6914) and angled-right (PS-6916) designs — displaces the beak sideways, to the left or right of the shank's long axis, addressing the ergonomic access challenge of reaching teeth on the left or right side of the arch from the operator's working position without the handle obstructing the surgical field. Vertical curvature — the design of the PS-6921 Curved 5" — instead bends the shank in the sagittal or vertical plane, curving the instrument's body so that the beak approaches the tooth from a different vertical angle than the handle's orientation would suggest. This vertical curvature serves a different purpose than lateral offset: it addresses situations where the tooth's position within the arch, its depth below the occlusal plane, or the anatomy of the surrounding teeth and bone means that a straight or laterally offset approach results in the shank or handle impinging on adjacent structures before the beak has been adequately seated along the root. The bayonet or S-curve shape characteristic of many curved extraction forceps allows the beak to reach past these obstacles along a curved path, seating against the root surface in the correct orientation while the handle remains in an accessible, controllable position outside the area of obstruction.

Upper Anterior and Canine Extraction: Applying the Curved Forceps Design

Upper anterior teeth — upper central incisors, lateral incisors, and canines — have relatively long, conical single roots with narrower mesiodistal dimensions compared to posterior teeth, requiring a forceps with a narrower beak profile and a shank geometry that allows the beak to engage the root below the cervical margin without the shank impinging on the adjacent teeth or the upper lip. The curved shank of the PS-6921 addresses the access geometry of the upper anterior region: as the forceps is introduced into the upper anterior area, the handle is held below and in front of the patient's upper arch, and the curved shank arcs the beak upward into the correct alignment with the upper incisor or canine root without the shank or handle needing to be positioned inside or above the patient's bite, which a straight forceps would require. The upper canine presents a particular extraction challenge because of its long root — the longest single root in the permanent dentition — and the canine eminence of the alveolar bone, which provides strong bony support on the labial aspect; the curved forceps' ability to seat the beak far apically along this long root while keeping the handle in an ergonomic approach position allows the sustained, controlled buccal-to-palatal rocking and rotational movements needed to progressively dilate the socket around the long canine root.

Posterior and Third Molar Access: The Geometry of Deep Reach

Upper third molar extraction is among the most technically challenging routine extractions in dental practice, for several reasons that relate directly to why the curved forceps design is valuable in this context. The upper third molar is the most posterior tooth in the maxillary arch, positioned at the distal end of the alveolar process where the posterior oral cavity narrows, access is limited by the cheek and the coronoid process of the mandible (which moves forward when the mouth is opened widely), and the surrounding bone — particularly the tuberosity posterior to the tooth — may be less well-defined than in more anterior positions. Equally importantly, upper third molars frequently erupt at angles that diverge substantially from the long axis of the other maxillary posterior teeth, and they may have roots that are fused, splayed, or otherwise divergent in ways that make a straight beak approach along a single clean axis difficult. The curved shank of the PS-6921 allows the operator to direct the beak into this confined posterior space along a path that the curved approach geometry makes accessible despite the narrow opening and the posteriorly tapering arch anatomy, reaching and seating the beaks on the tooth while the handle remains in an anterior position where the operator retains adequate control and force-delivery capability.

German Stainless Steel Construction and Sterilization

The Extracting Forceps Curved 5" is manufactured from German stainless steel, providing the structural strength and corrosion resistance required of an extraction forceps that bears substantial torsional and tensile forces during tooth delivery and undergoes repeated steam autoclave sterilization between procedures. The curvature of the shank introduces a structural consideration specific to curved forceps designs: the curved portion of the shank is subject to bending stresses during extraction that differ from those in a straight forceps — specifically, the outer surface of the curve is in tension and the inner surface in compression during the principal direction of extraction force. Over extended service life with repeated high-force extractions, the curved shank region should be inspected at each reprocessing cycle for any surface cracks, deformation of the curve, or metal fatigue indicators at the shank's apex of curvature, as these are the most likely sites of structural degradation in a curved instrument compared to a straight one. The hinge mechanism and beak surfaces should be inspected using the same protocol as for any extraction forceps. The instrument is fully compatible with steam autoclave sterilization at 134°C pre-vacuum parameters. Available in satin, dull, or mirror surface finish.

CE Mark, ISO 13485, and FDA Certification for Dental Instrument Procurement

The Extracting Forceps Curved 5" PS-6921 is manufactured under a quality management system certified to ISO 13485, governing German stainless steel material sourcing, precision forging and machining of the curved forceps shank, beaks, and hinge mechanism at the 125mm overall length, dimensional and functional inspection of the shank curvature and beak geometry, surface finishing, and packaging. CE Mark certification confirms conformity with European Medical Device Regulation requirements for Class I reusable dental surgical instruments distributed within EU and associated regulatory territories. FDA compliance documentation is maintained for United States distribution, satisfying regulatory requirements for reusable dental extraction instruments procured by US dental clinics, oral surgery units, and dental instrument distributors. These certifications satisfy procurement and tender documentation requirements of institutional buyers in the USA, India, Pakistan, Vietnam, and across international dental instrument supply frameworks. Certificates of conformity and quality management system documentation are available on request. OEM manufacturing is available within the same certified manufacturing framework.

Product Specifications

Frequently Asked Questions

What does "curved" mean in this extraction forceps, and how is it different from angled-left and angled-right designs?
The "curved" descriptor refers to a smooth arc in the shank's vertical or sagittal plane — the instrument's body bends in the up-down direction rather than to the left or right. The angled-left (PS-6914) and angled-right (PS-6916) forceps have lateral beak offsets in the horizontal plane — their shanks remain relatively straight but the beaks point sideways, addressing the ergonomic access challenge for left-side or right-side posterior teeth. The curved forceps addresses a different access geometry entirely: vertical curvature brings the beak into alignment with teeth that are positioned at a depth or angle within the arch where a straight or laterally offset shank would be obstructed by adjacent teeth, bone, or soft tissues before the beak could be adequately seated. The curved design is most classically associated with upper anterior and canine extractions and with upper third molar access, where the posterior depth of the oral cavity and the anatomy of the surrounding structures make the curved approach path valuable. A comprehensive extraction forceps inventory includes straight, angled-left, angled-right, and curved designs to cover all tooth positions and access geometries across both arches.

Why is a curved forceps particularly useful for upper canine and upper third molar extractions?
Upper canines have the longest roots in the permanent dentition and are supported by a prominent labial canine eminence of alveolar bone, requiring sustained, controlled buccal-to-palatal rocking and rotation to achieve the socket dilation needed for delivery. The curved shank allows the beak to seat far apically along the long canine root while the handle remains in an ergonomically accessible approach position in front of and below the upper arch — an approach angle that a straight forceps cannot easily achieve without positioning the handle awkwardly inside the patient's bite or obstructing the operator's line of vision along the root axis. For upper third molars, the curved geometry helps navigate the confined posterior oral space where the arch narrows and access is limited by the cheek and coronoid process, allowing the beak to reach the third molar along a curved path that accounts for the posterior tapering of the arch while the handle remains in a more accessible anterior position from which the operator can apply controlled extraction forces.

How does this instrument relate to the other extracting forceps in Peak Surgicals' range?
Peak Surgicals offers five extracting forceps configurations addressing different access geometries. The Extracting Forceps 125mm (PS-6911) is a compact straight forceps — no lateral offset or vertical curvature. The Angled Left (PS-6914) and Angled Right (PS-6916) are lateral offset designs for left and right posterior teeth respectively. The 4pcs Set (PS-6935 series) provides four pattern-numbered forceps with specific tooth-type designations — No. 18L (upper left molar), No. 286 (lower molar), No. 53L (upper left premolar), No. 69 (root retrieval). This Curved 5" (PS-6921) is the only curved-shank design in the range, addressing vertical access geometry for anterior and canine positions and deep posterior access. A practice equipping for the full range of extraction scenarios would draw on all five configurations based on the specific tooth being extracted and the operator's assessment of the access geometry for each individual case.

What should be inspected on this instrument during reprocessing, given its curved shank design?
The Extracting Forceps Curved 5" is fully compatible with steam autoclave sterilization at 134°C pre-vacuum parameters. The curved shank is the specific inspection priority for this instrument compared to straight extraction forceps: the apex of the curve — the point of maximum curvature along the shank — is subject to tension on its outer surface and compression on its inner surface during extraction, and over extended service life with repeated high-force extractions, this region is the most likely site of metal fatigue or surface cracking. At each reprocessing cycle, the curved shank should be inspected along its full length, and particularly at the apex of curvature, for any surface discontinuities, cracks, or deformation of the curve's geometry — any such finding is grounds for removing the instrument from clinical service. The hinge and beak surfaces should be inspected by the same standard as any extraction forceps.

What certifications does this instrument carry, and are bulk or OEM orders available?
The Extracting Forceps Curved 5" PS-6921 is manufactured under an ISO 13485-certified quality management system covering German stainless steel material procurement, precision forging and machining of the curved shank, beaks, and hinge, and packaging. CE Mark certification confirms conformity with European Medical Device Regulation requirements for Class I reusable dental surgical instruments. FDA compliance documentation supports United States distribution. Certificates of conformity are available on request for procurement and tender documentation. Bulk orders are accepted with a minimum of 1 piece, with volume pricing available for dental clinics, oral surgery units, hospital dental departments, and dental instrument distributors. OEM manufacturing for custom configurations or private-label branding is available within the same ISO 13485-certified framework. Free shipping applies on orders of $99 or more.
