Explorer Dg16/23 Dental Explorer for Endodontic Canal and Caries Detection

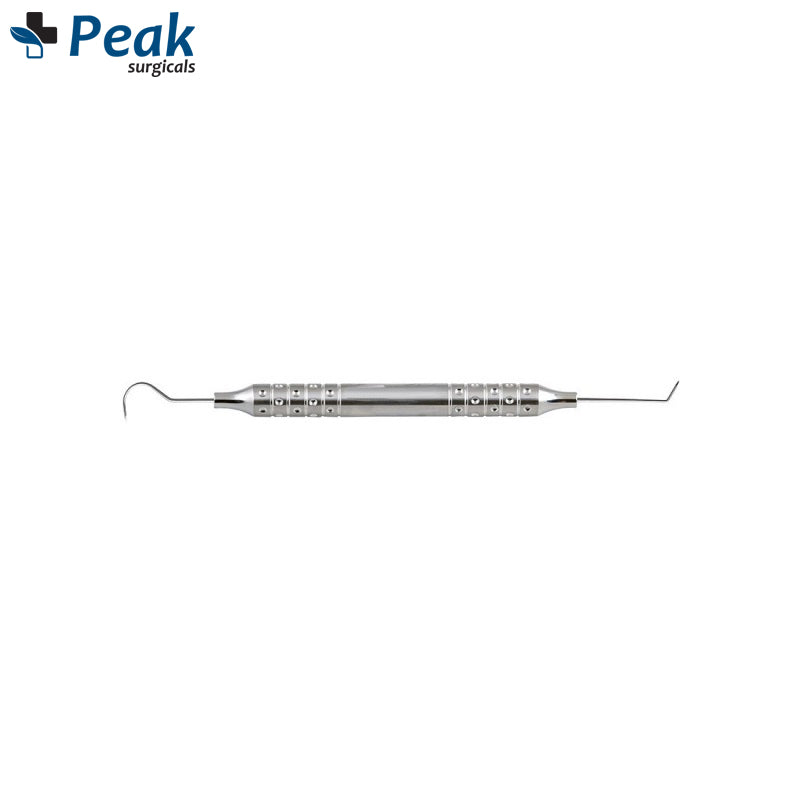

Explorer Dg16/23, SKU PS-D-040, is a double-ended dental diagnostic explorer made from German stainless steel for endodontic canal orifice location, caries detection, calculus identification, restorative margin assessment, and routine chairside examination. The listed size is 16/23 to 10mm, combining a DG16 endodontic working end with an Explorer 23 shepherd’s-hook tip on a lightweight 10mm handle. The DG16 side is used during access-cavity floor mapping, canal entrance location, calcified orifice tracing, and inspection of developmental grooves inside the pulp chamber. The Explorer 23 side is used for occlusal pit and fissure review, calculus ledge detection, restoration transition checks, crown-margin inspection, bridge-abutment review, orthodontic band evaluation, and exposed root surface assessment. Endodontists, general dentists, restorative clinicians, dental hygienists, periodontists, oral surgery teams, orthodontic departments, dental schools, hospital dental services, veterinary dental practices, distributors, and procurement teams use this instrument in examination, endodontic, restorative, hygiene, periodontal, and pre-extraction tray setups.

DG16 Orifice Tip and Explorer 23 Hook Mechanics

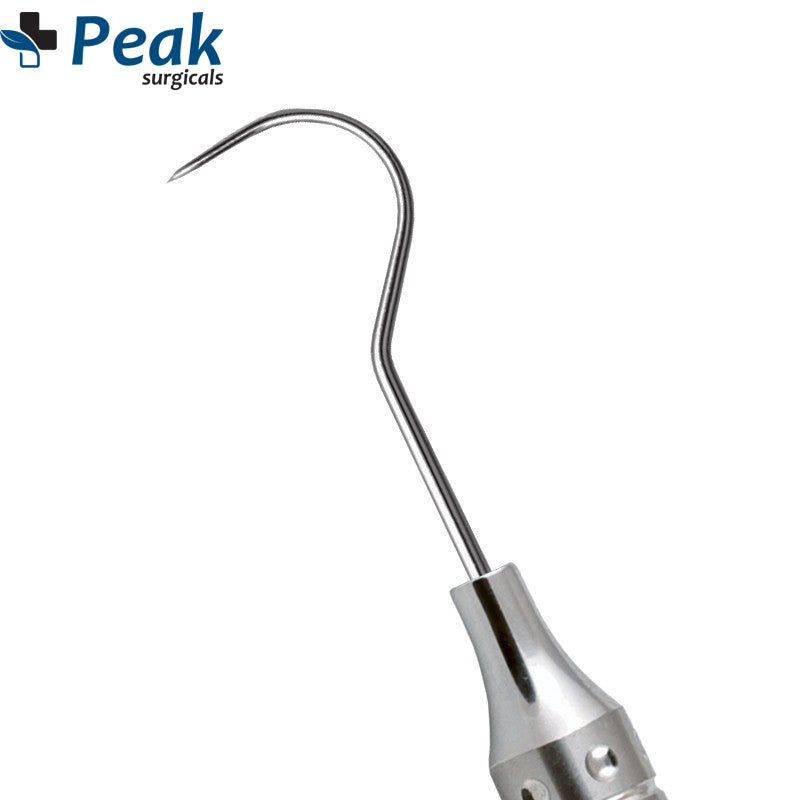

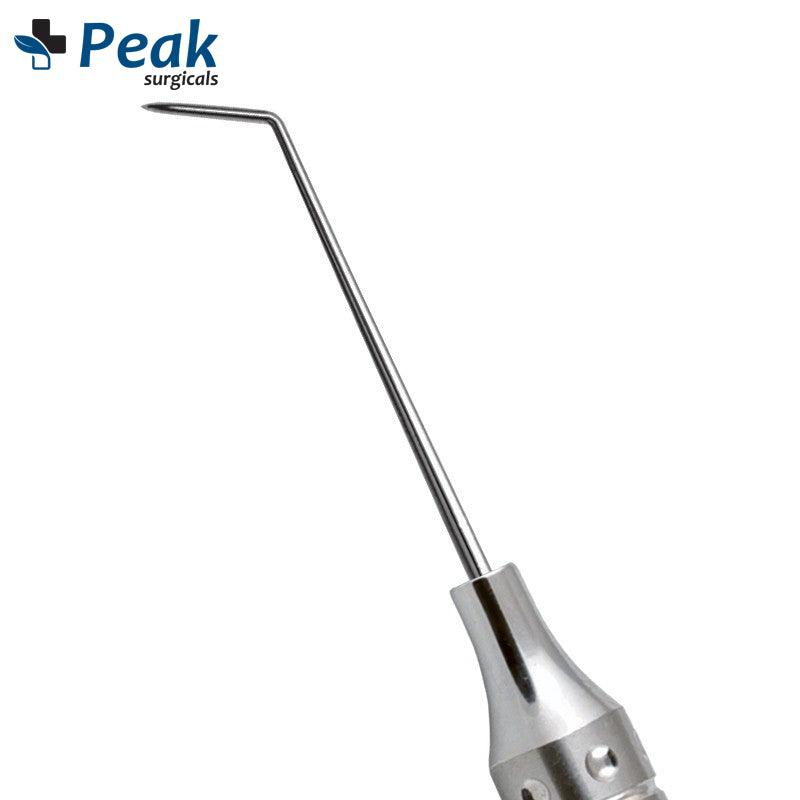

The Explorer Dg16/23 combines two recognized diagnostic tip geometries on one balanced stainless handle. The DG16 end has a long slender shank with a fine angled terminal point designed to enter an access cavity and trace the pulpal floor under mirror guidance or magnification. Its geometry helps the clinician follow developmental grooves, locate canal entrances, explore calcified orifices, and identify floor-wall transitions while keeping the hand outside the direct access field. The Explorer 23 end has a shepherd’s-hook form used with a controlled pull stroke across pits, fissures, cervical grooves, restoration margins, and calculus-sensitive root surfaces. This hook profile transmits tactile changes from softened enamel, cement remnants, open margins, and subgingival ledges through the shaft to the operator’s fingers. The 10mm handle has raised ring sections and recessed grip points that support wet-glove rotational control. There is no ratchet, spring, lock, pivot, or box joint because the working action depends on manual pressure, terminal contact, shank angulation, and fingertip rotation.

Endodontic Access and Diagnostic Examination Sequence

During endodontic treatment, the Explorer Dg16/23 is introduced after access outline preparation, roof removal, irrigation, and chamber-floor visualization. The DG16 tip is guided along developmental lines to locate mesiobuccal, distobuccal, palatal, mesiolingual, distolingual, buccal, and lingual canal entries according to tooth morphology. In molars, the fine angled end supports inspection around calcified orifice sites, isthmus lines, secondary dentin, and floor color transitions before glide-path negotiation. During routine dental examination, the Explorer 23 side is drawn lightly through occlusal fissures and along cervical margins to assess caries-suspect enamel, calculus deposits, sealant defects, and restorative edges. Restorative clinicians use the hook around composite interfaces, amalgam margins, crown seats, bridge abutments, veneer margins, and cement remnants. Hygiene and periodontal teams apply the same tip before scaling and after debridement to confirm residual ledges. Oral surgery teams use the instrument during pre-extraction clearance, while veterinary dental clinicians use the slim working ends for canine and feline posterior oral review.

16/23 Pattern and 10mm Handle Selection

The 16/23 configuration is selected when an endodontic explorer and a caries explorer are required in one compact diagnostic instrument. The DG16 side is selected for access-cavity floor mapping, canal orifice location, calcified entry exploration, isthmus tracing, retreatment access review, and endodontic teaching cases where fine terminal contact is required inside the chamber. It is especially relevant in molars, premolars, calcified canals, and access revisions where chamber anatomy must be read through tactile response. The Explorer 23 side is selected for occlusal pit tracing, fissure inspection, calculus detection, restoration edge review, crown-margin assessment, residual cement identification, and root-surface examination. The 10mm handle supports short finger travel and quick reversal between the two working ends during a single appointment. Dental schools and multi-chair clinics can place this pattern in endodontic, restorative, hygiene, periodontal, oral surgery, orthodontic, veterinary, and examination trays. Selection is based on procedure stage, access route, tactile objective, target surface, and department tray standardization rather than millimeter pocket recording.

Reusable Steel, Sterilization, and Procurement Records

German stainless steel construction gives Explorer Dg16/23 the rigidity required for fine tactile response while preserving the narrow DG16 and Explorer 23 working ends through repeated clinical handling. The polished tips allow inspection after cleaning, while the textured satin-style handle reduces glare under operatory lighting and supports controlled grip during wet-glove use. Reprocessing follows standard reusable dental instrument workflow: point-of-use debris removal, careful cleaning around both fine tips, ultrasonic cleaning when included in facility protocol, rinsing, drying, inspection of terminal ends and handle, packaging, and steam autoclave sterilization. A single-piece metal body simplifies instrument counts because there are no detachable sleeves, plastic inserts, or disposable tips. CE marking supports international medical device purchasing, while ISO 13485 alignment reflects manufacturing controls expected by hospitals, clinics, dental schools, distributors, and institutional buyers. FDA-compliant procurement context helps United States buyers maintain reusable hand instrument records. The product supports single-piece replacement, custom endodontic set assembly, distributor ordering, OEM programs, after-sale assistance, and routine replenishment for professional dental and veterinary supply channels.

How does this differ from an Explorer DG16/17?
Explorer Dg16/23 combines a DG16 endodontic orifice tip with an Explorer 23 shepherd’s-hook end. An Explorer DG16/17 pairs the same endodontic tip with a 17 angled explorer, which is more focused on posterior proximal margins and cervical access. The 23 side on this product is selected for occlusal pit and fissure tracing, caries screening, calculus ledge detection, and restoration transition checks. The DG16 side remains dedicated to chamber-floor mapping and canal entrance location. Explorer Dg16/23 is selected when the appointment combines endodontic access evaluation with routine caries and calculus examination. This pattern gives one handle for canal exploration and hook-style diagnostic inspection.

How should the 16/23 to 10mm configuration be selected clinically?
Explorer Dg16/23 is selected when the clinician needs DG16 endodontic access capability and Explorer 23 surface diagnosis in the same tray. The DG16 end is used for molar and premolar access-cavity floor mapping, canal orifice location, calcified entry tracing, and isthmus inspection. The Explorer 23 side is used for occlusal fissures, cervical calculus, exposed root surfaces, composite edges, amalgam margins, and crown transitions. The 10mm handle supports compact finger rotation and fast reversal between the two sides. It is not selected for Williams, WHO, or UNC periodontal charting because it does not carry millimeter bands. Explorer Dg16/23 is selected for tactile diagnosis, endodontic access review, and reusable tray standardization.

How do CE, ISO 13485, and FDA procurement requirements apply?
Explorer Dg16/23 is supplied for professional dental purchasing workflows that require reusable hand instrument documentation. CE marking supports international procurement records for hospitals, clinics, dental schools, distributors, and institutional buyers. ISO 13485 alignment reflects manufacturing controls used in regulated medical device supply. FDA-compliant procurement context helps United States buyers maintain vendor files and reusable dental instrument records. These references support tender preparation, distributor onboarding, clinic audits, product file review, and multi-location purchasing approval. The instrument remains a non-powered dental diagnostic and endodontic explorer for professional chairside examination.

How are the DG16 tip, Explorer 23 hook, and handle controlled during use?
The control feature on Explorer Dg16/23 is the double-ended working geometry combined with the textured 10mm handle. The clinician rolls the handle between the thumb and index finger to orient the DG16 tip inside an access cavity or position the Explorer 23 hook against occlusal and cervical surfaces. During endodontic use, the DG16 point is guided along chamber-floor grooves with light tactile pressure. During caries or calculus inspection, the hook is drawn across fissures, margins, root contours, and restoration edges. There is no ratchet, spring, lock, pivot, or box joint because the instrument depends on manual control and precise shank angulation. This handling pattern supports sequential endodontic and diagnostic assessment without changing instruments.

How should clinics and distributors manage sterilization and supply?
Explorer Dg16/23 is a reusable German stainless steel dental instrument suitable for standard clinical tray reprocessing. After use, staff remove visible debris, clean both fine tips carefully, rinse, dry, inspect the working ends, package the instrument, and steam autoclave it according to facility protocol. The one-piece metal construction supports repeated turnover in examination, endodontic, restorative, hygiene, periodontal, orthodontic, oral surgery, and veterinary dental trays. Hospitals and teaching clinics can stock the same pattern across departments to standardize endodontic access review and diagnostic inspection. Distributors can order single pieces or include the instrument in custom diagnostic and endodontic kits for professional buyers. The $3.30 USD price supports replacement ordering, department replenishment, and multi-chair clinic inventory planning.
