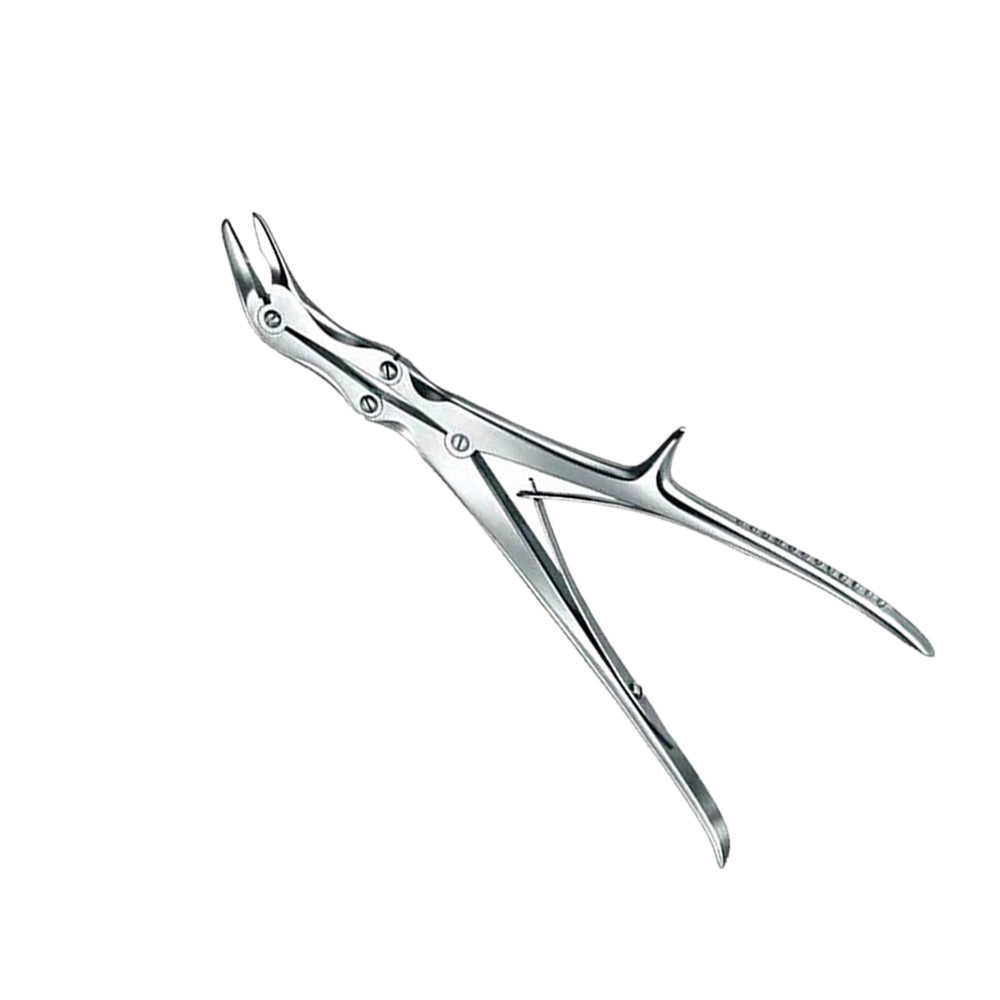

Echlin Rongeur Forceps Instruments for 2mm and 3mm Bone Nibbling

Echlin Rongeur Forceps Instruments, SKU PS-OT-0496, Model PS-9460, is an orthopedic and spinal rongeur manufactured from German stainless steel for controlled bone nibbling, cortical trimming, and removal of small osseous fragments in open surgical exposure. The available variants are PS-9461 Jaws 3mm x 10mm and PS-9460 Jaws 2mm x 10mm, giving the surgeon two bite widths for fine or slightly broader osseous reduction. The instrument has opposing cupped jaws, an angled cutting head, compound pivot linkage, screw-secured joints, curved spring handles, a proximal thumb rest, and a return spring that reopens the handles after each compression. It is used in laminectomy exposure, posterior spinal decompression, osteophyte reduction, exostectomy, fracture edge trimming, cancellous bone contouring, hand and foot surgery, podiatric bone procedures, and maxillofacial bone work where incremental removal is required. This rongeur supports orthopedic surgeons, spine surgeons, neurosurgeons, podiatric surgeons, maxillofacial surgeons, hospital operating rooms, surgical centers, and procurement teams maintaining reusable bone instrument trays.

Compound Pivot Bite and Spring Handle Return

The Echlin pattern works through a compound pivot system that transfers handle compression into controlled closure at the distal cupped jaws. The opposing jaw cups capture a defined segment of cortical or cancellous bone and shear it away as the surgeon closes the handles. The angled working head improves access to laminar margins, osteophyte projections, exostotic bone, and irregular cortical surfaces without forcing the wrist into a straight-line approach. Screw-secured pivot points maintain alignment across repeated bite cycles and keep the cutting path consistent during serial bone removal. The return spring reopens the handles after each compression, allowing rapid repositioning for the next bite. The curved handle geometry distributes force through the palm and fingers during repeated nibbling. The proximal thumb rest supports counter-pressure when the surgeon needs firm control during open-field trimming. This mechanism is selected for localized bone reduction, edge refinement, and fragment removal where tactile feedback and accurate jaw placement are required.

Open-Field Bone Removal Workflow

In operative workflow, Echlin Rongeur Forceps Instruments is introduced after exposure, retraction, soft tissue protection, and identification of the bone margin requiring controlled reduction. In posterior spinal decompression, the rongeur can reduce accessible laminar edges, spinous process fragments, or small posterior element margins after the surgical field has been prepared. During laminectomy exposure, it supports staged bone removal before finer instruments complete the decompression corridor. In osteophyte reduction, the cupped jaws are placed over the projecting margin and closed in measured increments until the prominence is reduced. During fracture exposure, the instrument trims sharp cortical edges and removes loose fragments after reduction planning. In exostectomy and orthopedic contouring, it supports bite-by-bite removal before final smoothing with a rasp or bone file. In hand, foot, podiatric, and maxillofacial procedures, the jaw profile assists controlled cutting where a broad shear would reduce placement accuracy. It is used with periosteal elevators, retractors, osteotomes, curettes, suction, irrigation, and hemostatic instruments.

PS-9460 and PS-9461 Jaw Selection

PS-9460 Jaws 2mm x 10mm is selected when the surgeon requires a narrow bite for confined bony margins, small osteophytes, laminar edges, hand procedures, foot procedures, or fine contouring around exposed osseous structures. The 2mm jaw width supports smaller incremental cuts where visibility, placement accuracy, and protection of adjacent tissue are more important than the amount removed per bite. PS-9461 Jaws 3mm x 10mm is selected for slightly broader accessible bone edges, cancellous fragments, moderate exostotic projections, and open orthopedic exposure where a wider bite improves workflow while preserving control. Both variants use the same functional architecture: cupped jaws capture the target, compound pivots transfer force, screw joints stabilize alignment, and the spring handles reopen after compression. The 10mm jaw length gives a defined cutting surface for exposed bone margins. In tray planning, these variants occupy the bone-nibbling role beside Kerrison, Leksell, Liston, Stille-Luer, Dawson-Yuhl, and Cicherelli rongeurs according to access depth, bite width, and operative geometry.

Reusable German Steel and Procurement Documentation

German stainless steel provides the rigidity required for repeated jaw closure, bone contact, compound joint movement, and operating room reprocessing. The reusable construction supports surgical workflows involving manual cleaning, ultrasonic cleaning where used, drying, inspection, packaging, and steam autoclave sterilization between procedures. Satin, dull, and mirror finish options support operating room and sterile processing preferences; reduced-glare surfaces assist visibility under surgical lights, while mirror finish supports visual inspection after cleaning. Reprocessing focuses on the cupped jaws, cutting margins, screw-secured pivots, linkage recesses, spring mechanism, thumb rest, handle grooves, and return-control surfaces because bone dust, tissue, blood, and irrigation fluid collect in these areas during use. The Class I classification reflects a reusable manual surgical instrument with mechanical cutting action. CE marking and ISO 13485 documentation support regulated purchasing records for hospitals, surgical centers, and distributors. FDA compliance information supports medical device procurement files for regulated healthcare markets. The one-year warranty, MOQ of one piece, OEM availability, carton box packing, rust-free listing, and return or replacement support fit operating room replenishment and distributor inventory workflows.

SKU	PS-OT-0496
Product Name	Echlin Rongeur Forceps Instruments
Price	$50.60
Size/Gauge Variants	PS-9461 Jaws 3mm x 10mm; PS-9460 Jaws 2mm x 10mm
Instrument Category	Orthopedic Bone Rongeur Forceps
Procedure	Bone nibbling, laminectomy exposure, posterior spinal decompression, osteophyte reduction, exostectomy, fracture edge trimming, cancellous bone contouring, orthopedic bone debridement
Material	German Stainless Steel
Finish	Satin, dull, mirror
Sterilization	Reusable and autoclavable after cleaning, drying, inspection, and packaging
Instrument Classification	Class I
Reusable	Yes
Certifications	CE, ISO 13485, FDA
Warranty	1 year
MOQ	1 piece
OEM / Custom Orders	Available
After-Sale Service	Return and replacement support

How does Echlin Rongeur Forceps Instruments differ from a Kerrison rongeur?
Echlin Rongeur Forceps Instruments uses opposing cupped jaws and a forceps-style compression mechanism for open-field bone nibbling. A Kerrison rongeur uses a footplate and sliding punch action for lamina, ligamentum flavum, and bony window enlargement during spinal decompression. The Echlin pattern is placed directly over an exposed bone edge, spur, or fragment. The Kerrison pattern advances under a firm margin and removes tissue through a punch bite. This rongeur uses compound pivot leverage and a spring handle for repeated reopening after each cut. Echlin Rongeur Forceps Instruments is selected for accessible bone contouring, exostectomy, osteophyte reduction, and orthopedic trimming where opposing jaw purchase is required.

How are the 2mm x 10mm and 3mm x 10mm jaws selected?
The PS-9460 2mm x 10mm jaw variant is selected for narrow bony margins, small osteophytes, laminar edges, hand surgery, foot surgery, and confined exposure. The PS-9461 3mm x 10mm jaw variant is selected for broader accessible bone edges, cancellous fragments, and moderate exostotic projections. The 2mm jaw gives finer bite control where the surgeon needs smaller incremental removal. The 3mm jaw increases contact width when the operative field allows a larger bite. Echlin Rongeur Forceps Instruments is selected according to bite width, bone density, exposure size, and planned osseous reduction. Both variants use the same compound pivot and spring handle mechanism.

How do CE, ISO 13485, and FDA documentation support procurement?
CE marking supports product conformity documentation for hospital purchasing and distributor review. ISO 13485 indicates that the manufacturing system follows medical device quality management and traceability requirements. FDA compliance information supports procurement records for regulated healthcare supply channels. Hospitals, surgical centers, and orthopedic instrument distributors use these documents during vendor approval, tender documentation, and tray standardization. Echlin Rongeur Forceps Instruments can be entered into purchasing systems with recognized compliance references. This documentation supports international healthcare buyers comparing reusable orthopedic rongeurs across multiple suppliers.

How is the compound pivot and spring handle used intraoperatively?
The compound pivot transfers handle compression into controlled jaw closure at the cutting end. During use, the surgeon places the cupped jaws over an exposed bony edge, spur, or fragment. As the handles close, the jaws bite and remove a small section of bone. The spring handle reopens the rongeur after each compression, allowing the surgeon to reposition for the next cut. Screw-secured pivot points maintain alignment through repeated cutting cycles. Echlin Rongeur Forceps Instruments depends on this pivot and spring action for controlled serial bone nibbling.

What should operating room teams know about sterilization and ordering?
This product is reusable and suitable for standard surgical instrument reprocessing workflows. Cleaning focuses on the cupped jaws, cutting margins, screw pivots, linkage recesses, spring mechanism, thumb rest, and handle surfaces before sterilization. The jaws are opened, brushed, rinsed, dried, and inspected for alignment before packaging. Steam autoclave processing follows the facility’s approved cycle for reusable stainless steel surgical instruments. Clinics and hospitals can order one piece because the MOQ is one piece. Echlin Rongeur Forceps Instruments is supplied with OEM availability, one-year warranty coverage, and return or replacement after-sale support.
