Carmalt Artery Forceps for 16.5-30.5cm Pedicle Hemostasis

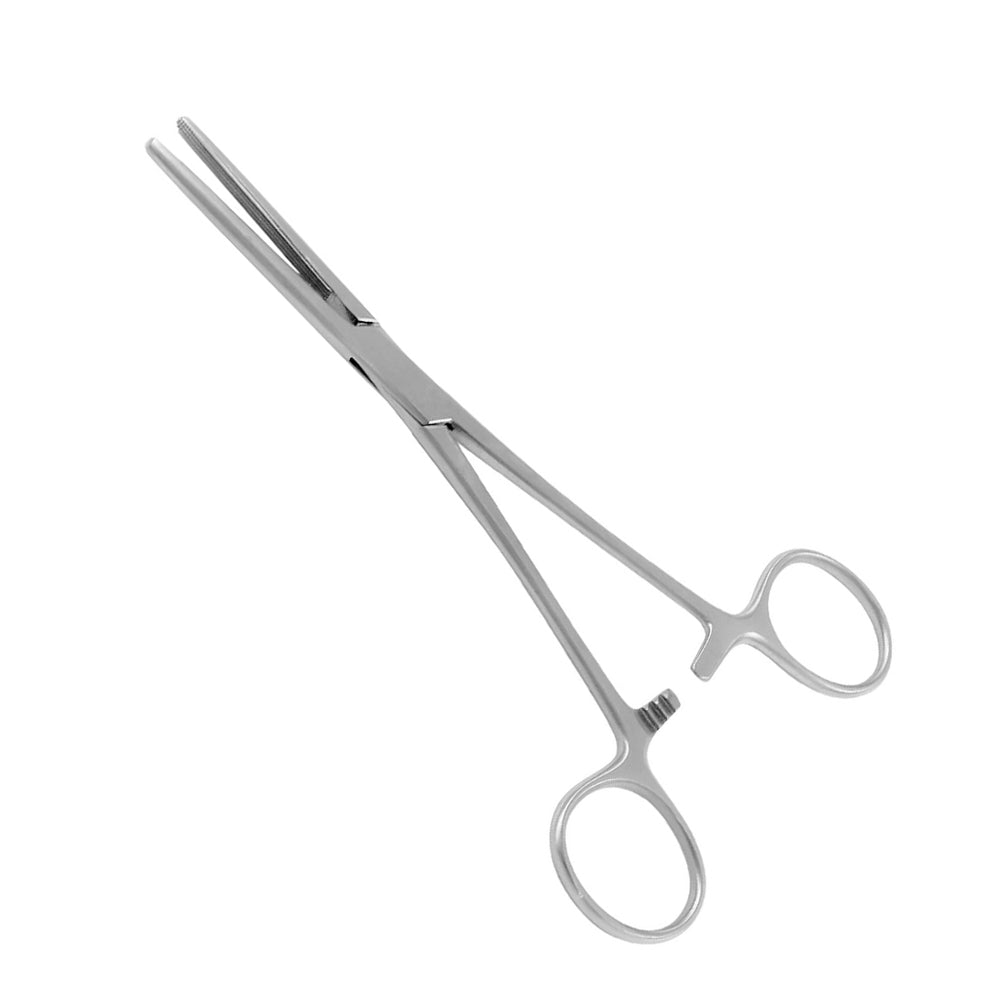

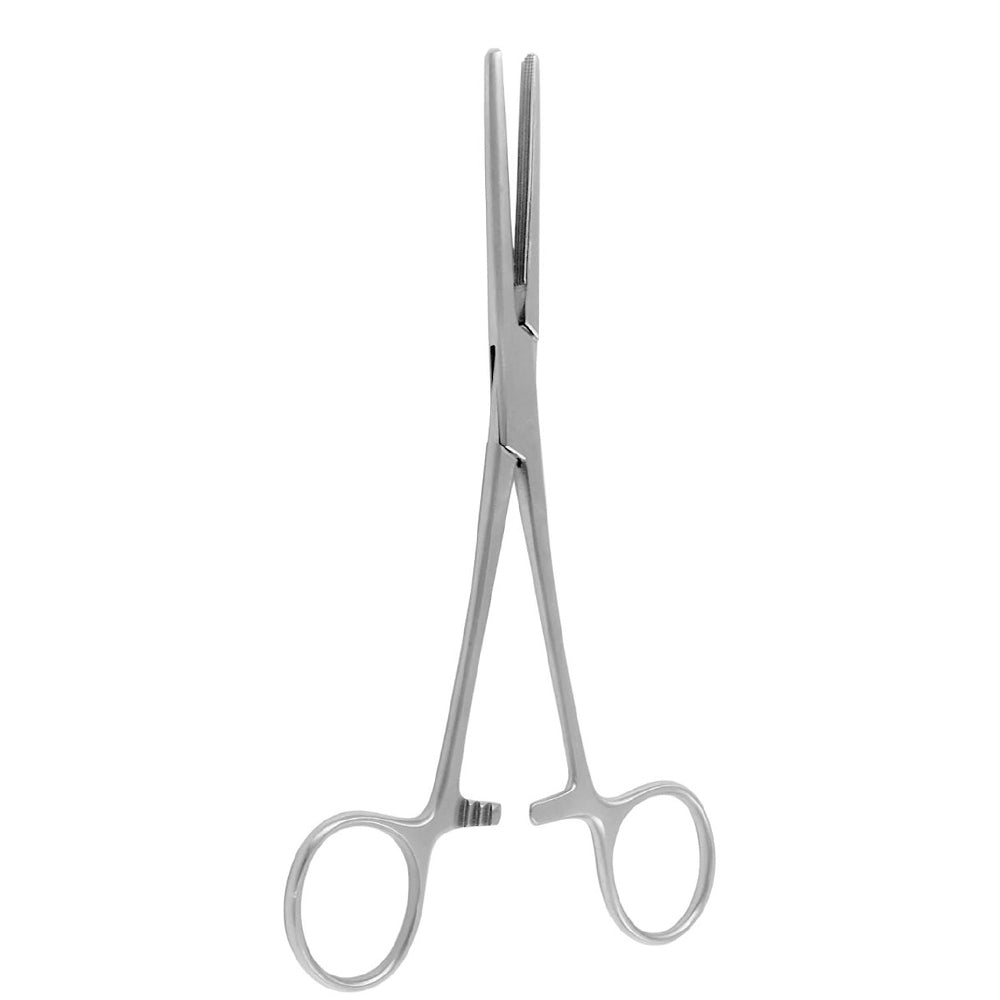

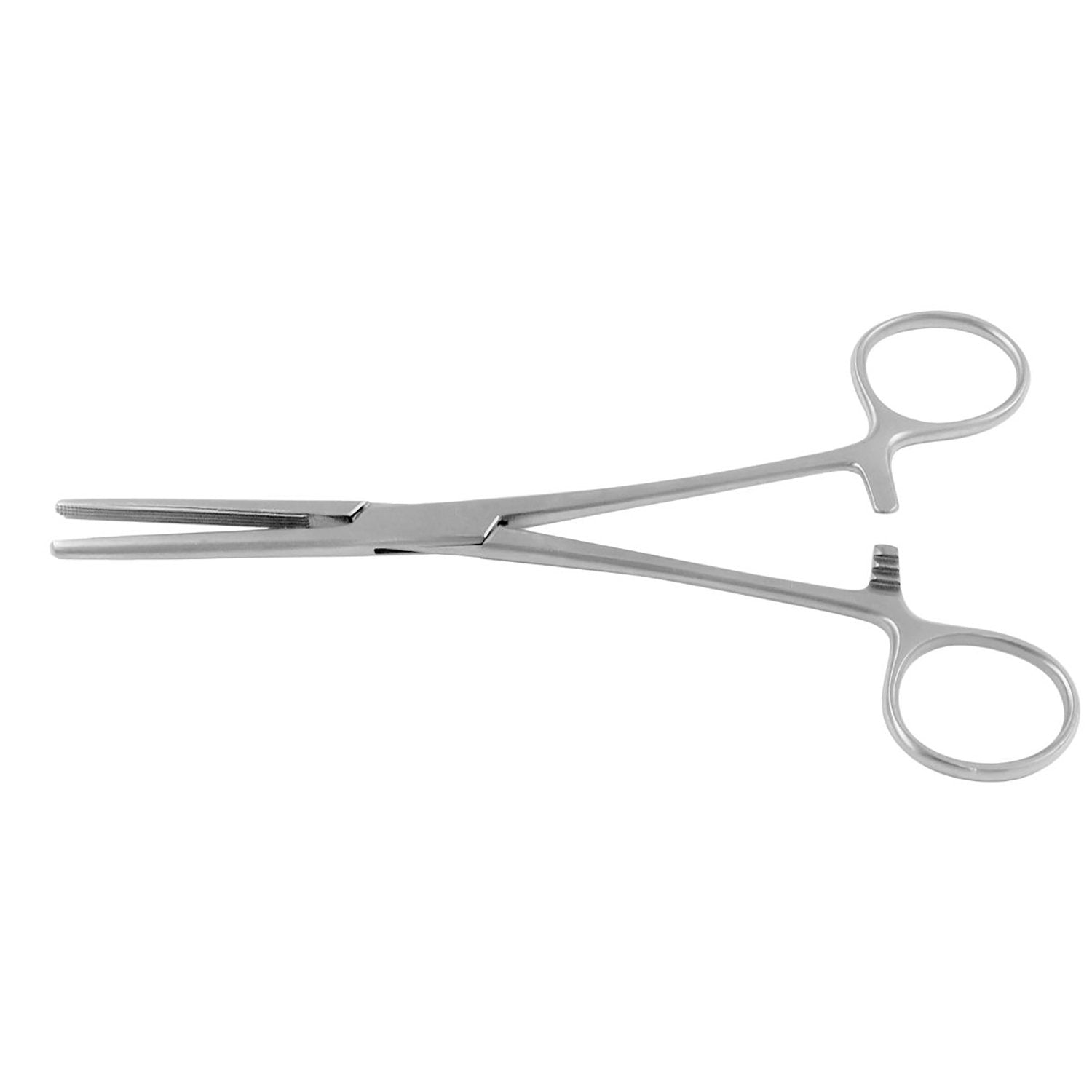

Carmalt Artery Forceps, SKU PS-1250, are reusable hemostatic forceps manufactured from German stainless steel for controlled clamping of vascular pedicles, fascial tissue, broad ligament pedicles, uterine attachments, ovarian pedicles, omental tissue, fibrous bands, and vessel-bearing soft tissue during open surgical workflow. The available variants are PS-1250 Straight with 6 1/2" (16.5cm) overall length, PS-1251 Straight with 8" (20.3cm), PS-1252 Curved with 6 1/2" (16.5cm), PS-1253 Curved with 8" (20.3cm), and PS-1254 Curved with 12" (30.5cm). The image shows long serrated jaws, a box-lock joint, straight shanks, ring handles, and a ratchet locking mechanism for sustained clamping. General surgeons, gynecology surgeons, colorectal teams, urologists, veterinary surgeons, and operating room staff use this pattern during hysterectomy, oophorectomy, salpingo-oophorectomy, laparotomy, colectomy support, abdominal mass excision, vascular pedicle ligation, omental handling, tissue bundle control, suture placement, and closure-stage hemostasis in hospitals, surgical centers, veterinary theaters, teaching labs, and reusable major surgery trays.

Longitudinal Serrations and Ratchet Locking Action

The working action is produced by two opposing jaws joined through a box-lock joint that transfers ring-handle compression into aligned distal closure. Carmalt jaw geometry is defined by longitudinal serrations along the inner surface, with distal gripping detail designed to stabilize vessel-bearing tissue and pedicles during ligation. This serration pattern helps prevent tissue slippage when traction is applied to ovarian, uterine, omental, or abdominal soft-tissue bundles. The box lock keeps the arms centered as closing pressure increases, preserving jaw alignment during clamp placement. Straight shanks provide direct-line access, while curved variants follow tissue contours and improve approach around deeper operative planes. Ring handles allow thumb and finger control during application and release. The ratchet near the handles locks the jaws at staged closure points, maintaining compression while the surgeon places ties, cuts tissue, adjusts retractors, or coordinates adjacent instruments. Release is performed by separating the ratchet teeth before opening the jaws under direct visualization.

Pedicle Hemostasis in Abdominal and Gynecology Workflow

During hysterectomy and salpingo-oophorectomy, the forceps are applied after the pedicle is isolated, elevated, and aligned for secure clamping. The serrated jaws hold broad ligament attachments, ovarian pedicles, uterine tissue bundles, or vessel-bearing structures while ligatures are placed proximal or distal to the clamp line. In abdominal surgery, the instrument supports omental tissue handling, fascial bundle control, peritoneal fold traction, abdominal mass exposure, and closure-stage hemostasis when a locking clamp is required. Colorectal and urology teams can use the longer curved option around deep pelvic or abdominal soft-tissue corridors where hand clearance is needed. Veterinary surgeons apply the same mechanism during ovariohysterectomy, abdominal exploration, splenectomy support, and soft-tissue pedicle ligation. The clamp is selected after the target tissue is visually separated from adjacent structures and placed fully within the jaw length. The ratchet is engaged only after the desired compression level is achieved, keeping the clamp stable while ligation, division, or exposure proceeds.

Straight and Curved Size Selection

PS-1250 Straight 6 1/2" (16.5cm) is selected for compact open fields, superficial pedicle control, fascia handling, and direct-line clamping near the wound opening. PS-1251 Straight 8" (20.3cm) gives additional shaft reach for abdominal trays where the target remains aligned with the instrument axis. PS-1252 Curved 6 1/2" (16.5cm) is chosen when the jaw must approach beneath a raised soft-tissue bundle or follow a curved operative path in a compact field. PS-1253 Curved 8" (20.3cm) balances reach and contour-following access for gynecology, general surgery, and veterinary procedures. PS-1254 Curved 12" (30.5cm) provides extended access for deep abdominal, pelvic, colorectal, urology, and large-animal operative fields where the surgeon’s hand must remain outside the central wound. Selection depends on tissue depth, pedicle thickness, retractor placement, patient habitus, vessel control requirement, and whether the approach is direct or curved. Stocking all five variants gives operating room teams compact, intermediate, and deep-reach clamping options.

German Steel Processing and Procurement Documentation

German stainless steel construction supports repeated clinical use by maintaining jaw alignment, corrosion resistance, box-lock stability, and ratchet function through cleaning and steam sterilization cycles. Satin, dull, and mirror finish options allow procurement teams to match surface preference with glare control, inspection workflow, and existing clamp tray standards. After use, the jaws should be opened and cleared of blood, tissue residue, fat, suture debris, dressing fibers, and lint before enzymatic cleaning. Processing can include manual brushing, ultrasonic decontamination, washer-disinfector exposure, rinsing, drying, box-lock inspection, ratchet review, serration inspection, packaging, and steam autoclave sterilization according to facility protocol. The longitudinal grooves, ratchet teeth, and box lock require careful cleaning because retained residue can affect grip, closure, and release. CE marking, ISO 13485 documentation, and FDA procurement context support purchasing records for hospitals, clinics, surgical centers, veterinary facilities, distributors, and teaching programs. Class I classification, reusable construction, carton-box packing, 1-piece MOQ, OEM availability, 1-year warranty, and return and replacement service support replacement ordering and institutional supply.

How are Carmalt Artery Forceps different from Kelly artery forceps?
Kelly artery forceps are the closest alternative because both instruments are ratcheted hemostatic clamps. Kelly forceps commonly use transverse serrations and are selected for smaller vessels, routine hemostasis, and lighter tissue control. Carmalt Artery Forceps use longitudinal serrations along the jaw, giving stronger purchase on vascular pedicles and tissue bundles. This makes the Carmalt pattern more suitable for ovarian, uterine, omental, and abdominal pedicle clamping. Both instruments use ring handles, a box-lock joint, and a ratchet mechanism. The clinically relevant difference is jaw serration direction, tissue purchase, and the size of the structure being clamped.

How should the 16.5cm, 20.3cm, and 30.5cm variants be selected?
The 16.5cm straight and curved variants are selected for compact fields, superficial vascular pedicles, smaller tissue bundles, and direct control near the wound opening. The 20.3cm straight and curved versions provide additional reach for abdominal, gynecology, veterinary, and general surgery trays. The 30.5cm curved option is selected for deep abdominal or pelvic access where the hand must remain clear of retractors, suction, and assistant instruments. Carmalt Artery Forceps should be matched to access depth, pedicle thickness, tissue orientation, and whether the surgeon needs a straight or curved approach. Straight models support direct-line placement on visible tissue. Curved models follow deeper contours and help approach under elevated structures.

What do CE, ISO 13485, and FDA details mean for procurement?
CE documentation supports international conformity records for reusable surgical instrument purchasing. ISO 13485 indicates manufacturing under medical device production controls covering inspection, process consistency, and traceability. FDA procurement context supports U.S. purchasing files for Class I reusable surgical instruments. Carmalt Artery Forceps can be entered into hospital, clinic, veterinary, distributor, and operating room catalogs with documented material, finish, size range, warranty, MOQ, OEM availability, and after-sale service. These records support purchasing teams, receiving departments, and sterile processing units during inventory approval. The certification profile supports tender files, replacement stock, standardized hemostatic clamp trays, and institutional supply programs.

How do the ratchet and box-lock joint control intraoperative use?
The box-lock joint is the central hinge that keeps both arms aligned during opening and closure. The ratchet is the locking feature near the handles that holds the jaws at staged compression points. During use, the surgeon positions the serrated jaws around the selected pedicle or tissue bundle, closes the handles to the required pressure, and engages the ratchet. This allows Carmalt Artery Forceps to maintain hemostatic compression while ligatures, scissors, retractors, or suction are used in the same field. Release is controlled by separating the ratchet teeth before reopening the jaws. Cleaning around the box lock and ratchet is important because retained blood, fat, or tissue debris can affect locking and release.

Are these forceps suitable for reusable sterile processing and distributor stock?
Yes, Carmalt Artery Forceps are reusable German stainless steel instruments suitable for hospital, clinic, veterinary, distributor, surgical center, and operating room supply workflows. After use, the serrated jaws, box lock, and ratchet should be opened and inspected so blood, tissue residue, fat, lint, and suture debris can be removed before sterilization. Processing can include manual cleaning, ultrasonic decontamination, washer-disinfector exposure, drying, joint inspection, ratchet review, packaging, and steam autoclaving. The 1-piece MOQ supports replacement ordering for clinics, procedure rooms, abdominal surgery trays, gynecology sets, and veterinary operating packs. OEM availability supports distributor branding, institutional packing, and bulk purchasing programs. The 1-year warranty and return and replacement service support procurement teams managing recurring hemostatic forceps inventory.
