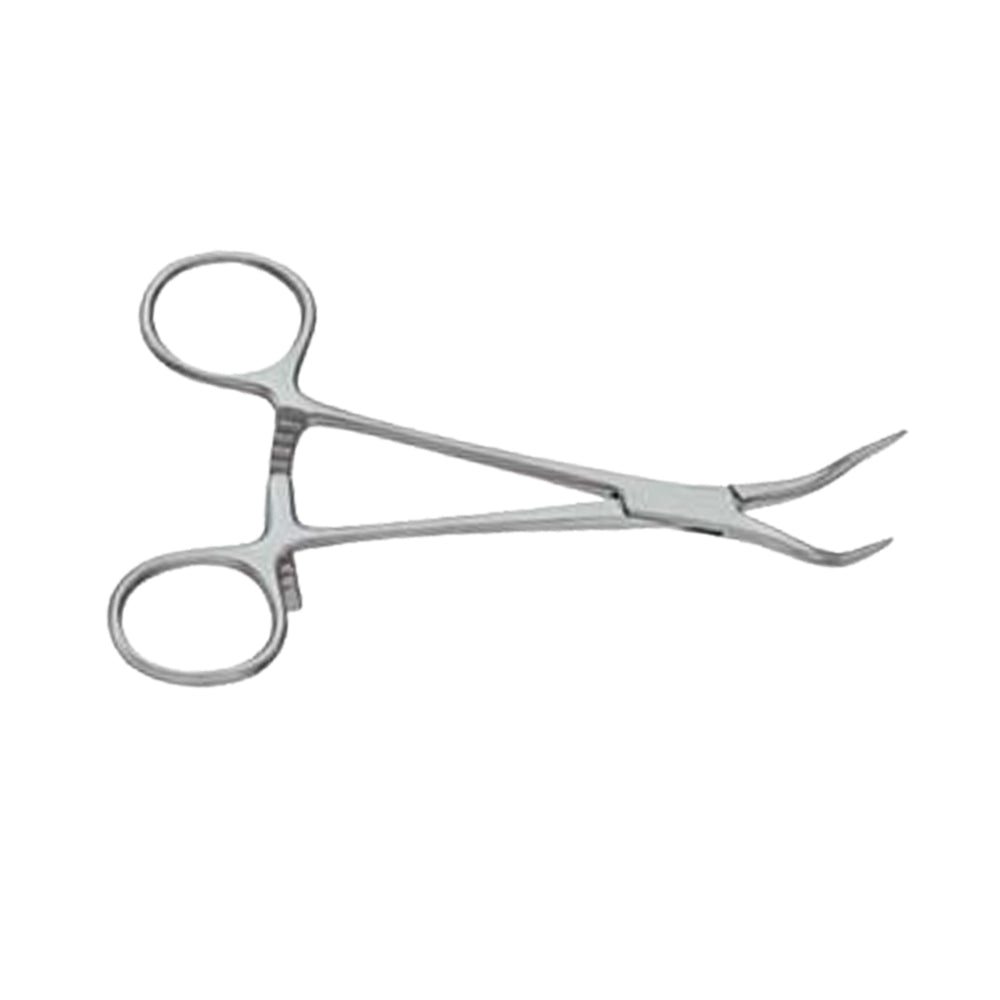

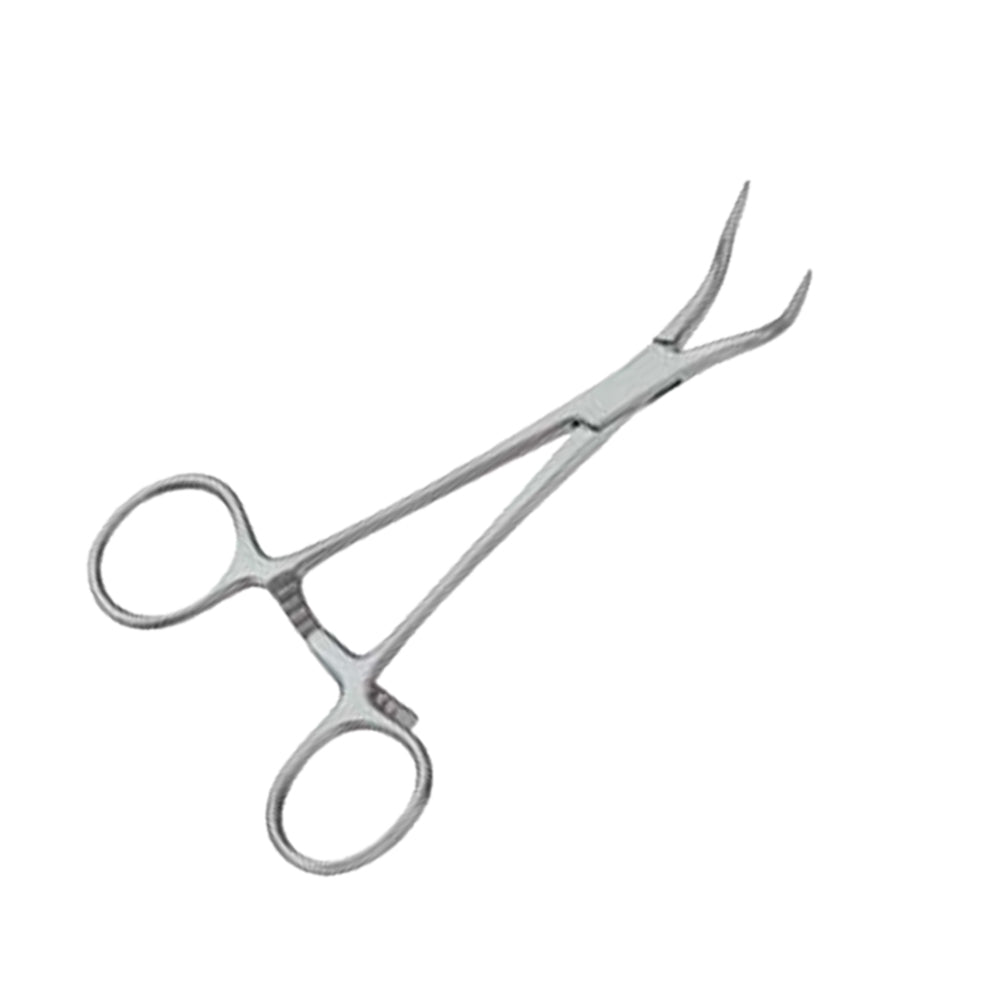

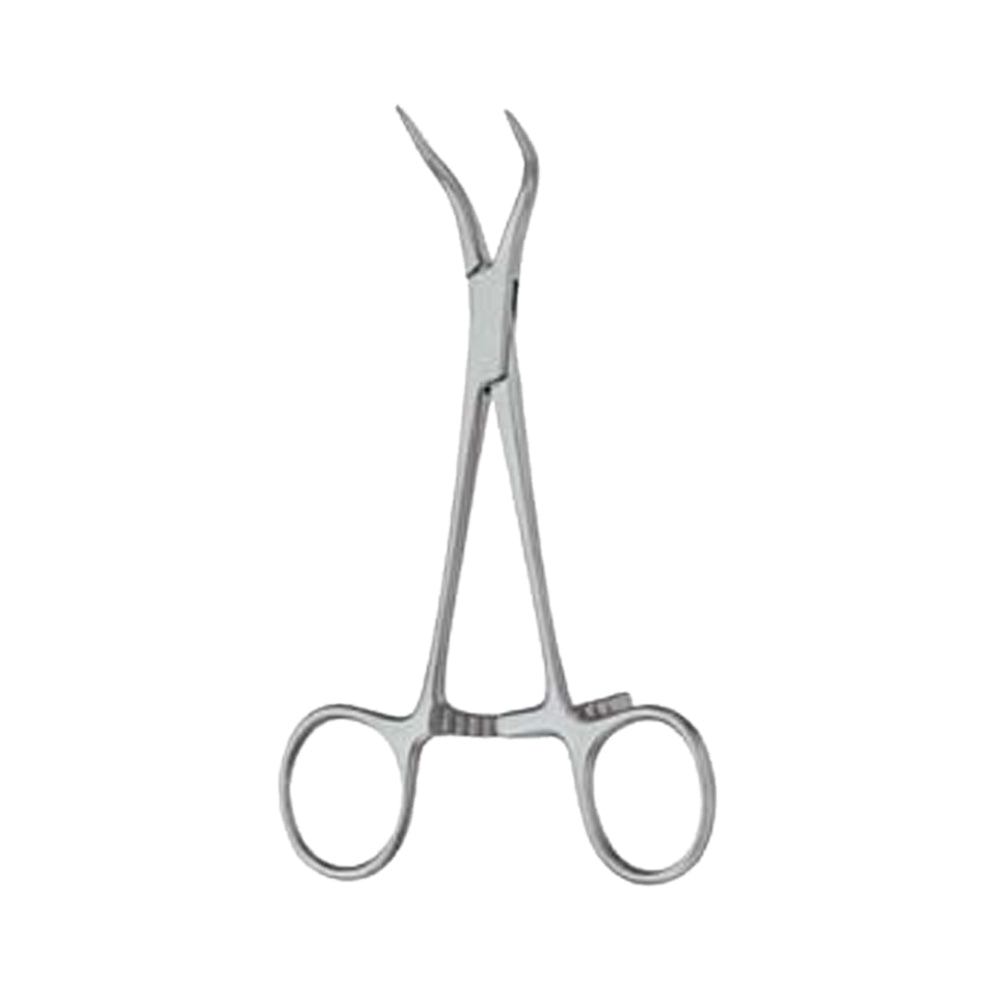

Bone Clamp 14.5cm Curved with Extra Long Ratchet Orthopedic Instrument

Bone Clamp 14.5cm Curved – Extra-Long Ratchet Precision Skeletal Stabilizer

The premier orthopedic instrument for high-stability fracture reduction, cortical grasping, and temporary fixation of intermediate bone fragments. The Bone Clamp 14.5cm Curved is a specialized, high-tension grasping tool engineered to solve the critical intraoperative challenge of holding displaced bone segments in precise anatomical alignment while plates and screws are applied. Featuring deeply curved, precision-milled jaw tips paired with an extended-length multi-position ratchet, this tool acts as a mechanical necessity for surgical teams performing ORIF (Open Reduction Internal Fixation) on small-to-intermediate fractures, hand/foot reconstructions, and pediatric trauma. Its optimized 14.5cm frame allows surgeons to work in confined anatomical spaces while maintaining a rock-solid, non-slip grip on dense cortical bone.

Key Features for Professional Medical Management

• Precision-Curved Claw Jaws: Engineered with high-torque, curved grasping tips that are contoured to hug the cylindrical geometry of long bones. This specialized shape is a mechanical necessity for reaching around the posterior aspect of a bone, ensuring an even, centered grip that does not slide off the cortical surface during reduction.
• Extra-Long Multi-Step Ratchet System: Equipped with an elongated, high-density locking rack. This mechanical necessity allows for fine-tuned, incremental compression, letting the surgeon achieve the exact amount of “bite” needed to hold a bone fragment perfectly still without over-compressing fragile structures.
• Compact 14.5cm (5.7”) Tactical Profile: Built with a slim, high-leverage chassis that fits comfortably in the palm. This compact geometry is a mechanical necessity for performing detailed reductions in narrow, deep surgical corridors (such as the forearm or ankle), where larger clamps would crowd the operative field.
• Textured Bone-Engaging Tips: The interior surfaces of the curved jaws feature deep, precision-milled teeth. This aggressive gripping texture is a mechanical necessity for providing an absolute physical lock against hard, smooth bone cortex, preventing the clamp from shifting under the rotational forces of drilling or driving screws.
• Non-Reflective Aura-Satin Finish: Treated with a refined matte satin coating across all surfaces. This treatment is a mechanical necessity for diffusing harsh, high-intensity rays from fiber-optic surgical lamps, protecting the surgeon from blinding visual glare during long, delicate plate-fixation steps.
• Surgical-Grade Stainless Steel Alloys: Forged from premium, high-tensile, bio-inert medical steel. This ultra-durable material composition is a mechanical necessity for resisting corrosion, maintaining structural integrity, and surviving endless hospital autoclave reprocessing cycles.

Detailed Product Description

The Bone Clamp (14.5cm Curved with Extra-Long Ratchet) represents the industry standard for precision skeletal management in orthopedic trauma and reconstruction. During fracture reduction, the goal is to precisely align bone fragments so they can be permanently secured with implants. This clamp functions as an “extra pair of hands,” holding the fragments in the exact calculated position while the surgeon drills guide holes, clears debris, or positions temporary K-wires. The curved jaw design is particularly effective at “snaking” behind bone shafts, allowing the instrument to reach locations that straight-jawed clamps cannot engage, providing 360-degree stability on intermediate long bones.

At its core, the tool is engineered for structural safety and high clinical reliability. The extra-long ratchet is a mechanical necessity for surgeons who need to adjust their grip incrementally; it ensures the clamp stays locked firmly in place once set, allowing the surgeon to release their hands and concentrate on applying hardware. By keeping the operative window clear and the bone fragments perfectly immobile, this clamp helps shorten procedural time and minimize the risk of fragment displacement, a mechanical necessity for achieving successful, stable long-term bone healing.

Built to exceed international quality standards for medical hardware, this heavy-duty bone clamp is fully reusable and easy to decontaminate. Its robust unibody construction, heavy-duty pivot hinges, and weld-free frame make it an indispensable asset for achieving safe, organized, and high-precision results across all orthopedic sports medicine, skeletal trauma, and reconstruction settings.

Technical Specifications & Geometry

Feature Details

Instrument Style Curved-Jaw Bone Reduction & Stabilization Clamp

Overall Length 14.5cm (145mm / 5.7”)

Jaw Profile Precision-Milled, Deep-Curved Bone Claws

Handle Mechanism Multi-Step Extra-Long Ratchet Rack

Surface Finish Non-Reflective Glare-Reducing Aura-Satin

Material Base Premium Bio-Inert Surgical Stainless Steel

Reprocessing Limits Fully Autoclavable / High-Vacuum Steam-Safe

Certifications CE, ISO, Professional Surgical Grade

Primary Clinical Applications:

• Intermediate Fracture Reduction: Aligning displaced radius, ulna, fibula, or metacarpal/metatarsal fractures for plate-and-screw stabilization.
• Temporary Bone Alignment: Holding bone fragments in position while the surgeon inserts provisional K-wires or drill guides.
• Corrective Osteotomy Fixing: Securely grasping cut bone segments at the precise angle calculated for limb-lengthening or deformity correction.
• Joint Reconstruction: Stabilizing small articular fragments while the surgeon prepares the site for internal fixation hardware.
• Bone Graft Positioning: Holding harvested autograft bone blocks firmly against the recipient site during fusion procedures.

Why Orthopedic Trauma Surgeons Choose this Bone Clamp?

• Anatomical Reach Advantage: The deep, curved jaw profile is a mechanical necessity for engaging bone fragments that are tucked behind neurovascular structures or deep within soft tissue.
• Fine-Tune Security: The extra-long ratchet provides superior “feel” and incremental locking adjustment, serving as a mechanical necessity for setting exactly the right pressure on dense vs. osteoporotic bone.
• Slip-Free Cortical Grip: The precision-milled jaw teeth are a mechanical necessity for ensuring the clamp stays fixed on the bone shaft, even when subjected to the significant rotational forces of drill bits and screw drivers.
• Seamless Sterilization Security: The solid, weld-free construction contains no hidden internal cavities or springs, acting as a mechanical necessity for rapid, reliable decontamination in central sterile supply departments.

FAQ Section

Q: Can this 14.5cm clamp be used for heavy femur or pelvic fracture reduction?

A: No. This compact 14.5cm clamp is optimized for intermediate-sized bones like the radius, ulna, fibula, and metacarpals. Using it on large, high-torque femoral shafts can overstress the pivot pin or jaw tips; for large adult long bones, heavier-pattern Verbrugge or large-pattern bone-holding clamps are required.

Q: Will the teeth of the clamp leave marks on the bone surface?

A: Yes, the teeth are designed to grip the bone cortex firmly, which will inevitably leave tiny indentations on the bone surface. This is a standard and acceptable trade-off in orthopedic trauma to ensure the clamp does not slip off during critical fixation steps.

Q: How do you prevent the ratchet mechanism from locking up after multiple cycles?

A: Regular application of medical-grade instrument lubricant (“instrument milk”) to the ratchet rack and pivot hinge is a mechanical necessity. Keeping the rack clean of bone debris and blood before autoclaving will prevent the mechanism from jamming or sticking.

Q: Does the extra-long ratchet require a specific technique to release?

A: It should open smoothly with standard finger-ring pressure. If the lock feels “stuck,” it is a professional standard to inspect the rack for debris rather than forcing it, as this is a mechanical necessity to preserve the fine-tooth integrity of the locking system.

Q: What is the approved sterilization protocol for this clamp?

A: The premium surgical steel construction is a mechanical necessity built for rigorous hospital reuse. It is fully rated to undergo standard high-vacuum steam autoclave cycles at 134°C (273°F). Opening the jaws fully during the sterilization cycle is a mechanical necessity for ensuring total steam penetration across the internal ratchet teeth.
