Lahey Gall Duct Tissue Forceps for 19.1-19.7cm Biliary Tissue Grasping

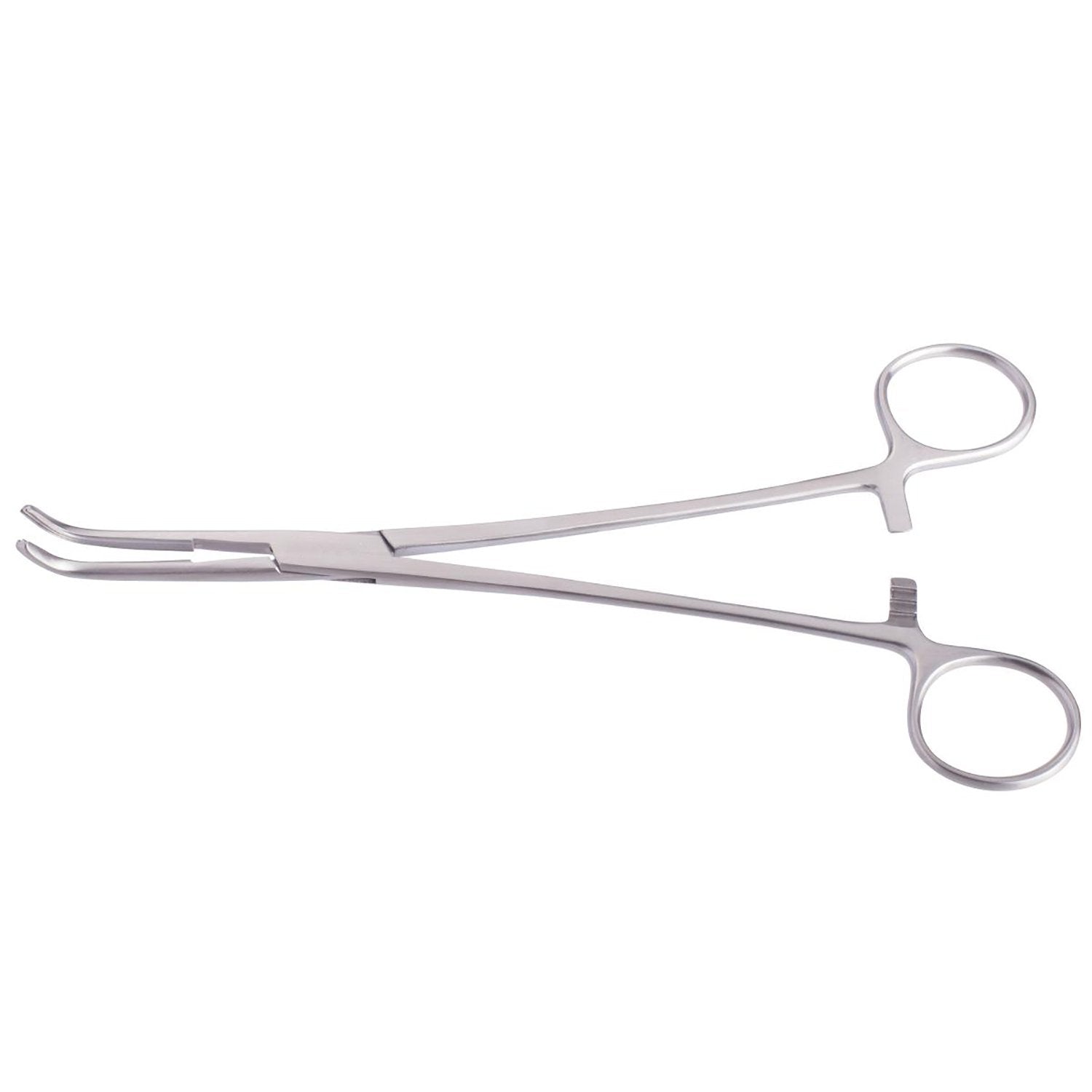

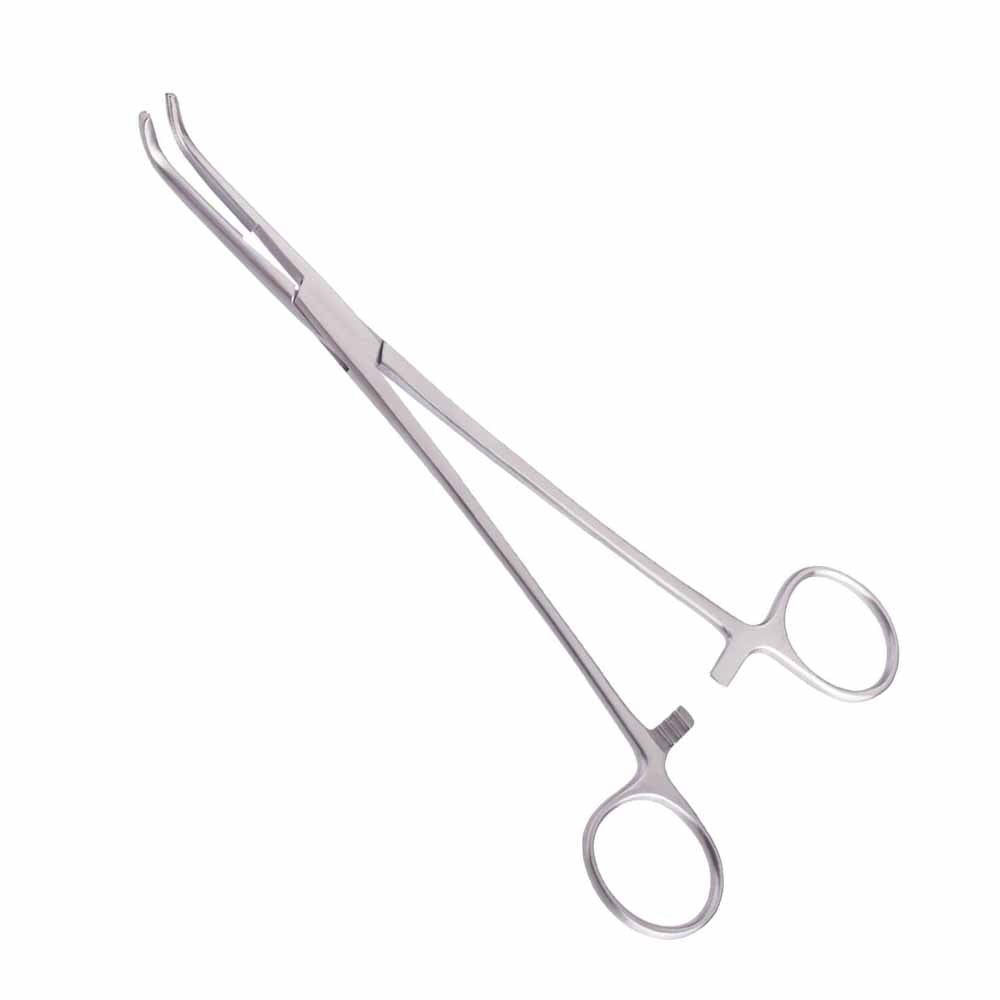

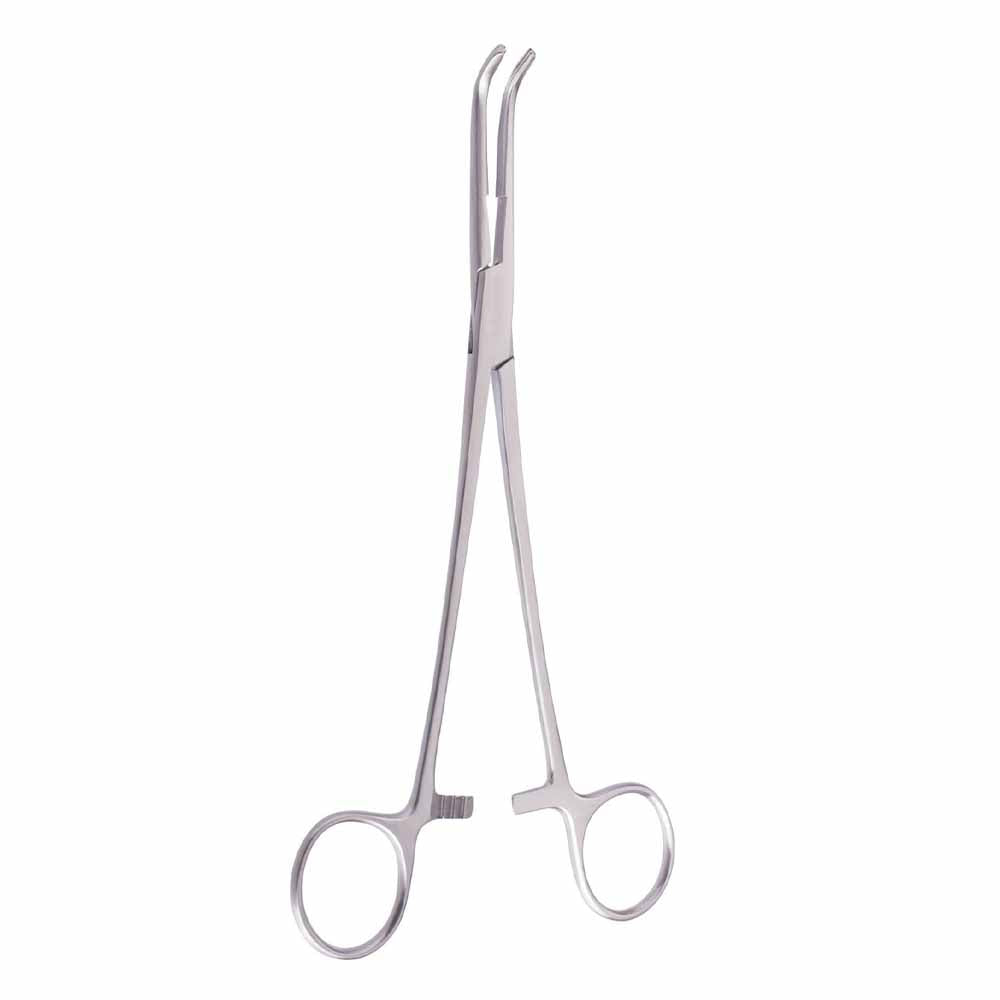

Lahey Gall Duct Tissue Forceps, SKU PS-OT-0873, are reusable biliary tissue forceps manufactured from German stainless steel for controlled grasping, traction, ductal tissue stabilization, gallbladder neck handling, cystic duct exposure, and soft-tissue positioning during open gallbladder and biliary surgery. The available variants are PS-1358 right angle with longitudinal serrations, cross-serrated tips, and 7 1/2" (19.1cm) overall length, and PS-1357 with longitudinal serrations and 7 3/4" (19.7cm) overall length. The image shows angled curved jaws, long shanks, a box-lock joint, finger-ring handles, and a ratchet locking mechanism for maintained closure after placement. General surgeons, hepatobiliary surgeons, gastrointestinal surgeons, pediatric surgeons, veterinary surgeons, and operating room staff use this pattern during open cholecystectomy, common bile duct exploration, cystic duct handling, choledochotomy support, gallbladder traction, Calot’s triangle exposure, biliary stone access, T-tube placement support, ductal tissue stabilization, ligature placement, and closure-stage field control in hospitals, surgical centers, veterinary theaters, teaching laboratories, and reusable biliary procedure trays.

Right-Angle Jaw Geometry and Serrated Tissue Purchase

The working action is produced by two opposing jaws joined through a box-lock joint that converts ring-handle compression into aligned distal closure. The right-angle model allows the surgeon to approach ductal tissue from the side of the operative field, which is useful when the cystic duct, gallbladder neck, common bile duct region, or fibrous biliary tissue lies behind retractors, suction, or adjacent clamps. Longitudinal serrations run along the jaw surface to improve directional grip during traction and stabilization. Cross-serrated tips on PS-1358 add distal purchase when the operator needs a more secure hold at the end of the jaw. The PS-1357 model uses longitudinal serrations for linear tissue engagement during biliary exposure and soft-tissue handling. Long shanks keep the handles away from the central hepatobiliary working area. The box lock maintains jaw alignment under compression. The ratchet locks at staged closure points, allowing the instrument to hold selected tissue while ligatures, scissors, dissectors, suction, or needle holders remain active.

Biliary Tissue Control During Open Gallbladder Procedures

During open cholecystectomy, Lahey Gall Duct Tissue Forceps are applied after exposure of the gallbladder, cystic duct region, and surrounding tissue planes. The jaws stabilize selected tissue while the surgeon defines Calot’s triangle, maintains the gallbladder neck under control, and coordinates dissection around ductal and vascular structures. In common bile duct exploration, the instrument supports choledochotomy exposure, ductal tissue handling, stone access, duct inspection, and T-tube placement support. The serrated working surface helps maintain grasp while ligature placement, suture handling, or controlled traction is performed near the biliary field. PS-1358 is useful when right-angle access is required around tissue planes or when distal cross-serrated purchase is needed. PS-1357 supports direct longitudinal grip during gallbladder and ductal tissue stabilization. Veterinary surgeons can use the same mechanism during abdominal biliary procedures where precise tissue handling and locked traction are required. The forceps are positioned after the target tissue is visually identified and seated securely within the jaws.

PS-1358 and PS-1357 Model Selection

PS-1358 right angle, 7 1/2" (19.1cm), is selected when the working end must approach cystic duct tissue, gallbladder neck tissue, or a fibrous biliary structure from an offset angle. Its longitudinal serrations support directional traction, while the cross-serrated tips provide additional distal grip for controlled tissue purchase during duct exposure, ligature placement, or localized stabilization. PS-1357, 7 3/4" (19.7cm), is selected when the surgeon needs a slightly longer instrument with longitudinal serrations for linear grasping in open gallbladder, common bile duct, and hepatobiliary workflow. Both variants use ring handles, a box-lock joint, and ratchet closure, so selection depends on access geometry, jaw-tip purchase requirement, tissue orientation, wound depth, and hand clearance. The 19.1cm right-angle model supports side-entry placement around tissue planes and instruments. The 19.7cm longitudinal-serrated model supports direct handling when the operative target lies more in line with the shaft. Stocking both patterns supports biliary trays, gastrointestinal sets, veterinary abdominal packs, and teaching-lab instruments.

German Steel Reprocessing and Procurement Documentation

German stainless steel construction supports repeated clinical use by maintaining jaw alignment, serration definition, corrosion resistance, box-lock stability, and ratchet function through cleaning and steam sterilization cycles. Satin, dull, and mirror finish options allow procurement teams to match surface preference with glare control, visual inspection, and existing biliary or general surgery tray standards. After use, the jaws should be opened and cleared of blood, bile residue, tissue fragments, fat, suture debris, dressing fibers, and lint before enzymatic cleaning. Processing can include manual brushing, ultrasonic decontamination, washer-disinfector exposure, rinsing, drying, box-lock inspection, ratchet review, serration inspection, tip inspection, packaging, and steam autoclave sterilization according to facility protocol. The right-angle jaw, cross-serrated tips, longitudinal grooves, joint area, and locking teeth require careful cleaning because retained residue can affect grip, closure, and release. CE marking, ISO 13485 documentation, and FDA procurement context support purchasing records for hospitals, clinics, surgical centers, veterinary facilities, distributors, and teaching programs. Class I classification, reusable construction, carton-box packing, 1-piece MOQ, OEM availability, 1-year warranty, and return and replacement service support institutional replacement ordering.

How are Lahey Gall Duct Tissue Forceps different from Mixter Gall Duct Forceps?
Mixter Gall Duct Forceps are the closest alternative because both instruments are used in biliary surgery. Mixter patterns are selected for right-angle passage around ducts, vessels, and deep tissue planes. Lahey Gall Duct Tissue Forceps are selected for grasping, traction, and stabilization of gallbladder or ductal tissue during open biliary workflow. The PS-1358 variant adds cross-serrated tips for more secure distal tissue purchase. Both instruments use ring handles, a box-lock joint, and ratchet-controlled closure. The clinically relevant difference is procedural role: Mixter is primarily a right-angle dissector and passer, while Lahey is a tissue-holding forceps for controlled biliary grasp.

How should PS-1358 and PS-1357 be selected?
PS-1358 at 19.1cm is selected when right-angle access is needed around the cystic duct, gallbladder neck, Calot’s triangle tissue, or a fibrous biliary structure. Its cross-serrated tips provide additional distal purchase when the surgeon needs a secure end-jaw hold. PS-1357 at 19.7cm is selected when a slightly longer longitudinal-serrated model is preferred for direct tissue handling in open gallbladder or common bile duct procedures. Lahey Gall Duct Tissue Forceps should be matched to access angle, ductal orientation, wound depth, tissue density, and available hand clearance. The right-angle model supports side-entry placement around adjacent instruments. The longitudinal-serrated model supports direct controlled grasp when the tissue lies more in line with the shaft.

What do CE, ISO 13485, and FDA details mean for procurement?
CE documentation supports international conformity records for reusable surgical instrument purchasing. ISO 13485 indicates manufacturing under medical device production controls covering inspection, process consistency, and traceability. FDA procurement context supports U.S. purchasing files for Class I reusable surgical instruments. Lahey Gall Duct Tissue Forceps can be entered into hospital, clinic, veterinary, distributor, and operating room catalogs with documented material, finish, model variants, warranty, MOQ, OEM availability, and after-sale service. These records support purchasing teams, receiving departments, and sterile processing units during inventory approval. The certification profile supports tender files, replacement stock, biliary surgery trays, gastrointestinal sets, veterinary abdominal packs, and institutional supply programs.

How do the ratchet and box-lock joint control intraoperative use?
The box-lock joint is the central hinge that keeps both forceps arms aligned during opening and closure. The ratchet is the locking feature near the handles that holds the jaws at staged compression points. During use, the surgeon positions the serrated jaws on the selected gallbladder, cystic duct, ductal tissue, or fibrous structure, then closes the handles to the required purchase. This allows Lahey Gall Duct Tissue Forceps to maintain biliary tissue control while ligatures, scissors, suction, retractors, dissectors, or needle holders are used in the same field. Release is controlled by separating the ratchet teeth before reopening the jaws. Cleaning around the box lock, longitudinal serrations, cross-serrated tips, and ratchet is important because retained blood, bile residue, tissue fragments, or lint can affect locking and release.

Are these forceps suitable for reusable sterile processing and distributor stock?
Yes, Lahey Gall Duct Tissue Forceps are reusable German stainless steel instruments suitable for hospital, clinic, veterinary, distributor, surgical center, and operating room supply workflows. After use, the serrated jaws, right-angle tip region, box lock, and ratchet should be opened and inspected so blood, bile residue, tissue fragments, fat, lint, and suture debris can be removed before sterilization. Processing can include manual cleaning, ultrasonic decontamination, washer-disinfector exposure, drying, joint inspection, ratchet review, serration inspection, tip review, packaging, and steam autoclaving. The 1-piece MOQ supports replacement ordering for clinics, procedure rooms, hepatobiliary trays, gastrointestinal sets, and veterinary operating packs. OEM availability supports distributor branding, institutional packing, and bulk purchasing programs. The 1-year warranty and return and replacement service support procurement teams managing recurring gall duct tissue forceps inventory.
