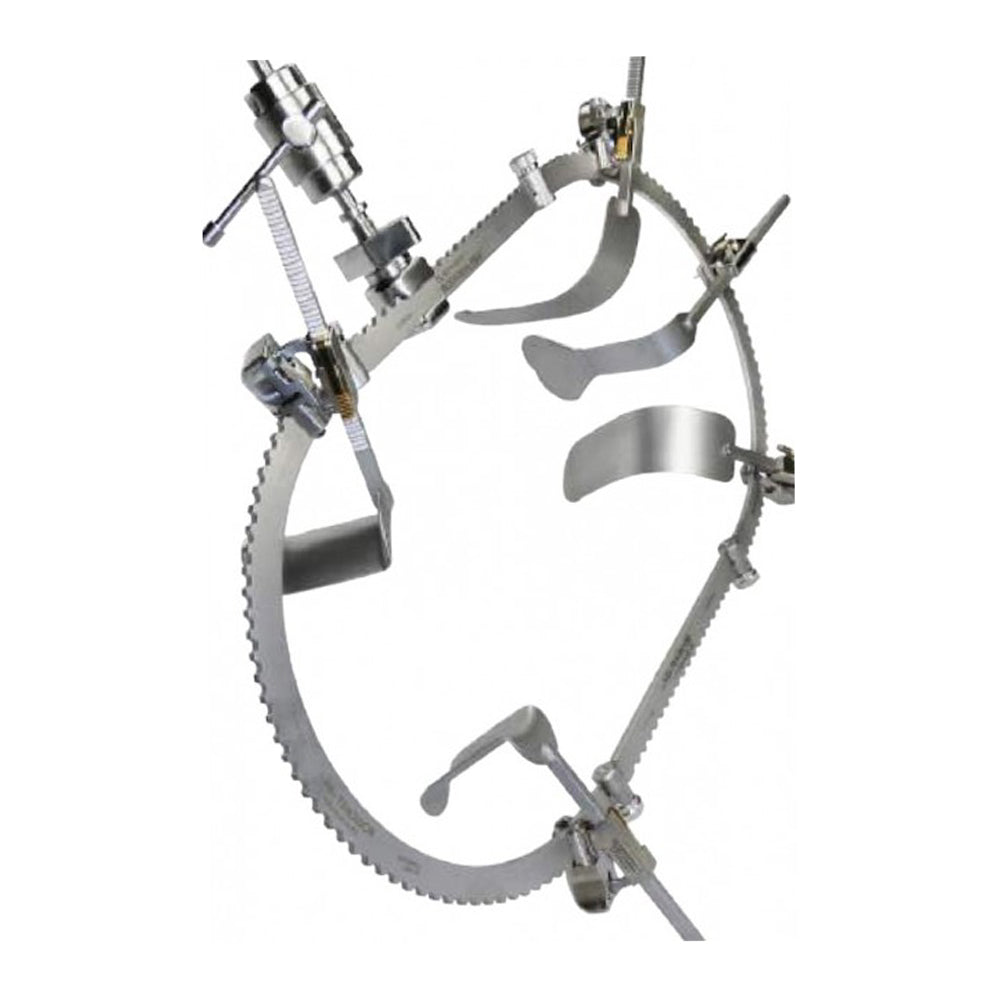

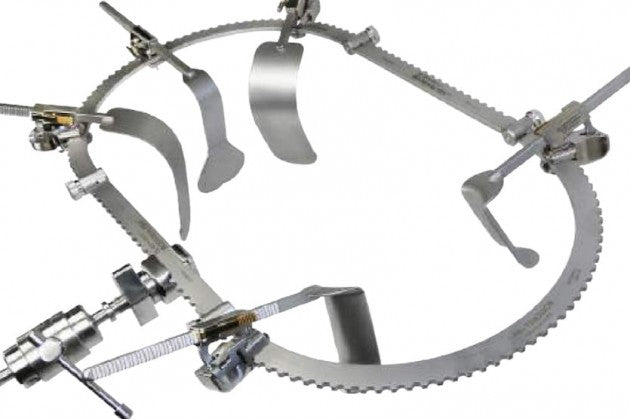

Bookwalter Compatible Abdominal Retractor Set – Medical-Grade SS Ring-and-Blade Retractor System

The Bookwalter Compatible Abdominal Retractor Set from Peak Surgicals is a table-mounted, self-retaining ring-and-blade retractor system in medical-grade stainless steel, designed to function with the Bookwalter retractor system's ring frame and ratchet mechanism architecture for sustained hands-free tissue retraction during open abdominal surgical procedures. The set is used by general surgeons, colorectal surgeons, urologists, and gynaecological surgeons in hospital operating theatres performing open laparotomy, colorectal resection, radical hysterectomy, open prostatectomy, and other abdominal and pelvic procedures requiring multi-directional wound retraction throughout the duration of the case.

Bookwalter-Compatible Design: Ring-and-Blade Architecture for Abdominal Retraction

The Bookwalter retractor system uses a rigid ring frame mounted to the operating table via a post coupling and adjustable arm, to which interchangeable retractor blades are attached at any position around the ring circumference using ratchet locking mechanisms. The blades remain locked in position under wound edge tension for the full duration of the procedure without manual support, freeing the surgical assistant's hands for dissection, haemostasis, and suction. This Bookwalter-compatible set from Peak Surgicals follows the same ring-and-blade architecture: the table-mounted frame or ring is used as the stable anchor, and the retractor blades attach via ratchet mechanisms at positions around the ring to retract the wound edges, abdominal wall, and visceral structures simultaneously at multiple planes. The compatible design allows the blades and components in this set to be used with existing Bookwalter frames where additional blade coverage is needed, or as a complete standalone ring-and-blade retractor system for general abdominal surgery.

Retractor Blade Types for Open Abdominal Surgery

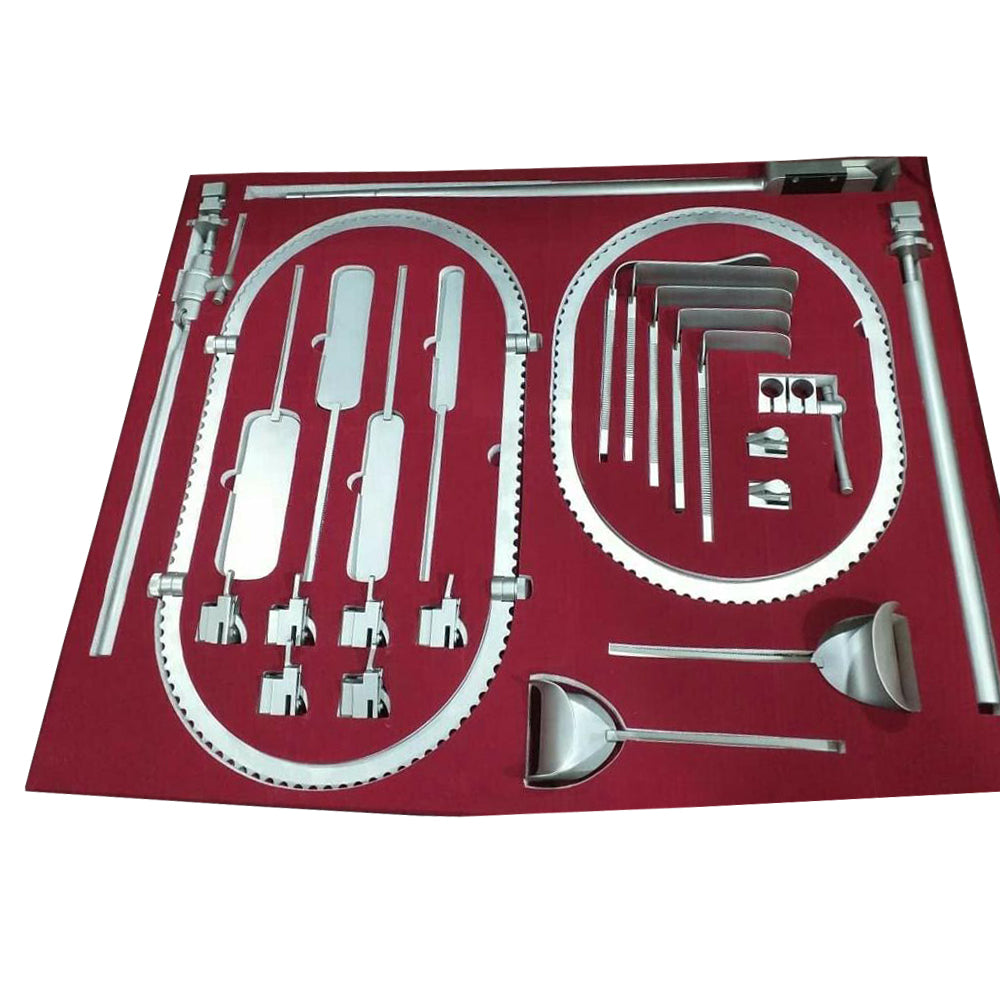

The Bookwalter Compatible Abdominal Retractor Set includes the range of blade profiles required for the different retraction tasks encountered in open abdominal surgery. Malleable retractor blades can be shaped intraoperatively to conform to the anatomical contours of visceral structures, wound angles, and packing configurations, making them the most versatile blades for visceral displacement and deep wound packing. Rigid Kelly-style blades provide firm, consistent wound edge retraction at defined positions around the ring, holding the abdominal wall and peritoneal edge without the shape adjustment needed for malleable blades. The Harrington retractor's curved profile is suited to liver and spleen retraction in upper abdominal procedures, where a flat or angled blade cannot provide the broad, atraumatic surface contact needed for sustained visceral displacement. Together, the blade range in this set covers the full spectrum of retraction requirements from superficial wound edge retraction to deep pelvic and retroperitoneal exposure.

Ratchet Mechanisms for Intraoperative Blade Adjustment

The ratchet mechanisms in the Bookwalter-compatible system allow each blade to be positioned at any point on the ring circumference, locked at a specific retraction tension, and repositioned intraoperatively as the operative field changes without dismantling the ring frame. Standard ratchet mechanisms lock the blade perpendicular to the ring surface — suitable for wound edge and abdominal wall retraction. Tilt ratchet mechanisms allow the blade to be angled toward the wound, enabling directed retraction into specific anatomical planes such as the deep pelvis, presacral space, or retroperitoneal tissue during dissection. The combination of standard and tilt mechanisms in the set allows the blade array to be configured for both superficial and deep retraction requirements across the same ring without changing the frame position.

Medical-Grade Stainless Steel for Repeated Surgical Use

All components in the Bookwalter Compatible Abdominal Retractor Set are manufactured from medical-grade stainless steel, providing the structural rigidity required for sustained tissue retraction under the mechanical load of wound edge tension and intraoperative repositioning across prolonged open abdominal procedures. The malleable blades can be reshaped intraoperatively without fatigue fracture. All components are compatible with standard autoclave sterilization protocols used in licensed hospital operating theatre environments.

CE Mark, ISO 13485, and FDA Certification for Surgical Instrument Procurement

The Bookwalter Compatible Abdominal Retractor Set is manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and production consistency for surgical instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US-based hospitals, surgical centers, and operating theatre departments requiring verified regulatory documentation for capital instrument set purchases.

Product Specifications

Frequently Asked Questions

What does "Bookwalter compatible" mean for this retractor set?
Bookwalter compatible means the retractor blades and ratchet mechanisms in this set are dimensioned and designed to work with the ring-and-blade architecture of the Bookwalter retractor system — the same oval or segmented ring frame, post coupling, and ratchet attachment interface — without being the original Bookwalter product manufactured by Codman/Integra. This means the blades in this set can be used to supplement or replace individual blades in an existing Bookwalter frame setup, or the set can be used as a complete standalone ring-and-blade retractor system in its own right. The compatible design allows procurement departments at hospitals and surgical centers that already use Bookwalter frames to acquire additional blades and ratchet mechanisms at a lower per-component cost without sacrificing the ring-mounting interface they already work with.

What surgical procedures is this set used for?
The Bookwalter Compatible Abdominal Retractor Set is used in any open abdominal surgical procedure requiring sustained, multi-directional hands-free tissue retraction. Primary indications include open colorectal surgery (anterior resection, hemicolectomy, abdominoperineal resection), open radical prostatectomy and radical cystectomy for urological oncology, open radical hysterectomy and pelvic exenteration for gynaecological oncology, hepatobiliary and pancreatic surgery requiring simultaneous upper abdominal and deep visceral retraction, exploratory laparotomy, hernia repair involving the abdominal wall, and aortic and vascular procedures where retroperitoneal exposure requires sustained bilateral wound edge retraction throughout the procedure.

How does this set differ from the Bookwalter Retractor Set also available from Peak Surgicals?
Both sets are Bookwalter-system ring-and-blade retractor sets in medical-grade stainless steel for open abdominal surgery, but they differ in component inventory and price point. The Bookwalter Retractor Set ($2,528.90) is the full-configuration set with a confirmed 15-component list including specific sizes and quantities of Kelly retractors (4 sizes), malleable retractors (3 pieces), a Balfour retractor, a Harrington retractor, a Gelpi retractor, tilt and standard ratchet mechanisms (8 total), a post coupling, and a sterilization box. The Bookwalter Compatible Abdominal Retractor Set ($2,145.00) is the compatible-system alternative at a lower price — confirm the exact blade types and quantities in your Shopify admin for this listing before publishing, as the component list was not fully detailed on the live product page. Both sets are suitable for the same operative indications.

Can blades from this set be mixed with blades from the full Bookwalter Retractor Set?
Yes — because both sets use the same Bookwalter-compatible ring-and-ratchet interface, blades and ratchet mechanisms from both sets are interchangeable on the same ring frame. This means a facility that owns the full Bookwalter Retractor Set can use individual blades from this compatible set to supplement their inventory where specific blade profiles or sizes are needed for a particular procedure, or where blade replacement is required due to wear. Contact Peak Surgicals for advice on individual blade replacement ordering by blade type.

What certifications does this set carry?
The Bookwalter Compatible Abdominal Retractor Set is manufactured under CE Mark, ISO 13485, and FDA compliant quality standards. ISO 13485 certification confirms Peak Surgicals operates a documented quality management system covering design control, material traceability, and manufacturing consistency for surgical instruments. CE Mark confirms conformity with European medical device regulations, and FDA compliance supports procurement for US hospitals, surgical centers, and operating theatre departments requiring verified regulatory documentation.

Can individual blades or components be ordered separately?
Individual retractor blades and ratchet mechanisms from the Bookwalter-compatible range are available from Peak Surgicals as replacement or supplemental items. OEM manufacturing and custom blade configurations are also available for hospital procurement departments and surgical distributors requiring specific blade profile combinations, custom sizes, or packaging formats. Contact Peak Surgicals directly for individual component pricing, OEM specifications, or institutional procurement arrangements.
