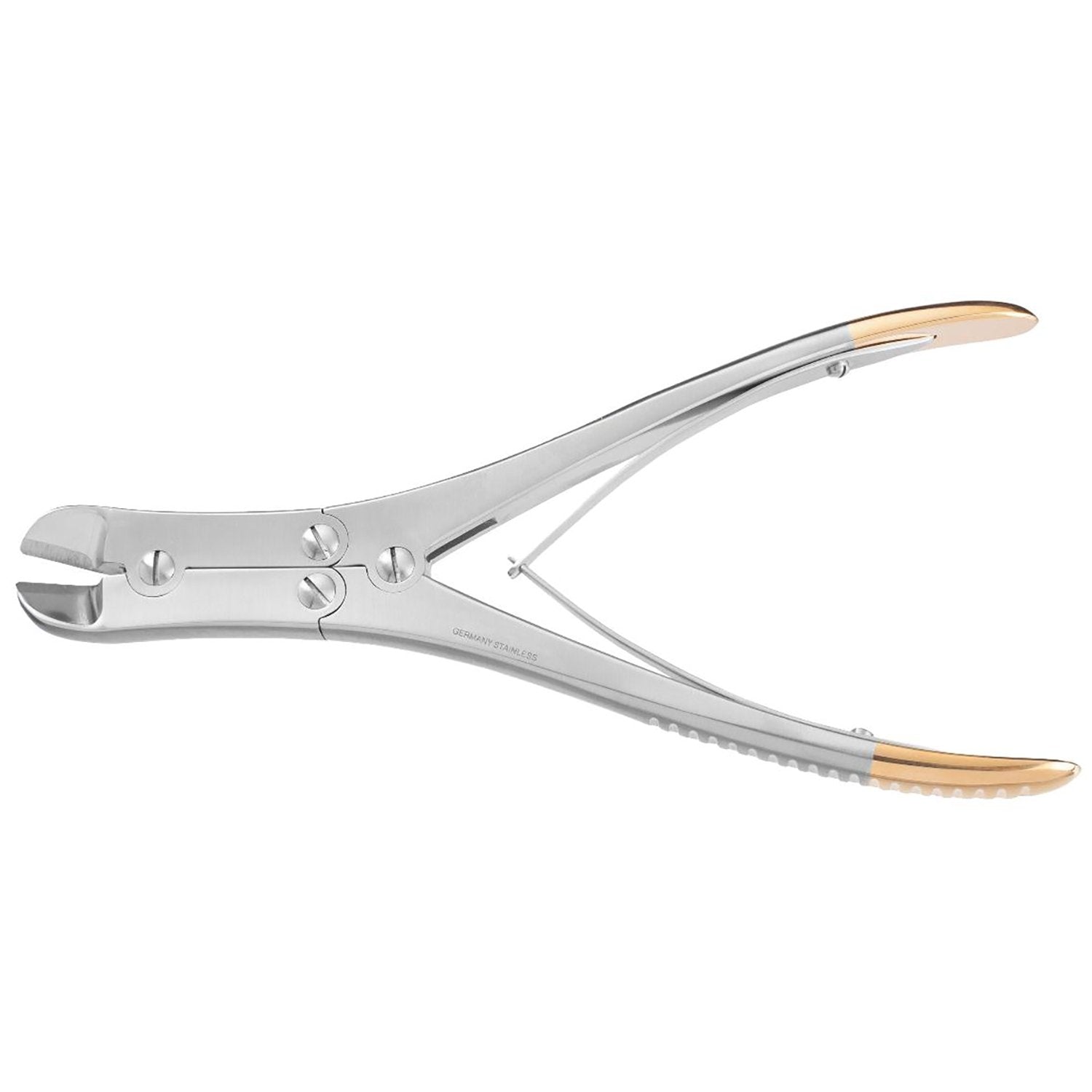

Orthopedic Wire Cutter with 12, 18, and 22 Inch Double-Action Wire Cutting Jaws

Orthopedic Wire Cutter, SKU PS-5509, is a German stainless steel bone wire cutter for controlled cutting of orthopedic fixation wire, cerclage wire, Kirschner wire ends, Steinmann pin ends, and metal fixation tails during fracture fixation and reconstructive bone procedures. The available lengths are 12 inch, 18 inch, and 22 inch, giving operating teams a choice between compact access, extended leverage, and deeper approach around larger fixation constructs. The instrument uses a double-action mechanism, screw-secured pivot assembly, heavy cutting jaws, spring-handle return, long curved handles, and textured grip zones for controlled compression during repetitive wire and pin management. It is used during patellar tension-band wiring, olecranon fixation, cerclage wiring, external fixation support, long-bone fracture reconstruction, metacarpal and metatarsal fixation, ankle and foot trauma procedures, and veterinary orthopedic repair. Orthopedic trauma surgeons, hand surgeons, podiatric surgeons, reconstructive teams, post-mortem services, veterinary surgeons, and operating room supply teams can place this reusable Class I cutter in hospital, clinic, teaching, and distributor-managed wire fixation trays.

Double-Action Cutting Mechanism and Jaw Control

The double-action mechanism increases cutting force by routing handle compression through linked pivots before the jaws close. This force path is suited to orthopedic wire and pin work because dense metal stock requires leverage beyond a simple plier-style hinge. The heavy terminal jaws seat around the exposed wire or pin end, then close in a controlled shearing motion once the surgeon confirms alignment. Screw-secured joints stabilize the linkage and help maintain opposing jaw contact during firm compression. The spring return separates the handles after each cut, allowing the surgeon to withdraw, inspect the remaining metal end, and reposition without manually opening the instrument. Long curved handles keep the hand away from plates, cerclage loops, tensioning devices, reduction clamps, and external fixation elements. Textured grip zones improve orientation during gloved handling when irrigation or blood is present in the field. The 12, 18, and 22 inch lengths preserve the same cutting principle while changing access distance, hand clearance, and leverage for progressively larger or deeper fixation tasks.

Fracture Fixation and Wire Management Workflow

In fracture fixation workflow, Orthopedic Wire Cutter is introduced after reduction, implant positioning, wire passage, pin insertion, or cable tensioning has established the intended construct. During patellar tension-band repair, the cutter shortens wire or pin ends after the figure-of-eight loop has been tightened and the twist has been oriented. In olecranon fixation, it trims fixation elements after compression has been achieved and the projected tail requires management before closure. In long-bone trauma, the longer versions provide reach around femoral, tibial, humeral, or veterinary large-bone constructs where hand clearance is limited by clamps and retractors. In hand and foot surgery, the shorter option supports metacarpal, metatarsal, phalangeal, tarsal, and ankle wire trimming without excessive bulk around compact anatomy. The instrument can also support external fixation pin adjustment after frame position has been checked. Each cut is followed by visual inspection, palpation for metal prominence, irrigation, and final confirmation that the remaining end does not interfere with dressing placement, implant seating, or soft-tissue closure.

Selection Across 12, 18, and 22 Inch Lengths

The 12 inch Orthopedic Wire Cutter is selected for hand, foot, ankle, patellar, olecranon, and small-fragment work where the surgeon needs controlled access without the length of a larger wire tool. It keeps the handles close enough for precise positioning while still providing more leverage than compact dental or light wire cutters. The 18 inch length is selected for medium-depth orthopedic trauma fields, larger cerclage constructs, and adult long-bone fixation where additional handle span improves cutting force. It is appropriate around femoral, tibial, humeral, and pelvic exposure when retractors, cable passers, or reduction forceps limit direct hand placement. The 22 inch length gives extended reach and stronger leverage for large-bone work, deeper operative corridors, post-mortem applications, and veterinary orthopedic procedures involving larger patients. Selection depends on metal diameter, working depth, available hand clearance, and whether the surgeon needs compact maneuverability or maximum leverage. Stocking all three sizes supports trauma carts, wire fixation sets, orthopedic reconstruction trays, post-mortem rooms, and veterinary instrument inventories.

German Steel, Finish Options, and Reprocessing

German stainless steel provides the rigidity, corrosion resistance, and cutting-edge stability required for repeated contact with orthopedic wire, pin material, hospital cleaning chemistry, and steam sterilization cycles. The listed finish options are satin, dull, and mirror, allowing facilities to match operating room lighting preference and tray appearance. Satin and dull surfaces reduce glare under surgical lamps, while mirror finish supports rapid receiving checks, count verification, and set assembly. After surgery, the jaws, screw heads, double-action linkage, spring, and textured handle recesses require prompt cleaning so blood, tissue residue, and fine metal particles do not dry inside the mechanism. Standard processing includes rinsing, manual brushing, ultrasonic cleaning, washer-disinfector treatment, drying, lubrication of moving joints, jaw alignment inspection, packaging, and steam autoclave exposure according to facility protocol. CE marking, ISO 13485 manufacturing controls, and FDA procurement context support Class I reusable instrument purchasing for hospitals, clinics, distributors, and operating room supply departments. MOQ of one piece, OEM availability, one-year warranty, and return or replacement service support replacement orders and new tray assembly.

How does Orthopedic Wire Cutter differ from Orthopedic Pin Cutter?
Orthopedic Wire Cutter is designed for cutting fixation wire, cerclage wire, and metal tails used in fracture fixation constructs. Orthopedic Pin Cutter is selected for stronger cylindrical stock such as larger K-wires, Steinmann pins, and orthopedic fixation pins. The wire cutter uses long leverage and heavy cutting jaws for repeated wire management across trauma and reconstruction trays. The pin cutter commonly uses a cup-style head that seats around thicker round pin material before compression. Orthopedic Wire Cutter is more appropriate when the procedure involves tension-band wiring, cerclage loops, or wire trimming across long-bone and small-fragment work. Both instruments can appear in the same orthopedic set, but their jaw geometry and intended metal profile are different.

Which 12, 18, or 22 inch length should be selected?
Orthopedic Wire Cutter is available in 12 inch, 18 inch, and 22 inch lengths. The 12 inch size is selected for hand, foot, ankle, patellar, olecranon, and compact small-fragment fixation where close control is required. The 18 inch size is suited to medium-depth trauma work and adult long-bone constructs where more leverage and hand clearance are needed. The 22 inch size is selected for deeper operative fields, larger cerclage constructs, post-mortem work, and veterinary orthopedic procedures involving larger patients. Size choice depends on working depth, wire diameter, surrounding implants, retractor position, and whether the surgeon needs compact control or extended leverage. Hospitals can stock all three lengths to cover mixed orthopedic, trauma, veterinary, and wire fixation workflows.

How do CE, ISO 13485, and FDA details support procurement?
Orthopedic Wire Cutter is supplied with CE, ISO 13485, and FDA procurement context for Class I reusable surgical instrument purchasing. CE marking supports conformity documentation for healthcare markets requiring European medical device references. ISO 13485 indicates manufacturing under a medical device quality management system with controlled production and traceability. FDA procurement context supports hospitals, clinics, and distributors serving United States surgical instrument supply channels. These details assist tender submissions, vendor onboarding, operating room inventory approval, and distributor catalog documentation. The $44.00 price, one-piece MOQ, OEM availability, and one-year warranty support replacement orders and new orthopedic tray assembly.

How are the double-action pivot and spring handle used during surgery?
The double-action pivot transfers hand compression through linked joints to concentrate force at the cutting jaws. The surgeon places the jaw on the exposed wire or pin end after the fixation construct has been tensioned, positioned, or checked. Handle compression then shears the metal at the selected point while the surgeon maintains direct visual control. The spring handle reopens the instrument after the cut so it can be withdrawn, inspected, and repositioned without manual separation. Orthopedic Wire Cutter is used through a repeated sequence of place, compress, remove, inspect, and reassess. The textured grip zones help maintain orientation when the hand is angled around plates, cable loops, clamps, or external fixation elements.

What should sterile processing and supply teams check before reuse?
Sterile processing teams should clean Orthopedic Wire Cutter immediately after surgery so blood, tissue residue, and fine metal particles do not dry inside the jaws, screw heads, linkage, spring, or handle recesses. The working end should be opened during rinsing and manual brushing to expose the cutting surfaces and pivot zones. Ultrasonic cleaning and washer-disinfector cycles are followed by drying, lubrication of moving parts, inspection, packaging, and steam autoclave sterilization. Supply teams should confirm smooth spring return, stable double-action movement, and accurate jaw alignment before tray assembly. Hospitals can assign the 12, 18, and 22 inch sizes to orthopedic trauma, hand, foot, post-mortem, veterinary, and wire fixation sets according to procedure demand. Distributors can use the one-piece MOQ, OEM availability, carton-box packing, and return or replacement service for inventory planning.
