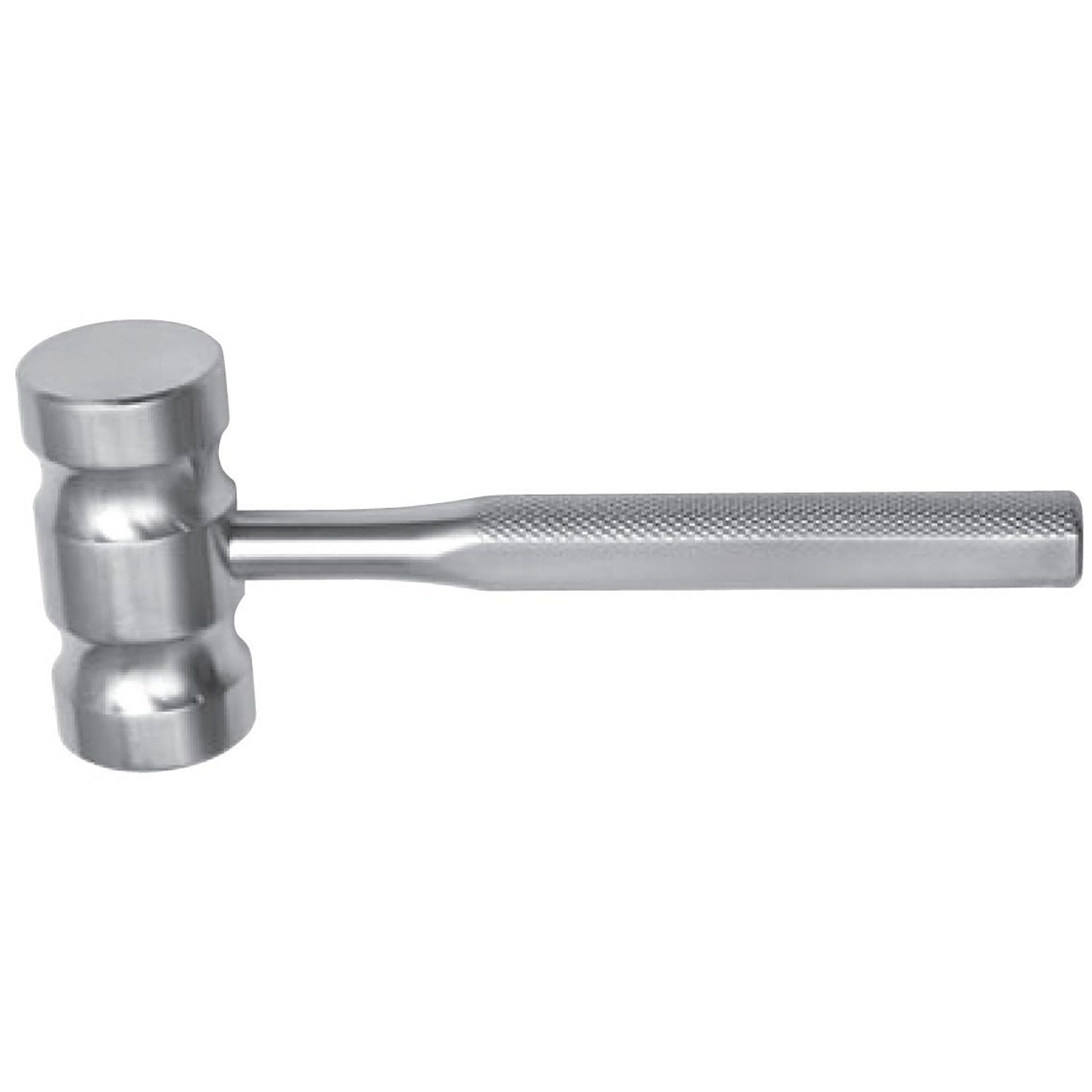

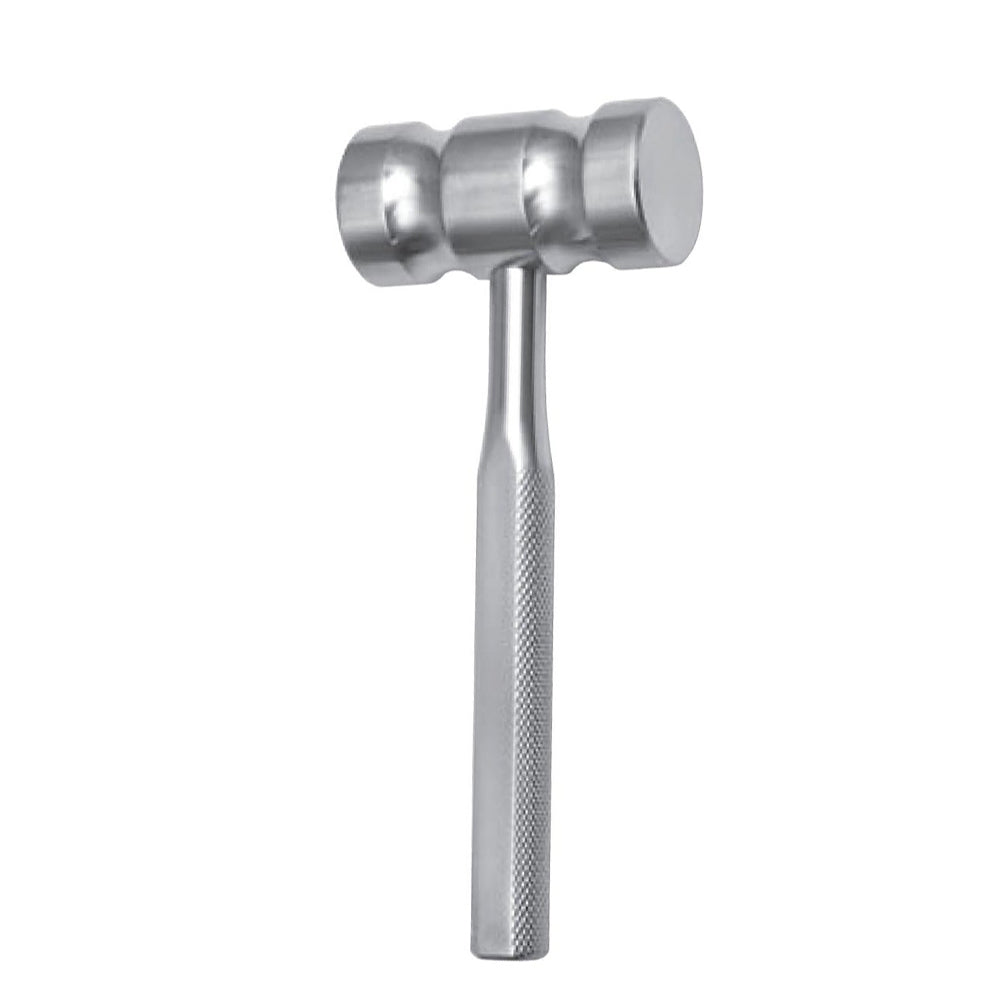

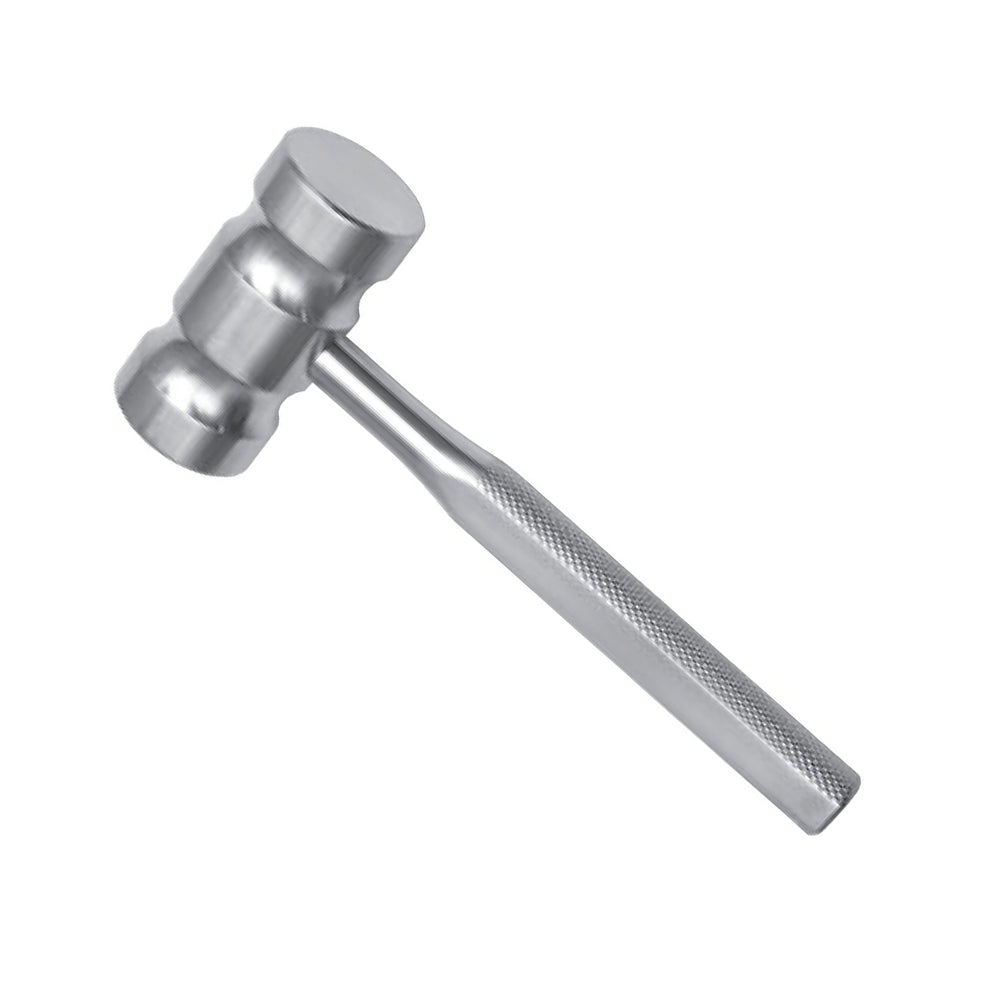

Orthopedic Heavy Mallet with 1–2lb Heads for Osteotome and Chisel Tapping

Orthopedic Heavy Mallet, SKU PS-OT-01141, is a German stainless steel surgical hammer designed for controlled impact delivery to osteotomes, chisels, gouges, bone tamps, rasps, and reconstruction instruments during orthopedic bone preparation. The available variants are PS-7518 with head 1 1/2" (3.8cm) diameter, weight 2lbs (908g), overall length 7 9/16" (19.3cm), and PS-7517 with head 1 3/16" (3cm) diameter, weight 1lb (454g), overall length 7 3/16" (18.3cm). The instrument has a heavy cylindrical head, flat striking faces, narrowed neck, knurled handle surface, straight shaft alignment, and reusable Class I construction for operating room use. It is used during orthopedic osteotomy, cancellous bone preparation, bone graft seating, fracture reconstruction, joint reconstruction, chisel-assisted cortical shaping, bone tamp activation, post-mortem bone access, and veterinary orthopedic repair. Orthopedic trauma surgeons, reconstruction surgeons, podiatric surgeons, oral and maxillofacial teams, veterinary surgeons, hospitals, clinics, teaching centers, and distributors can place this mallet in CE, ISO 13485, and FDA-compliant reusable hammer and osteotome trays.

Heavy Cylindrical Head and Knurled Handle Strike Control

The Orthopedic Heavy Mallet works by transferring directed hand force through a straight handle into a weighted cylindrical head. The flat striking faces provide broad contact with osteotome, chisel, gouge, rasp, and bone tamp handles, helping the operator maintain consistent contact during repeated tapping. The 1lb head supports controlled activation when moderate force is required, while the 2lb head delivers stronger impulse for larger osteotomes and dense cortical bone work. The narrowed neck aligns force from the handle into the head and reduces off-axis movement during impact. The knurled handle surface improves grip orientation in gloved hands and supports short, repeatable tapping strokes. This geometry is important when working near retractors, clamps, suction, bone-holding forceps, plates, or exposed fixation points. The instrument is used through a controlled sequence of align, strike, pause, inspect, and continue rather than broad uncontrolled hammering across the operative field.

Orthopedic Bone Preparation and Reconstruction Workflow

In operative workflow, Orthopedic Heavy Mallet is introduced after exposure, soft-tissue protection, reduction planning, and positioning of the osteotome, chisel, gouge, rasp, or tamp have defined the target bone work. During osteotomy, the mallet advances the cutting instrument through planned cortical or cancellous bone lines while the surgeon monitors depth, alignment, and bony response. In fracture reconstruction, it can support bone edge refinement, graft seating, and tamping of prepared cancellous surfaces. In joint reconstruction and revision procedures, the selected head weight assists controlled activation of bone instruments around prepared interfaces, implants, and fixation hardware. Oral and maxillofacial teams can use the same striking principle for facial bone contouring after exposure and protection. Veterinary orthopedic teams select the mallet for companion-animal bone repair when the head size and weight match the working field. After each strike sequence, the operator reassesses instrument position, reduction status, irrigation need, and readiness for the next procedural stage.

Selection of PS-7517 and PS-7518 Weight Options

PS-7517 is the 1lb (454g) Orthopedic Heavy Mallet option with head 1 3/16" (3cm) diameter and 7 3/16" (18.3cm) overall length. This model is selected when the surgical team needs controlled impact for smaller osteotomes, chisels, gouges, bone tamps, hand and foot bone work, podiatric procedures, maxillofacial refinement, veterinary repair, and post-mortem instruments. PS-7518 is the 2lbs (908g) model with head 1 1/2" (3.8cm) diameter and 7 9/16" (19.3cm) overall length. The larger option is selected when broader contact and stronger strike force are needed for heavier orthopedic osteotomes, cancellous tamping, graft seating, and reconstruction workflows. Selection depends on bone density, receiving instrument handle size, strike force requirement, retractor position, available hand clearance, and whether moderate or heavier impact is required. Hospitals can stock both variants in orthopedic hammer trays, trauma carts, reconstruction sets, veterinary inventories, and teaching laboratories.

German Stainless Steel, Finish Options, and Reprocessing

German stainless steel provides the rigidity, corrosion resistance, and dimensional stability required for repeated surgical impact use, operating room handling, cleaning chemistry, and steam sterilization cycles. The available finish options are satin, dull, and mirror, allowing facilities to match tray appearance and surgical lighting preferences. Satin and dull surfaces reduce glare under overhead lamps, while mirror finish supports receiving inspection, count verification, and instrument set assembly. After surgery, the cylindrical head, flat striking faces, neck transition, knurled handle texture, shaft junction, and grip surfaces require prompt cleaning so blood, tissue residue, bone dust, marrow material, and processing debris do not dry on the instrument. Standard reprocessing includes rinsing, manual brushing, ultrasonic cleaning when approved by facility protocol, washer-disinfector treatment, drying, impact-surface inspection, packaging, and steam autoclave sterilization. CE marking, ISO 13485 manufacturing controls, and FDA procurement context support Class I reusable instrument purchasing for hospitals, clinics, distributors, and operating room supply teams. MOQ of one piece supports replacement ordering and tray replenishment.

How does Orthopedic Heavy Mallet differ from Heath Mallet?
Orthopedic Heavy Mallet is selected when the surgical team needs a defined 1lb or 2lbs striking instrument for heavier osteotome, chisel, gouge, and bone tamp activation. Heath Mallet is selected by head diameter, commonly 40mm or 45mm, when a specific head width is required in an orthopedic hammer tray. The heavy mallet pattern emphasizes impact weight for bone reconstruction and dense cortical work. Heath patterns emphasize head-size selection and handle style preference within general mallet sets. Orthopedic Heavy Mallet is useful when controlled force delivery is the main purchasing requirement. The clinically relevant difference is weight-based impact selection versus head-diameter-based mallet planning.

When should PS-7517 or PS-7518 be selected?
Orthopedic Heavy Mallet is available as PS-7517 in 1lb (454g) and PS-7518 in 2lbs (908g). PS-7517 is selected when moderate impact is required for smaller osteotomes, chisels, hand and foot bone work, maxillofacial refinement, veterinary procedures, or controlled graft seating. PS-7518 is selected when stronger strike force and a broader head are required for larger osteotomes, heavy bone tamps, dense cortical work, and reconstruction cases. The 1lb model provides closer tactile control in smaller operative corridors. The 2lbs model provides stronger impulse where the receiving instrument and bone target require heavier activation. Selection depends on bone density, exposure depth, receiving handle size, and required strike force.

How do CE, ISO 13485, and FDA details support procurement?
Orthopedic Heavy Mallet is supplied with CE, ISO 13485, and FDA procurement context for Class I reusable surgical instrument purchasing. CE marking supports conformity documentation for healthcare markets requiring European medical device references. ISO 13485 indicates manufacturing under a medical device quality management system with controlled production and traceability. FDA procurement context supports hospitals, clinics, and distributors serving United States surgical instrument supply channels. These details assist tender submissions, vendor onboarding, operating room inventory approval, and distributor catalog documentation. The $24.20 price, one-piece MOQ, OEM availability, and one-year warranty support replacement ordering and reusable orthopedic tray assembly.

How are the cylindrical head and knurled handle used intraoperatively?
The cylindrical head is aligned with the handle of an osteotome, chisel, gouge, rasp, or bone tamp after the working instrument has been positioned on the selected bone target. The surgeon or assistant holds the knurled handle with stable palm control and delivers short measured taps. The head transfers impact into the receiving instrument while the straight handle maintains the direction of force. Orthopedic Heavy Mallet is used when strike control is required around retractors, clamps, suction, bone-holding forceps, plates, and exposed fixation sites. The knurled grip helps maintain orientation during repeated tapping. After each sequence, the surgeon reassesses instrument alignment, bony movement, reduction status, and readiness for the next procedural step.

What should sterile processing and supply teams check before reuse?
Sterile processing teams should clean Orthopedic Heavy Mallet immediately after surgery so blood, tissue residue, bone dust, marrow material, and procedure debris do not dry on the head, neck, knurled handle, or striking faces. The head-to-neck transition and handle texture should be brushed during manual cleaning because debris can remain along these surfaces. Ultrasonic cleaning, washer-disinfector treatment, drying, inspection, packaging, and steam autoclave sterilization are performed according to facility protocol. Supply teams should confirm the head is secure, the striking faces are intact, and the handle has no deformation before tray assembly. Hospitals can assign the 1lb and 2lbs options to orthopedic, trauma, reconstruction, maxillofacial, post-mortem, veterinary, and teaching instrument sets. Distributors can use the one-piece MOQ, carton-box packing, OEM availability, and return or replacement service for practical inventory planning.
