Küntscher Nails Instrument Set – Complete Intramedullary Nailing Instrumentation with Reamers, Guide Wires, and Extractor (PS-OP-5235)

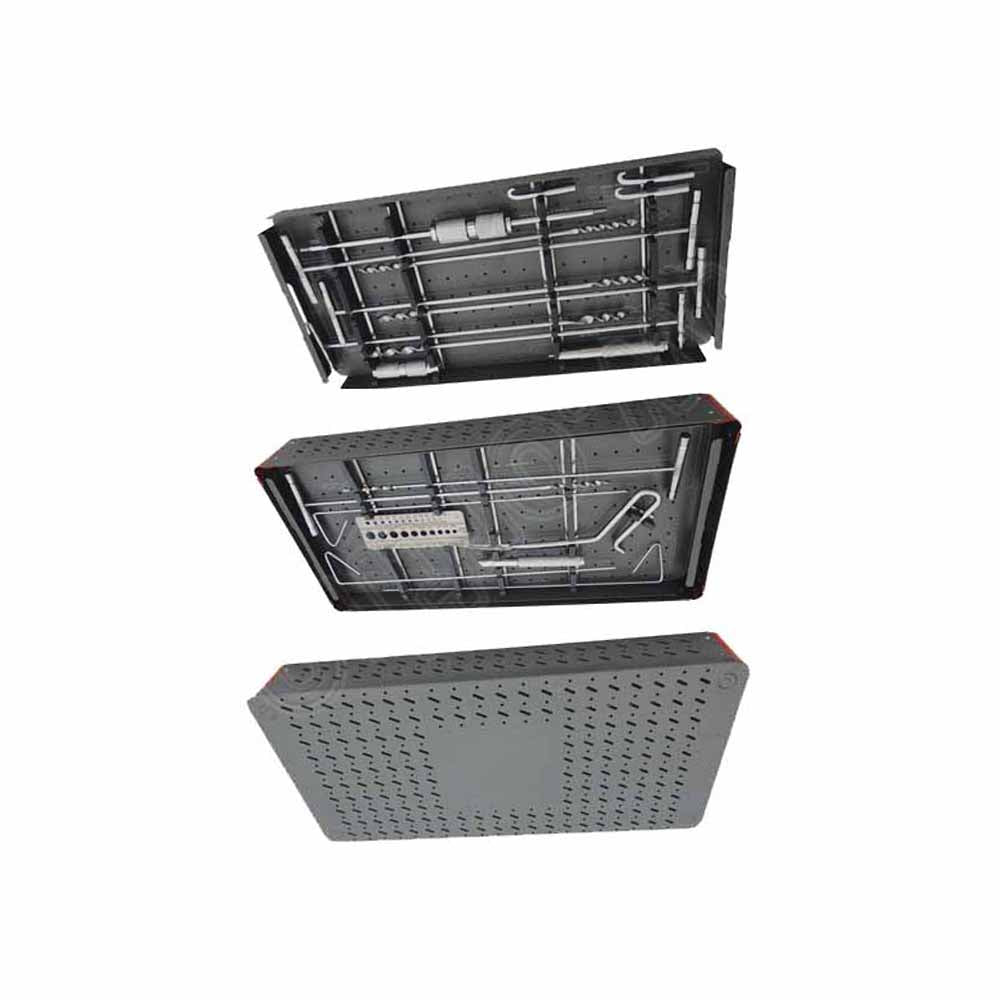

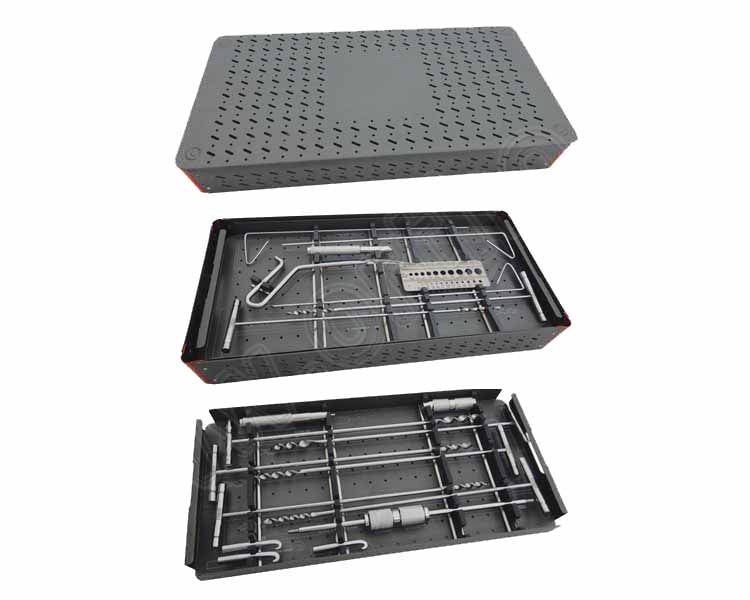

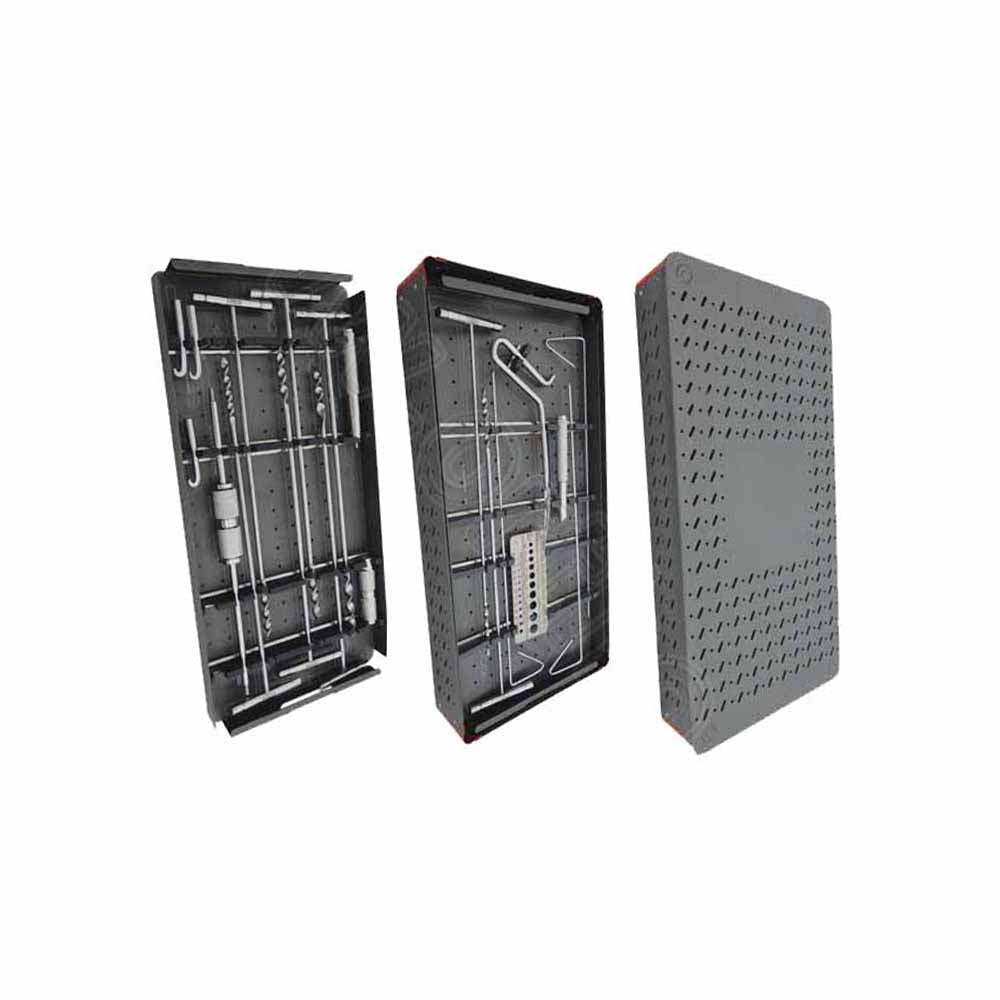

The Küntscher Nails Instrument Set (PS-OP-5235) is a complete stainless steel ancillary instrumentation kit supplied in a storage container, designed for the insertion and removal of Küntscher-type intramedullary nails — the cloverleaf cross-section solid nail system originally developed by Gerhard Küntscher that established the foundational principles of closed intramedullary nailing for long bone shaft fractures. The set provides every instrument required for the procedure: a diamond-pointed bone awl for tibial canal entry, three guide wires sized for different nail diameter ranges (3.0mm for 8mm and 9mm nails, 4.0mm for 10mm and 11mm nails, and 4.5mm for 12mm and 13mm nails), a complete reamer series spanning 7mm through 14mm in 1mm increments for sequential canal preparation, a K.Nail Driver for nail insertion, a K.Nail Impactor/Setting Device for controlled nail seating, a K.Nail Measuring Gauge for canal length and nail size determination, and a K.Nail Extractor with Two Hooks for nail removal during revision procedures or hardware removal after fracture union. Manufactured from stainless steel for repeated steam autoclave sterilization across the operative service life of the set. The Küntscher nail system relies on the elastic fit and three-point cortical contact provided by its cloverleaf cross-sectional geometry for rotational and axial stability — a fundamentally different fixation principle from modern interlocking nail systems that depend on transverse locking screws. Used by orthopedic surgeons in hospital operating theaters and orthopedic trauma units, particularly in settings where the simplicity, cost-effectiveness, and proven long-term track record of the Küntscher system remain clinically relevant. Supplied complete in its storage container.

The Küntscher Nail System: Cloverleaf Cross-Section and Elastic Fixation Principle

The Küntscher nail, introduced by German surgeon Gerhard Küntscher in the 1940s, is historically recognized as the device that established intramedullary nailing as a viable fracture treatment and introduced the principle of closed (minimally invasive) nail insertion without surgical exposure of the fracture site. The defining feature of the Küntscher nail is its cloverleaf (or trefoil) cross-sectional geometry — rather than a solid circular cross-section, the nail has three convex projections separated by concave channels, viewed in cross-section as resembling a three-leafed clover. This geometry produces the nail's fixation mechanism: when driven into a reamed medullary canal of slightly smaller diameter than the nail's outer dimension, the three convex projections of the cloverleaf compress elastically against the endosteal cortical surface at three points around the canal circumference, creating a spring-like elastic fit that resists rotational displacement of the fracture fragments around the nail's long axis. This three-point elastic fixation is the Küntscher system's core innovation and the reason it does not require the transverse locking screws that modern interlocking intramedullary nail systems use for rotational control — the cloverleaf geometry provides inherent rotational stability through its interference fit with the reamed canal. The cloverleaf design also allows the nail to flex slightly along its length during insertion, accommodating minor variations in the medullary canal's curvature without requiring the canal to be perfectly straight, which contributed to the system's reliability across the natural anatomic variation in femoral and tibial medullary canal shapes.

Canal Preparation: Guide Wire Selection and the 7mm–14mm Reamer Series

This instrument set's eight-reamer series — 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, and 14mm — provides the sequential canal enlargement needed to prepare the medullary canal for Küntscher nails across this full diameter range, with three guide wires matched to specific nail size groupings to maintain canal trajectory throughout the reaming sequence. The 3.0mm guide wire is used when the planned nail diameter is 8mm or 9mm; the 4.0mm guide wire is used for 10mm or 11mm nails; and the 4.5mm guide wire is used for 12mm or 13mm nails — the progression to a thicker, stiffer guide wire for larger nail diameters reflects the greater canal preparation forces involved in reaming to larger diameters, where a thin guide wire would be more prone to deflection or bending under the lateral forces transmitted from a larger reamer. The reaming sequence proceeds progressively from the smallest reamer that engages the canal toward the diameter selected to achieve the appropriate elastic interference fit for the chosen nail — because the Küntscher nail's fixation depends on this interference fit rather than locking screws, the relationship between the final reamed canal diameter and the selected nail's cloverleaf outer dimension is a critical determinant of fixation stability: a canal reamed too large relative to the nail produces insufficient elastic compression at the three contact points and inadequate rotational stability, while a canal reamed too small relative to the nail risks excessive insertion force, cortical fracture during nail passage, or thermal injury from excessive friction during the final insertion stages. The diamond-pointed bone awl is used at the start of the procedure to establish the initial cortical entry point — for tibial nailing, typically at the proximal tibial metaphysis just medial to the patellar tendon insertion — through which the guide wire and subsequent reamers are introduced.

Nail Insertion, Measurement, and Removal Instrumentation

The K.Nail Measuring Gauge in this set is used to determine the appropriate nail length by measuring the prepared canal length from the entry point to the desired distal end position, typically referenced against the guide wire once it has been passed to the appropriate distal position under fluoroscopic guidance — accurate length measurement is important because a Küntscher nail that is too short fails to provide adequate fixation across both major fracture fragments, while a nail that is too long can protrude into the joint space at either the proximal entry point or distal end, causing mechanical impingement. The K.Nail Driver is the insertion instrument that couples to the proximal end of the selected nail and transmits the driving force — applied via mallet strikes on the driver — needed to advance the nail along the prepared canal and across the fracture site to its final position. The K.Nail Impactor/Setting Device provides the final controlled seating of the nail once it has been advanced to near its final position, allowing precise final positioning without the risk of over-driving the nail that direct mallet strikes on the nail end itself would present. The K.Nail Extractor with Two Hooks is used in revision surgery or planned hardware removal after fracture union — the two-hook design engages the proximal end features of the Küntscher nail (which typically has an eyelet or slot at its proximal end for this purpose) to provide the controlled extraction force needed to withdraw the nail from the medullary canal, where bone ingrowth and the elastic interference fit that provided fixation stability during healing now resist removal and require deliberate, controlled extraction force.

Stainless Steel Construction and Sterilization Workflow

All instruments in the PS-OP-5235 set are manufactured from stainless steel, providing the corrosion resistance, dimensional stability, and edge or thread retention required for instruments that undergo repeated steam autoclave sterilization between orthopedic trauma procedures. The reamers, with their cutting flutes, require thorough cleaning of flute grooves to remove bone debris and marrow content before sterilization — residual organic material in flute grooves both compromises sterilization efficacy and accelerates corrosion at these cutting surfaces. The guide wires, being long and slender, require careful handling during cleaning and storage to avoid bending or kinking, which would compromise their function in maintaining canal trajectory during the reaming sequence. The K.Nail Driver, Impactor/Setting Device, and Extractor — the higher-force impact and extraction instruments in the set — should be inspected at each reprocessing cycle for any deformation of their coupling features, as a worn or deformed coupling can fail to engage the nail securely during insertion or extraction, with potentially serious intraoperative consequences. The set's storage container should be used to verify completeness — all 16 numbered instruments plus the container — before and after each procedure, as a missing reamer size or guide wire can compromise the surgeon's ability to complete the procedure with the planned nail size.

CE Mark, ISO 13485, and FDA Certification for Orthopedic Instrument Set Procurement

The Küntscher Nails Instrument Set PS-OP-5235 is manufactured under a quality management system certified to ISO 13485, governing stainless steel material sourcing, precision machining of all reamers, guide wires, driving, measuring, and extraction instruments, dimensional inspection across all components, and final set assembly and packaging. CE Mark certification confirms conformity with European Medical Device Regulation requirements for reusable orthopedic surgical instrument sets distributed within EU and associated regulatory territories. FDA compliance documentation is maintained for United States distribution, satisfying regulatory requirements applicable to reusable orthopedic instrumentation procured by US hospitals, trauma centers, and orthopedic surgical instrument distributors. These certifications satisfy procurement and tender documentation requirements of institutional buyers in the USA, India, Pakistan, Vietnam, and across international orthopedic surgical supply frameworks. Certificates of conformity and quality management system documentation are available on request. OEM manufacturing and custom set configurations are available within the same certified manufacturing framework.

Product Specifications

Frequently Asked Questions

What is a Küntscher nail and how does its fixation mechanism differ from modern interlocking nails?
The Küntscher nail is a solid intramedullary nail with a distinctive cloverleaf (trefoil) cross-sectional shape — three convex projections separated by concave channels, rather than the circular or near-circular cross-section of most modern nails. This geometry is the basis of its fixation mechanism: when the nail is driven into a medullary canal that has been reamed to a diameter slightly smaller than the nail's outer dimension, the three convex projections compress elastically against the endosteal bone surface at three points around the canal, creating a spring-loaded interference fit that resists rotation of the fracture fragments around the nail. This is fundamentally different from modern interlocking intramedullary nail systems — such as the femoral, tibial, and humeral interlocking nail sets — which use a more cylindrical nail with transverse holes near the proximal and distal ends through which locking screws are placed to control rotation and length independently of the canal fit. The Küntscher system's elastic-fit fixation means no locking screws, distal targeting jigs, or sighting devices are needed — the instrument set for Küntscher nailing is correspondingly simpler, consisting primarily of canal preparation (awl, guide wires, reamers) and nail insertion/measurement/extraction instruments, without the proximal and distal locking instrumentation that interlocking nail sets require.

How are the three guide wire sizes matched to nail diameters, and why does this matter?
This set includes three guide wires — 3.0mm, 4.0mm, and 4.5mm — each matched to a specific pair of Küntscher nail diameters: the 3.0mm guide wire for 8mm and 9mm nails, the 4.0mm guide wire for 10mm and 11mm nails, and the 4.5mm guide wire for 12mm and 13mm nails. The guide wire's role throughout the procedure is to maintain the established canal trajectory while the sequential reamers are passed over it — each reamer has a central cannulation that rides along the guide wire, ensuring that every reaming pass follows the same path established by the initial guide wire placement. As the planned final nail diameter increases, the reaming sequence involves larger-diameter reamers exerting greater lateral cutting forces, and a thin guide wire under these forces is more prone to bending or deflection, which would cause the larger reamers to drift from the intended trajectory and risk eccentric reaming or cortical perforation. The progression to thicker, stiffer guide wires for larger nail diameter groups maintains trajectory accuracy throughout the reaming sequence regardless of the final nail size selected. The surgeon selects the guide wire matched to the anticipated nail diameter range based on preoperative canal diameter assessment from imaging, before beginning the reaming sequence.

What is the clinical role of the K.Nail Extractor with Two Hooks, and when is it used?
The K.Nail Extractor with Two Hooks is used to remove a previously inserted Küntscher nail — either in a planned hardware removal procedure after the fracture has achieved solid union and the patient and surgeon elect to remove the implant, or in a revision procedure where the original nail must be removed to address a complication such as nonunion, malunion, infection, or to convert to a different fixation method. The extraction process is more demanding than insertion because, over the months of fracture healing, the bone has typically grown into close apposition with the nail surface and the original elastic interference fit may be supplemented by bony ingrowth at the contact points, both of which resist withdrawal. The two-hook design of this extractor engages features at the proximal end of the Küntscher nail — typically an eyelet, slot, or flange incorporated into the nail's proximal design specifically to provide an extraction purchase point — allowing the surgeon to apply controlled, axial extraction force along the nail's long axis. Attempting extraction without this purpose-built instrument, or with instruments that do not engage the nail's proximal features securely, risks instrument slippage, damage to the nail's proximal end, or inadequate force transmission for successful extraction.

What sterilization protocol is recommended for this set?
All instruments in this set are manufactured from stainless steel and are compatible with standard steam autoclave sterilization at 134°C pre-vacuum parameters, the routine method for reusable orthopedic instrumentation. The eight reamers, with their cutting flutes and central cannulations for guide wire passage, require thorough cleaning to remove bone debris and marrow content from both the flute grooves and the internal cannulation before sterilization — typically using an enzymatic pre-soak followed by ultrasonic cleaning with brush access to both surfaces. The three guide wires should be cleaned, inspected for straightness, and stored in a manner that prevents bending or kinking, as a bent guide wire will produce an eccentric reaming trajectory if reused. The K.Nail Driver, Impactor/Setting Device, and Extractor — instruments subjected to impact forces during use — should be inspected at each reprocessing cycle for deformation of their nail-engaging features. The storage container should be used to verify all 16 instruments are present and correctly accounted for both before and after each procedure.

What certifications does this set carry, and are bulk or OEM orders available?
The Küntscher Nails Instrument Set PS-OP-5235 is manufactured under an ISO 13485-certified quality management system covering stainless steel material procurement, precision machining of all reamers, guide wires, and driving/measuring/extraction instruments, dimensional inspection, and final set assembly. CE Mark certification confirms conformity with European Medical Device Regulation requirements for reusable orthopedic surgical instrument sets. FDA compliance documentation supports United States distribution. Certificates of conformity and quality management documentation are available on request for hospital procurement and tender processes. Bulk orders are accepted with a minimum of 1 set, with volume pricing available for hospitals, trauma centers, orthopedic instrument distributors, and group purchasing organizations — particularly relevant for institutions in regions where the Küntscher nailing system remains in active clinical use due to its cost-effectiveness and proven long-term reliability. OEM manufacturing for custom set configurations or private-label branding is available within the same ISO 13485-certified framework. Free shipping applies on orders of $99 or more.
