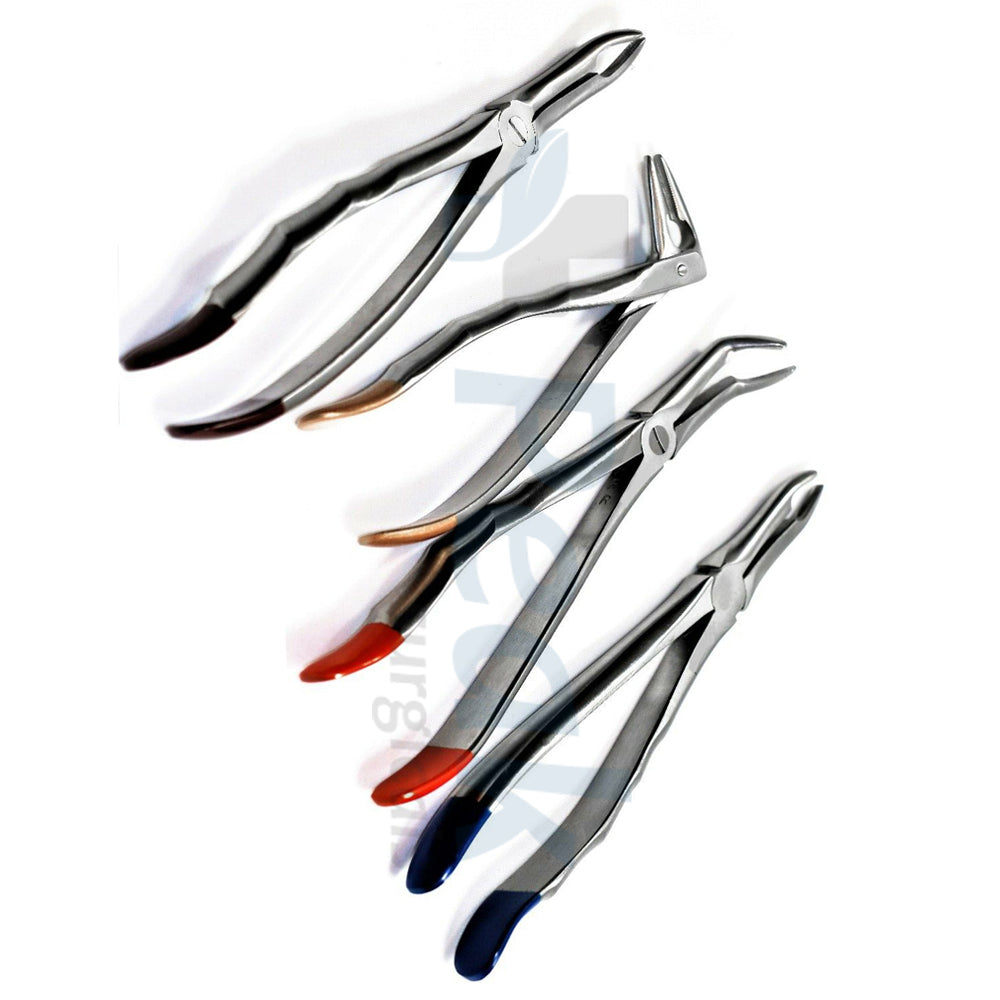

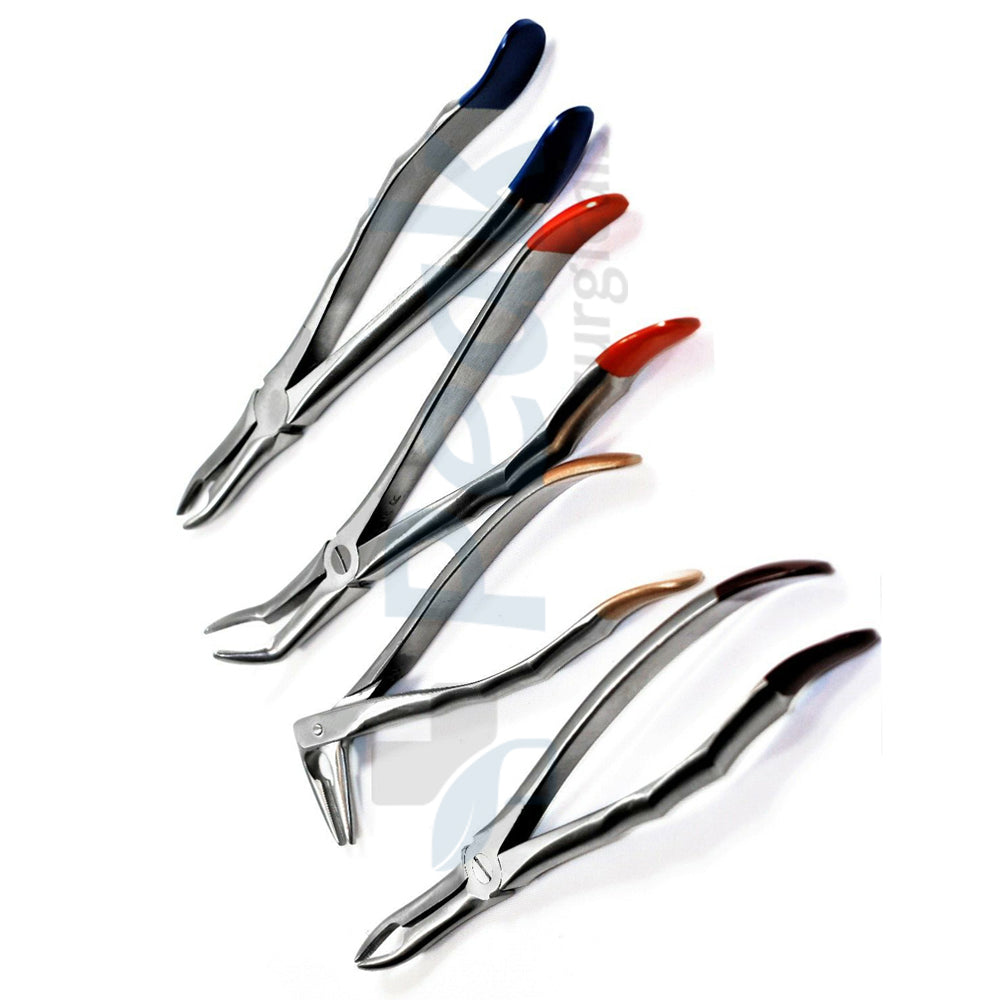

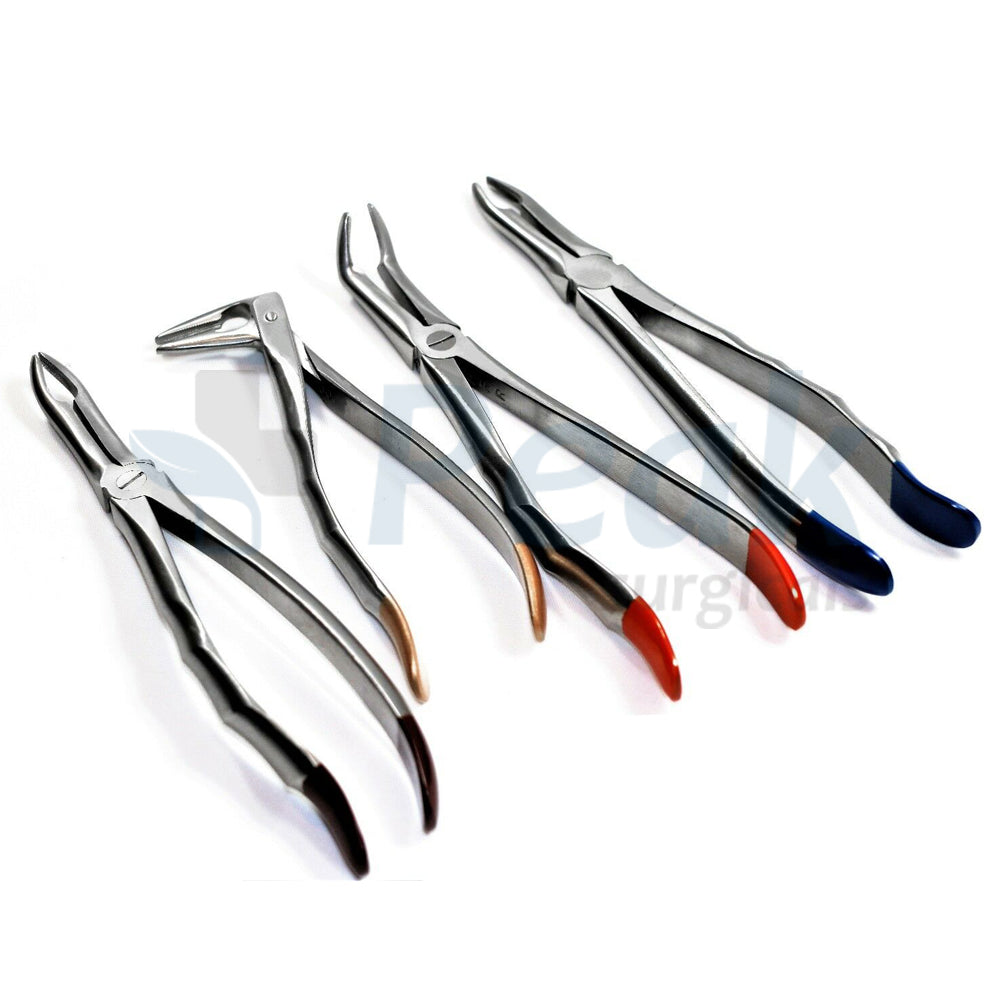

xtracting Forceps Root Tip TC Beak Serrated Dental Tool Set .

The Extracting Forceps Root Tip TC Beak Serrated Dental Tool Set (PS-DEFS-00266) is a matched set of reusable dental extraction forceps combining three clinically specific design features that distinguish it from every other extraction forceps in the Peak Surgicals range: root tip indication (instruments designed for the retrieval of retained root tips and fractured root fragments rather than intact tooth extraction), TC beaks (tungsten carbide inserts bonded to the beak gripping surfaces, providing hardness and wear resistance superior to standard stainless steel), and serrated beak surfaces (a machined serration pattern on the TC-coated beak faces that increases grip on the smooth, rounded surfaces of root tips and root fragments). The combination of tungsten carbide inserts and serration addresses the two principal challenges of root tip retrieval that standard root forceps may not fully meet: maintaining grip on root fragments whose smooth apical surfaces offer less natural mechanical purchase than the textured cervical area of an intact tooth, and sustaining that grip quality across an extended instrument service life in a high-use practice where beak wear from repeated root fragment engagement would degrade the grip performance of standard stainless steel beaks sooner. Priced at $77.00 for the set, this product sits between the entry-level Dental Tooth Extraction Tools Set ($22.00) and the standard adult forceps set ($82.50) in the Peak Surgicals extraction set range, reflecting the premium manufacturing cost of tungsten carbide beak inserts relative to standard German stainless steel beaks. Manufactured from German stainless steel shanks and hinges with TC beak inserts, fully autoclavable. Used by dentists, oral surgeons, and maxillofacial surgeons. Sold as 1 set. Contact Peak Surgicals at info@peaksurgicals.com to confirm the specific patterns and piece count included.

Tungsten Carbide Beak Inserts: What TC Means and Why It Matters for Root Retrieval

The "TC" designation in this product's name indicates that the gripping surfaces of the extraction forceps beaks incorporate tungsten carbide inserts — small segments of tungsten carbide, one of the hardest engineered materials used in dental instruments, bonded or brazed to the inner surfaces of the stainless steel beaks in the areas that make contact with the root during retrieval. Tungsten carbide is significantly harder than stainless steel on the Vickers hardness scale, and this hardness difference has two directly relevant clinical implications for extraction forceps. The first is grip: a harder beak surface in contact with the root's surface maintains the micro-texture and sharpness of the serration pattern under the compressive forces of extraction for longer than a stainless steel surface would, providing sustained, high-friction contact with the root surface rather than the gradual smoothing of the serration that occurs when stainless steel beaks are used repeatedly at high extraction forces. The second is wear resistance: the TC insert maintains its grip-relevant surface characteristics across a larger number of extraction cycles before the beak needs replacement, extending the effective service life of each instrument in the set compared to equivalent instruments with stainless steel beaks. The TC insert is typically identifiable visually by a gold or bronze colouring of the beak gripping surface — a colour that results from the manufacturing process of TC insert bonding, and which distinguishes TC-insert instruments from standard stainless steel instruments at a glance on the instrument tray. In the context of root tip retrieval — where the instrument must grip and deliver fragments that may be small, deeply positioned, and smooth-surfaced — the TC insert's grip advantage is particularly significant.

Root Tip Retrieval: The Clinical Indication That Defines This Set

Root tip retrieval is a specific and technically demanding clinical scenario in dental and oral surgical practice: the removal of a root tip, root stump, or root fragment that has remained in the alveolar socket after the crown portion of a tooth has separated, whether from intraoperative fracture during an extraction attempt, from pre-existing crown loss due to caries or trauma, or from deliberate surgical tooth sectioning. The challenge of root tip retrieval differs from intact tooth extraction in every clinically relevant dimension. The crown, which provides the leverage point and beak engagement surface for standard extraction forceps, is absent — only the root or its apical portion remains, and this fragment may be at or below the level of the alveolar crest, surrounded on all sides by the alveolar socket walls. The remaining fragment may be small, with a smooth, rounded or tapered apical surface that offers limited mechanical purchase to the beak. The beak must be directed down into the socket alongside the fragment, sliding between the fragment and the surrounding bone without the visual landmark of a crown to guide beak placement. And the fragment must be gripped securely enough to transmit controlled retrieval forces — rotation, traction, or a combination — without the beak slipping off the smooth root surface at the critical moment of delivery. The TC beak inserts and serrated surfaces of this set address this last challenge directly: the harder TC surface maintains its grip on the root fragment surface under retrieval forces, and the serration provides micro-interlock between the beak and the root surface that reduces slippage risk during the retrieval movement.

Serrated TC Beaks vs Smooth SS Beaks: The Grip Performance Difference

Root tip forceps with smooth stainless steel beaks provide grip through the compression of the beak surface against the root fragment — the tighter the beak closure around the fragment, the higher the normal force at the contact surface, and the higher the friction force resisting beak slippage during retrieval. This mechanism is reliable when the root fragment is accessible enough for the beaks to close tightly around it and when the fragment surface has enough natural roughness or contouring to provide friction. When the fragment surface is smooth, tapered, or rounded — as the apical portion of many roots is — or when the fragment is so small or so deeply positioned that the beaks cannot close as tightly as they would on a larger, more accessible fragment, smooth beak retrieval may not provide enough grip security to deliver the fragment without the beak slipping repeatedly before delivery is achieved. Serrated TC beaks address both limitations simultaneously: the serration provides mechanical interlock between the beak surface and the root surface that acts in addition to the friction provided by compression — the serration's teeth penetrate slightly into the root cementum under retrieval force, providing a positive grip that is less sensitive to the degree of beak closure or the smoothness of the root surface than smooth beak compression alone. The TC hardness ensures that the serration pattern remains sharp and effective across extended clinical use, rather than wearing smooth with repeated use as stainless steel serrations would. For a root tip retrieval set that will be used repeatedly in a high-extraction-volume practice, the combination of TC inserts and serration represents the highest-durability grip specification available in this instrument category.

Root Tip Set Format: Multiple Patterns for Both Arches

A root tip extraction forceps set covering both arches provides instruments with different approach geometries for root retrieval in the upper and lower dental arches — the upper arch root tip forceps have beak-to-handle geometry allowing the operator to approach from below while directing the beak upward into the maxillary socket, while the lower arch patterns have the angled beak-to-handle relationship that allows approach from above and beak direction upward into the mandibular socket. Root tip fragments occur across all teeth in both arches — anterior and posterior, upper and lower — so a comprehensive root tip set includes instruments covering the principal root fragment sizes and socket positions encountered in routine and surgical extraction practice. Narrow beak patterns address small apical fragments and narrow socket positions in the anterior and premolar regions; broader patterns or those with different approach angles address the posterior molar root fragments that may be more accessible but larger and positioned in a wider socket. The specific patterns and piece count included in PS-DEFS-00266 should be confirmed with Peak Surgicals at info@peaksurgicals.com, as this information is not fully specified in the available product data — but the set format at $77.00 suggests a meaningful range of patterns (likely 6–10 pieces) covering the root retrieval scenarios encountered across both arches in a mixed dental extraction caseload.

CE Mark, ISO 13485, and FDA Certification for Dental Instrument Procurement

The Extracting Forceps Root Tip TC Beak Serrated Set PS-DEFS-00266 is manufactured under a quality management system certified to ISO 13485, governing German stainless steel shank and hinge fabrication, tungsten carbide beak insert selection and bonding quality inspection, serration pattern precision and consistency, dimensional inspection across all patterns in the set, surface finishing, and set assembly and packaging. CE Mark certification confirms conformity with European Medical Device Regulation requirements for Class I reusable dental surgical instruments distributed within EU and associated regulatory territories. FDA compliance documentation is maintained for United States distribution. These certifications satisfy procurement and tender documentation requirements of institutional buyers in the USA, India, Pakistan, Vietnam, and across international dental instrument supply frameworks. Certificates of conformity and quality management system documentation are available on request. OEM manufacturing and custom set composition are available within the same certified manufacturing framework.

Product Specifications

Frequently Asked Questions

What does "TC Beak Serrated" mean, and why is it specifically important for root tip retrieval?
"TC" stands for tungsten carbide — a material harder than stainless steel bonded as inserts to the inner gripping surfaces of the forceps beaks, where beak meets root during retrieval. "Serrated" refers to a machined serration pattern on these TC-coated beak faces. For root tip retrieval, this combination addresses the two most significant grip challenges: smooth root surfaces and long-term beak wear. Root tips and root fragments — particularly their smooth, rounded apical surfaces — offer less natural friction to a beak than the cervical and mid-root surface of an intact tooth. A serrated beak provides micro-interlock between beak and root surface that increases grip security beyond what smooth beak compression alone achieves, reducing the risk of beak slippage during the retrieval movement. The TC insert ensures this serration pattern remains sharp and effective across hundreds of root retrieval cycles in a high-volume practice, rather than wearing smooth as stainless steel serrations would with repeated use. For practices performing frequent surgical extractions with a high incidence of root fracture and retention, TC serrated beak root forceps represent the highest-durability grip specification available in this instrument category.

How does this root tip set differ from the Lower Root Forceps (No. 6 and No. 150S) also in the Peak Surgicals range?
The Lower Root Forceps (PS-6926/PS-6927, Nos. 6 and 150S) available separately in the Peak Surgicals catalog are individual root tip forceps for mandibular root retrieval only — single instruments in specific named patterns, with standard stainless steel beaks (the No. 150S has a serrated SS beak). The Extracting Forceps Root Tip TC Beak Serrated Set PS-DEFS-00266 differs in three respects: it is a multi-pattern set covering root retrieval across both arches (not mandibular only); all instruments have TC beak inserts rather than standard SS, giving them superior grip durability; and the serrated TC beaks provide better long-term grip performance than serrated SS. The individual lower root forceps suit practices that need specific named patterns for mandibular root retrieval to supplement an existing instrument inventory. The TC serrated set suits practices equipping a complete, premium-material root retrieval tray across both arches, where the TC insert investment is justified by the volume of root retrieval procedures performed.

How do I identify TC instruments on an instrument tray, and how are they maintained differently from SS instruments?
TC-insert instruments are identifiable by the gold or bronze colouring of the beak gripping surfaces — this colour results from the manufacturing and bonding process for TC inserts and is present on all genuine TC-insert dental instruments. On a mixed instrument tray, this colour immediately distinguishes TC-beak forceps from standard stainless steel instruments. Maintenance considerations for TC instruments include avoiding ultrasonic cleaning solutions that are acidic or that attack the bonding material between the TC insert and the stainless steel beak, as chemical attack on the bond can cause TC insert loosening or delamination over time — instrument-specific manufacturer guidance on cleaning solution compatibility should be followed. TC instruments should also be stored or positioned on instrument trays in a way that avoids metal-to-metal contact between the TC beak surfaces and other instrument beaks, as the hardness of TC makes any impact damage more likely to chip the TC insert than to deform a softer SS beak. Steam autoclave sterilization at 134°C pre-vacuum parameters is compatible with TC instruments and is the standard sterilization method.

What sterilization protocol is recommended for this set?
All instruments in the set are compatible with steam autoclave sterilization at 134°C pre-vacuum parameters. Before sterilization, clean instruments thoroughly — avoiding acidic ultrasonic cleaning solutions that may attack TC insert bonding over time, and using TC-compatible neutral pH enzymatic cleaning solutions instead. After sterilization, inspect each instrument's TC beak surfaces for any signs of TC insert chipping, loosening, or delamination — any instrument showing compromised TC inserts should be removed from clinical service, as loose TC fragments in the surgical field are a patient safety risk. The hinge mechanisms should be checked for smooth action, and the shank integrity inspected for any deformation.

What certifications does this set carry, and are OEM or custom TC configurations available?
The Extracting Forceps Root Tip TC Beak Serrated Set PS-DEFS-00266 is manufactured under an ISO 13485-certified quality management system covering German stainless steel shank and hinge fabrication, TC beak insert bonding quality, serration pattern inspection, and set assembly. CE Mark certification confirms conformity with European Medical Device Regulation requirements for Class I reusable dental surgical instruments. FDA compliance documentation supports United States distribution. Certificates of conformity are available on request. OEM manufacturing for custom TC beak root tip configurations or private-label sets is available within the same ISO 13485-certified framework. Bulk orders accepted with volume pricing for oral surgery units, hospital dental departments, and dental instrument distributors. Free shipping applies on orders of $99 or more.
