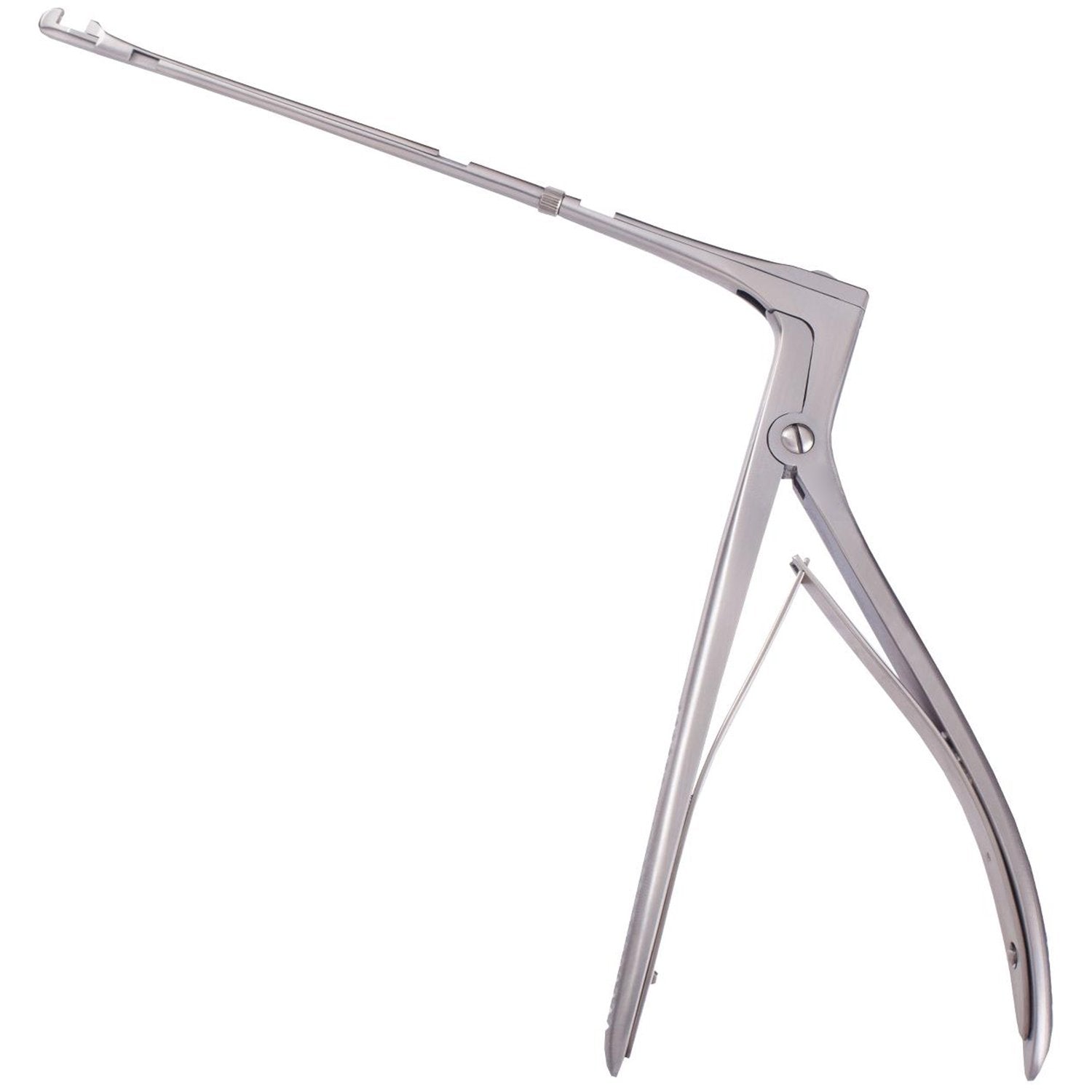

Hajek Koffler Sphenoid Punch Forceps PS-8503 for 14 cm Sinus Access

Hajek Koffler Sphenoid Punch Forceps PS-8503 are ENT surgical punch forceps made from German stainless steel for controlled bone and mucosal removal during transnasal sphenoid sinus surgery. The available size is 14 cm - 5 1/2", giving the surgeon a compact but deep-reaching shaft for posterior nasal cavity access, sphenoid ostium enlargement, posterior ethmoidectomy support, endoscopic sinus surgery, transsphenoidal exposure, sphenoid rostrum trimming, and removal of small bony ledges around the anterior sphenoid wall. The instrument has a long straight shaft, hooked distal punch jaw, screw joint, spring handle, and pistol-style grip that allow bite-by-bite removal under endoscopic visualization. It is used by rhinologists, ENT surgeons, skull base surgeons, hospital operating rooms, ambulatory sinus centers, and procurement teams stocking functional endoscopic sinus surgery trays. The pattern is selected when controlled punch action is required near the superior turbinate, sphenoid face, posterior septum, and sphenoethmoidal recess.

Hooked Punch Jaw and Spring Handle Action

The Hajek Koffler pattern works through a spring-loaded handle that drives the distal punch jaw through a straight shaft. Finger compression closes the cutting element against the fixed distal foot, creating a controlled bite rather than a scraping or twisting movement. The hooked jaw is shaped to engage the edge of the sphenoid ostium, thin anterior sphenoid wall, or residual bony shelf before the surgeon completes the punch. This geometry helps the working end stay seated on a defined rim while the handle remains outside the nostril. The screw joint near the handle stabilizes the lever action and transmits pressure through the shaft without excessive lateral motion. The visible spring reopens the handle after each bite, allowing repeated removal of small fragments during stepwise enlargement. The 14 cm length gives sufficient reach to the sphenoethmoidal recess while keeping the instrument compact enough for endoscopic handling beside suction, curettes, and through-cutting forceps.

Sphenoidotomy and Posterior Sinus Workflow

During functional endoscopic sinus surgery, the forceps are used after the sphenoid ostium has been identified and mucosa has been prepared with suction, probe, or dissector. The hooked punch can engage the inferior or medial margin of the opening to enlarge the sphenoidotomy while preserving controlled visualization of the posterior nasal corridor. In posterior ethmoidectomy, it assists with removal of selected bony partitions that limit access to the sphenoid face. During transsphenoidal skull base exposure, the instrument can help remove small portions of the sphenoid rostrum or anterior wall after the operative corridor is established. It is also useful in revision sinus surgery where scar, osteitic bone, or narrowed ostial margins require precise bite removal. The surgeon uses the punch in short, deliberate closures while maintaining awareness of the optic nerve, carotid canal, skull base, and septal attachment. This instrument belongs in ENT sinus trays where posterior nasal access is routine.

14 cm Working Length and Named Components

The 14 cm - 5 1/2" size balances reach and hand control for adult endoscopic sphenoid work. It is long enough to pass along the nasal floor or middle meatus toward the sphenoethmoidal recess while avoiding the bulk of a longer skull base punch. The straight shaft keeps the working line predictable under a 0 degree or angled endoscope. The distal hooked jaw is the cutting component used to capture bony ostial margins and remove them in small bites. The fixed foot supports the target edge so the bite occurs at the intended rim instead of sliding along mucosa. The screw joint provides the mechanical fulcrum for handle compression, while the spring handle returns the instrument to the open position between bites. The pistol-style handle helps the surgeon maintain wrist alignment during posterior nasal work. Selection of this size is based on nostril access, endoscope angle, sphenoid face depth, and the extent of ostial enlargement required.

German Steel, Finish, Sterilization, and Compliance

German stainless steel supports the strength, corrosion resistance, and repeatable cutting performance required for reusable sinus punch forceps. The satin, dull, or mirror finish options allow purchasing teams to match existing ENT instrument trays; satin and dull finishes reduce light reflection under endoscopic illumination, while mirror polish supports fast surface inspection after cleaning. After use, the instrument should pass through decontamination, manual brushing of the distal jaw and shaft windows, rinsing, drying, functional jaw inspection, packaging, and steam autoclave sterilization according to operating room protocol. The spring, screw joint, and jaw recess require direct inspection because these areas collect bone dust, mucosa, and blood during sphenoidotomy. CE marking, ISO 13485 manufacturing controls, and FDA procurement context support hospital, clinic, and distributor purchasing requirements. The Class I reusable classification, one-year warranty, MOQ of one piece, OEM availability, and return or replacement service make PS-8503 suitable for ENT tray stocking and tender documentation.

SKU	PS-8503
Product Name	Hajek Koffler Sphenoid Punch Forceps
Price	$77.00 USD
Size/Gauge Variants	14 cm - 5 1/2"
Instrument Category	ENT sphenoid punch forceps
Procedure	Sphenoidotomy, functional endoscopic sinus surgery, posterior ethmoidectomy support, transsphenoidal exposure
Material	German stainless steel
Finish	Satin, dull, mirror
Sterilization	Reusable instrument for standard hospital steam autoclave processing after cleaning and inspection
Instrument Classification	Class I
Reusable	Yes
Certifications	CE, ISO 13485, FDA
Warranty	1 year
MOQ	1 piece
OEM / Custom Orders	Available for distributor and institutional procurement
After-Sale Service	Return and replacement support

How are Hajek Koffler Sphenoid Punch Forceps different from Kerrison rongeurs?
Hajek Koffler Sphenoid Punch Forceps are shaped for transnasal sphenoid and posterior sinus work. Kerrison rongeurs are commonly used in spine, neurosurgery, and bony decompression fields where a footplate slides under bone before the bite is closed. The Hajek Koffler design uses a slender straight shaft and hooked distal punch jaw for access through the nasal corridor. Its handle geometry is suited to endoscopic sinus positioning beside suction and visualization instruments. Kerrison rongeurs are bulkier at the working end and are not optimized for sphenoethmoidal recess access. The Hajek Koffler pattern is selected when the target is the sphenoid ostium, anterior sphenoid wall, or small posterior nasal bony ledge.

Why is the 14 cm size selected for sphenoid sinus surgery?
The 14 cm length gives the surgeon reach from the nostril to the sphenoid face without excessive external instrument length. It is appropriate for posterior nasal cavity work through the middle meatus or sphenoethmoidal recess. The size supports controlled bites around the sphenoid ostium after the opening has been identified. A longer punch can feel less responsive in compact endoscopic fields, while a shorter one can limit access to the posterior sinus. Hajek Koffler Sphenoid Punch Forceps PS-8503 provide a practical working distance for adult FESS trays. Selection depends on nasal depth, endoscope angle, turbinate position, and the planned extent of sphenoidotomy.

What do CE, ISO 13485, and FDA mean for procurement?
CE marking supports medical device purchasing requirements in regulated markets. ISO 13485 indicates that the instrument is produced under a medical device quality management framework. FDA procurement context supports documentation review for hospitals, clinics, and distributors that require device compliance records. Hajek Koffler Sphenoid Punch Forceps are listed as a reusable Class I surgical instrument. The SKU PS-8503, size 14 cm - 5 1/2", and price of $77.00 USD give procurement teams clear catalog data. The one-year warranty, MOQ of one piece, and return or replacement support help with ENT tray purchasing and replacement planning.

How is the spring handle used intraoperatively?
The spring handle reopens the jaws after each punch closure, allowing repeated controlled bites without manual resetting. During sphenoidotomy, the surgeon positions the hooked jaw on the ostial margin and compresses the handle to remove a small segment of bone or mucosa. The spring return then opens the tip for the next bite while the shaft remains aligned in the nasal corridor. This action supports stepwise enlargement rather than forceful avulsion. The screw joint provides the lever point that transfers hand pressure to the distal cutting jaw. In Hajek Koffler Sphenoid Punch Forceps, this mechanism is important when working near the skull base, optic canal region, and carotid prominence.

How should sterile processing teams handle this punch?
The distal jaw, shaft openings, spring handle, and screw joint should be cleaned carefully after sinus surgery. Bone dust, mucosa, and blood can collect around the punch recess and reduce cutting performance if not removed. Manual brushing and visual inspection should occur before packaging for sterilization. The instrument can be processed as a reusable German stainless steel device through standard steam autoclave workflow after cleaning and drying. Operating room teams should check jaw closure and spring return before placing it back into the ENT tray. Hajek Koffler Sphenoid Punch Forceps can be ordered as a single replacement instrument or included in distributor sinus surgery sets.
