PEAK SURGICAL
SKU:PS-VLFK-00156
Couldn't load pickup availability
Veterinary Large Fragment Kit 4.5/6.5 mm by Peak Surgicals is a comprehensive orthopedic instrument and implant system intended for professional veterinary surgical settings. Identified by SKU PS-VLFK-00156, the kit combines instruments, drill guides, taps, forceps, plates, cortical screws and cancellous screws used within 4.5 mm and 6.5 mm large-fragment fixation workflows.
The current configuration includes instruments for drilling, depth measurement, countersinking, tapping, plate contouring, fracture reduction, screw handling and implant organization. It is intended for trained veterinary surgeons and qualified veterinary orthopedic professionals.
This kit is configured around 4.5 mm cortical and 6.5 mm cancellous screw systems. Its combination of drill bits, bushings, taps, reduction forceps, retractors, elevators and screw-handling instruments supports the preparation and placement stages associated with veterinary plate-and-screw fixation procedures.
The selection of implants, drill sizes, plates and instruments must be based on the animal’s anatomy, fracture configuration, operative plan and the veterinary surgeon’s professional judgment. No specific clinical outcome is implied.
The drilling section includes a 3.2 mm neutral and loaded drill guide, 3.2 × 150 mm drill bits, 4.5 × 150 mm drill bits and drill bushings for 3.2/4.5 mm and 4.5/6.5 mm configurations. HA taps in 4.5 mm and 6.5 mm sizes are also listed.
A hexagonal screwdriver with an SW 3.5 driver nut, screw-holding forceps, a depth gauge and an 8-size countersink drill are included according to the current listing. Units for the depth-gauge specification and certain instrument sizes should be confirmed before ordering.
The kit includes standard, curved and self-centering reduction forceps for instrument-assisted alignment and stabilization during veterinary orthopedic procedures. A Hohmann retractor and flat and round periosteal elevators are listed for surgical exposure and periosteal handling.
Plate-bending forceps are included for contouring compatible plates when clinically required. Implant contouring and instrument use must follow the applicable implant-system instructions and established veterinary surgical protocols.
| Instrument or Component | Listed Specification |
|---|---|
| Neutral and loaded drill guide | 3.2 mm |
| Depth gauge | Listed as 30; measurement unit requires confirmation |
| Countersink drill | Listed as 8; measurement unit requires confirmation |
| Broken screw extractor | Included |
| Plate-bending forceps | Listed as 2 × 1 configuration |
| Flat periosteal elevator | Listed size 16; measurement unit requires confirmation |
| Round periosteal elevator | Listed size 8; measurement unit requires confirmation |
| Hexagonal screwdriver with driver nut | SW 3.5 |
| Hohmann retractor | Listed as 2 × 1 configuration |
| HA tap | 4.5 mm |
| HA tap | 6.5 mm |
| Skid extractor or exteriorizer | SW 3.5; exact instrument name requires confirmation |
| Reduction forceps | Included |
| Curved reduction forceps | Included |
| Self-centering forceps | Two |
| Drill bits | 3.2 × 150 mm, two pieces |
| Drill bits | 4.5 × 150 mm, two pieces |
| C-shaped guide | Listed as 3 × 1 configuration |
| Drill bushing | 3.2/4.5 mm |
| Drill bushing | 4.5/6.5 mm |
| Screw-holding forceps | Included |
| Storage case | Case with 4.5/6.5 mm screw rack |
| Implant Category | Current Listing Details |
|---|---|
| Bone plates | Three plates in assorted sizes |
| Plate hole range | 5 to 14 holes |
| Listed plate length range | 92 to 254 mm |
| Cortical screws | HA 4.5 mm |
| Cancellous screws | 6.5 mm |
| Total bone screws | 40 screws across the listed cortical and cancellous categories; exact size distribution requires confirmation |
| Product Name | Veterinary Large Fragment Kit 4.5/6.5 mm |
|---|---|
| Brand | Peak Surgicals |
| SKU | PS-VLFK-00156 |
| Product Type | Veterinary Orthopedic Instrument and Implant Kit |
| System Sizes | 4.5 mm and 6.5 mm |
| Screw Types | 4.5 mm cortical and 6.5 mm cancellous screws |
| Primary Professional Application | Veterinary orthopedic plate-and-screw fixation workflows |
| Storage | Instrument case and 4.5/6.5 mm screw rack are listed |
| Material | Exact material for the instruments, plates and screws must be confirmed for this SKU |
| Finish | Not stated on the current product page |
| Sterile Supply Status | Not stated; confirm before use |
| Reprocessing Instructions | Obtain the applicable instructions for use before cleaning or sterilization |
| Intended Users | Veterinary surgeons and qualified veterinary orthopedic professionals |
| Quality Documentation | Peak Surgicals operates under ISO 13485 and supplies CE-marked and FDA-compliant product ranges; request documentation applicable to this SKU and destination market |
Peak Surgicals uses German-forged stainless steel for its surgical instrument range. However, the current product page does not separately identify the material or finish of the instruments, plates and screws supplied with this particular kit.
Before procurement, confirm the material specification for each product group, including whether the plates and screws are manufactured from stainless steel or another implant material. Also obtain the applicable cleaning, inspection and sterilization instructions. The kit should not be described as sterile or reusable until these details are verified for the supplied configuration.
This kit is intended for professional veterinary use. The surgeon must select the appropriate plate, screw size, drill guide, drill bit and tap according to the operative plan and applicable implant-system instructions.
Before every procedure, verify that all instruments and implants are present, correctly sized and compatible. Inspect instruments for wear, deformation, corrosion, damaged cutting surfaces and impaired function. Do not use any component that fails the facility’s inspection requirements.
What is the Veterinary Large Fragment Kit used for?
It is an orthopedic instrument and implant kit configured for veterinary plate-and-screw fixation workflows using 4.5 mm cortical and 6.5 mm cancellous screws.
Which screw sizes are included?
The current listing identifies HA 4.5 mm cortical screws and 6.5 mm cancellous screws. It states a total of 40 screws but does not provide the quantity of each length or type.
How many plates are supplied?
Three plates are listed. The stated range covers 5 to 14 holes and lengths from 92 to 254 mm, but the exact size of each supplied plate should be confirmed.
Are drill bits included?
Yes. The listing includes two 3.2 × 150 mm drill bits and two 4.5 × 150 mm drill bits.
Does the kit include a storage case?

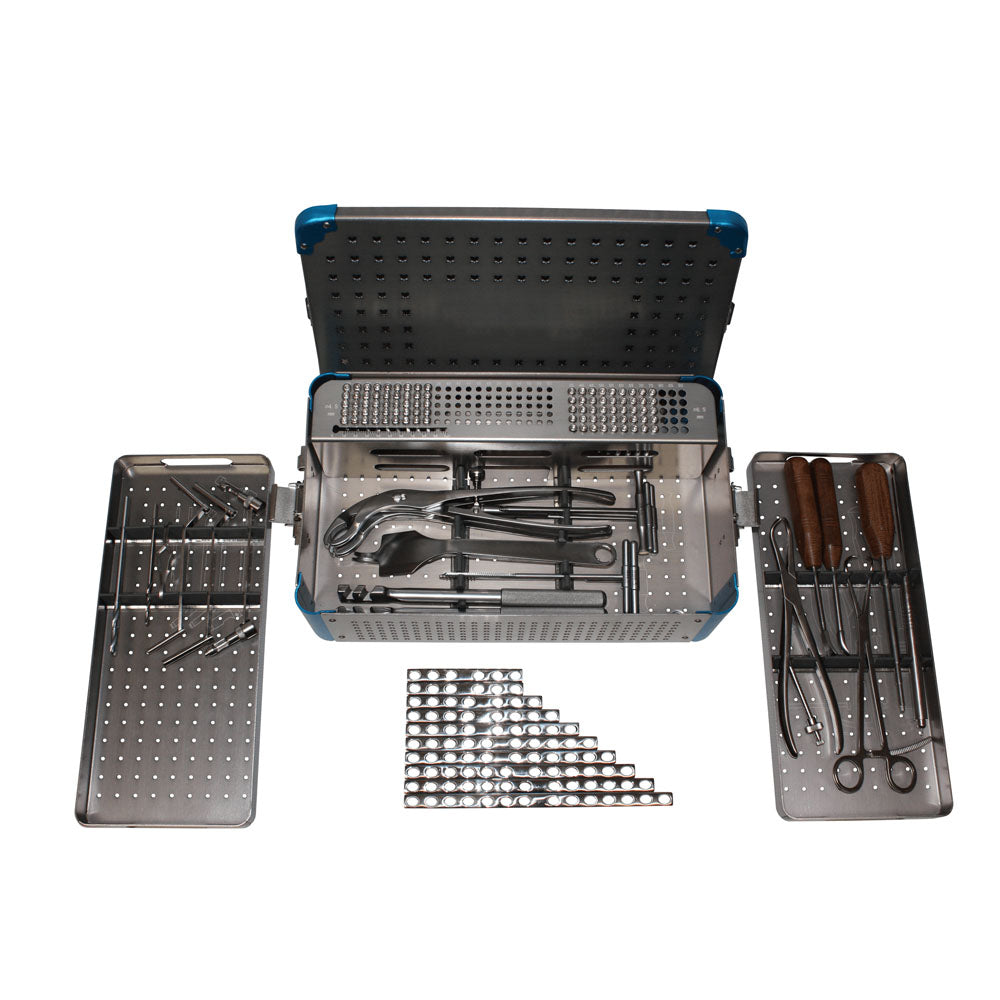

Yes. A case with a 4.5/6.5 mm screw rack is included according to the current description, and the product gallery shows organized instrument and implant cases.
Can this kit be used with another manufacturer’s implants?
Cross-brand compatibility is not stated. Confirm screw-drive geometry, plate specifications, drill diameters, thread profiles and instrument compatibility before combining systems.
What material is used?
The current page does not specify the material of the instruments, plates or screws. Request the SKU-specific material specification before ordering or publishing an implant-material claim.
Is the kit supplied sterile?
The sterile supply status is not stated. Buyers should confirm the supplied condition and obtain the applicable instructions for use and reprocessing information.
Use SKU PS-VLFK-00156 when ordering or requesting product documentation. Before completing procurement, confirm the exact plate sizes, screw lengths and quantities, instrument measurements, material, finish, sterile supply status, storage-case configuration, warranty and destination-market documentation.
