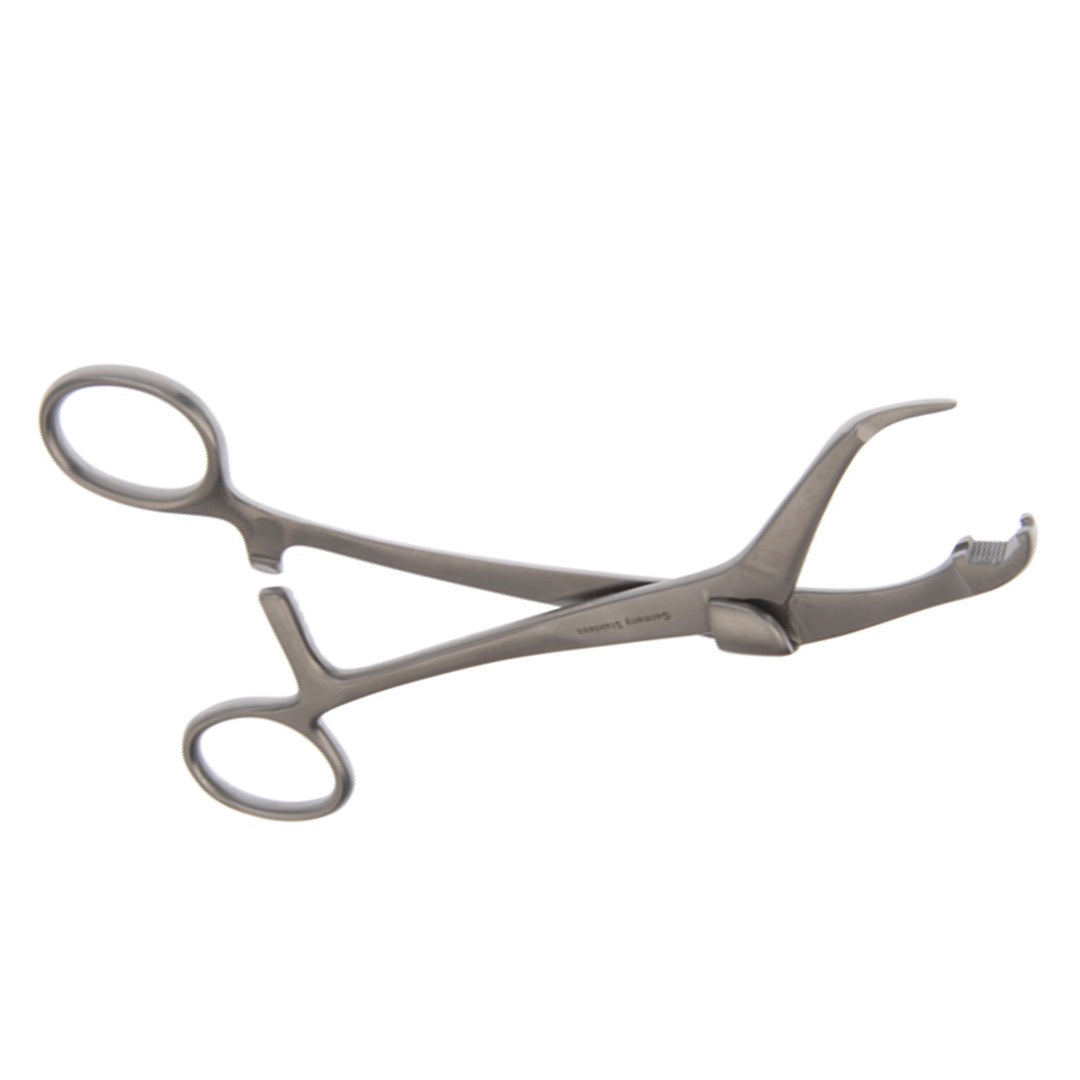

Verbrugge Forceps – 10.5 in Long Ratchet for Bone Holding and Fracture Reduction

Verbrugge Forceps, SKU PS-000047 and part number gS 46.2240, are reusable orthopedic bone-holding and reduction forceps manufactured from German surgical stainless steel for controlled stabilization, rotation, reduction, and compression of bone during fracture and reconstructive procedures. The instrument measures 10 1/2 in overall and incorporates a long ratchet locking mechanism that maintains the selected jaw position after the surgeon establishes appropriate purchase around the exposed bone. The documented configuration provides a maximum opening of approximately 48 mm with the ratchet engaged, supporting use around medium and larger osseous segments while maintaining controlled manual compression. Its long forceps body provides leverage and working reach, while the opposed bone-holding jaws are designed to secure the targeted segment during alignment and fixation. Verbrugge Forceps are used during open fracture reduction, plate fixation, osteotomy, corrective reconstruction, and other orthopedic procedures where bone must remain stable while drilling, measuring, plate positioning, or screw insertion proceeds. Orthopedic trauma surgeons and reconstructive teams use this pattern where sustained bone control is required without continuous hand compression.

Long Ratchet Locking Mechanism and Bone-Holding Control

The defining mechanical feature of the Verbrugge Forceps is its long ratchet, which converts manual jaw closure into a maintained holding position. After the opposed working jaws are placed around accessible bone surfaces, the surgeon gradually closes the handles until an appropriate level of contact and compression is achieved. Engagement of the long ratchet then retains that jaw relationship, reducing the need for continuous hand pressure while reduction or fixation proceeds. The mechanism is particularly useful when the surgeon must maintain alignment while drilling, measuring screw length, contouring a plate, positioning implants, or assessing reduction. The gS 46.2240 configuration provides a documented maximum opening of 48 mm with the ratchet engaged, giving the instrument useful capacity for a range of orthopedic bone dimensions. Ratchet position should be advanced only to the level needed for secure fixation because excessive compression can damage cortical surfaces or compromise fragile fragments. The lock can be released when repositioning is required, allowing the jaws to be opened and reseated. Control therefore depends on jaw placement, progressive ratchet engagement, bone quality, and direct assessment of the reduction rather than maximum clamp pressure.

Fracture Reduction, Rotation and Fixation Workflow

During open reduction and internal fixation, Verbrugge Forceps can be positioned around exposed fracture fragments after appropriate soft-tissue dissection has created a safe path to the bone. The surgeon uses the instrument to hold and stabilize one or more segments while restoring length, alignment, and rotational orientation. Once the reduction is established, the long ratchet can maintain the selected position while fluoroscopic or direct visual assessment confirms fragment relationship. The forceps may remain in place during plate positioning, preliminary fixation, drilling, depth measurement, or insertion of selected screws when its location does not interfere with the implant pathway. Rotational control is particularly useful when a fragment must be manipulated before definitive fixation, while controlled compression can assist approximation of compatible fracture surfaces. The instrument can also support osteotomy and reconstructive workflows where a divided bone segment requires temporary stabilization during correction and fixation. Jaw placement must avoid unnecessary soft-tissue entrapment and should preserve access to the planned plate or screw trajectory. The clamp should be repositioned rather than over-tightened if secure purchase cannot be achieved at the initial contact point.

gS 46.2240 10.5-Inch Length and 48 mm Opening

Part number gS 46.2240 identifies the exact Verbrugge Forceps configuration supplied through Peak Surgicals under SKU PS-000047. This model measures 10 1/2 in overall, uses a long ratchet, and has a documented maximum opening of approximately 48 mm with the ratchet engaged. The combination of length and jaw capacity provides working reach for open orthopedic procedures while accommodating bone segments larger than those handled by compact Verbrugge patterns. The established Verbrugge family also includes a 7 in ratchet model, a 10 in long-ratchet model, an 11 in long-ratchet model, and several self-centering configurations. These instruments should not be treated as interchangeable because overall length, locking geometry, opening capacity, and jaw behavior affect handling and procedural selection. The gS 46.2240 model should remain specifically associated with its 10.5-inch long-ratchet configuration in procurement records. Selection should consider bone diameter, operative depth, fracture pattern, available soft-tissue corridor, implant position, and the level of temporary compression required. The largest possible opening or highest ratchet engagement is not automatically the clinically appropriate setting.

German Stainless Steel, Reprocessing and Procurement Standards

German surgical stainless steel provides the strength, corrosion resistance, and dimensional stability required for reusable bone-holding forceps subjected to repeated clamping, release, cleaning, and sterilization cycles. Reprocessing should begin promptly after surgery so blood, marrow, bone residue, and other contamination do not dry within the jaws, box-lock region, ratchet teeth, handles, or surface transitions. The instrument should be opened during cleaning so all contact areas and moving interfaces are accessible. Thorough rinsing and complete drying should follow before functional inspection. Sterile-processing personnel should confirm smooth opening and closing, reliable long-ratchet engagement and release, jaw alignment, and absence of corrosion, cracks, deformation, or damage to the locking teeth. The ratchet should maintain the intended position without slipping under normal manual testing. Lubrication of moving joints should follow the facility's validated instrument-maintenance procedure where applicable. Terminal steam sterilization should follow validated protocols for reusable stainless steel surgical instruments. Peak Surgicals supports CE and ISO 13485 procurement documentation, while applicable FDA-related records can be retained within hospital and distributor supplier-qualification files.

How do Verbrugge Forceps differ from self-centering bone holding forceps?
Verbrugge Forceps gS 46.2240 use a conventional opposed-jaw design with a long ratchet that maintains the closure selected by the surgeon. Self-centering Verbrugge patterns use different jaw mechanics intended to adapt their position around the bone as the handles are closed. The long-ratchet model gives the operator direct control over jaw placement before progressively engaging the lock. This can be useful when a specific fragment needs to be held, rotated, reduced, or compressed during fixation. Self-centering patterns may be preferred when symmetric centering around a bone segment is the primary requirement. Selection should therefore reflect fracture geometry, desired jaw behavior, operative access, and the type of temporary stabilization required.

Why select the 10.5-inch Verbrugge Forceps with a 48 mm opening?
The 10 1/2 in overall length provides working reach for open orthopedic reduction while allowing the handles and ratchet to remain accessible outside the immediate bone interface. A maximum opening of approximately 48 mm with the ratchet engaged accommodates a useful range of medium and larger bone segments. Verbrugge Forceps PS-000047 therefore provide greater capacity than compact bone clamps intended for small fragments. The long ratchet also permits the selected reduction or compression to remain maintained without constant hand pressure. The full 48 mm capacity should not automatically be used if a smaller jaw position provides secure purchase. Appropriate selection depends on bone diameter, fracture configuration, operative depth, bone quality, and planned implant positioning.

What do CE, ISO 13485 and FDA references mean for procurement?
Peak Surgicals displays CE, FDA, and ISO-related information for the Verbrugge Forceps and supports ISO 13485 procurement documentation. ISO 13485 addresses quality-management processes associated with medical-device manufacturing. CE documentation supports conformity requirements within applicable medical-device markets. FDA AccessGUDID identifies exact model gS 46.2240 as commercially distributed Verbrugge bone holding forceps with a 10 1/2 in length and long ratchet. A GUDID record should not be represented as individual FDA approval of PS-000047. Hospitals and distributors can retain the SKU, part number, supplier certificates, regulatory records, and purchasing documentation within their vendor-qualification files.

How does the long ratchet control bone compression?
The long ratchet engages progressively as the handles of the Verbrugge Forceps are closed. Each engaged position maintains a corresponding jaw relationship without requiring the surgeon to continuously squeeze the handles. This permits the operator to increase closure gradually while observing bone contact and fracture alignment. Once sufficient stabilization is achieved, the selected ratchet position can be maintained while reduction or fixation proceeds. Additional ratchet engagement increases jaw closure but should not be used simply to maximize compression. The mechanism should be released and the forceps repositioned whenever jaw placement or reduction is unsatisfactory rather than compensating with excessive force.

How should hospitals order and reprocess the Verbrugge Forceps?
Hospitals should order these Verbrugge Forceps using SKU PS-000047 and part number gS 46.2240 together with the 10 1/2 in length and long-ratchet specification. Peak Surgicals currently lists the instrument at $68.20 and provides a 30-day money-back guarantee on eligible purchases. This exact model should not be confused with Peak's self-centering or large-and-small Verbrugge product pages. Following surgery, the jaws, joint, ratchet teeth, handles, and all surface transitions should be cleaned promptly with the instrument opened. Cleaning should be followed by thorough rinsing, complete drying, and inspection of jaw alignment and locking performance. Final sterilization should follow the healthcare facility's validated reusable stainless steel instrument process before PS-000047 returns to the orthopedic bone-holding and fracture-reduction tray.
